lnstallation
Location
Requirements
Carefully
select the location for
the unit and its associated
guns
and
hoses.
Make
sure that the location meets the following
requirements:
a
There is
enough room to open
the tank lid, open the electrical
enclosure, remove the
filter assembly, remove
the
pump
enclosure,
and make
electrical connections for
the hoses. For unit
dimensions
and recommended
clearances, refer
to Dimensions in
lhe
Description
section of
this manual.
a
a
An
operator can reach
all
controls.
Maintenance
personnel
have room
to
service
and repair the unit.
lnstallers
can route the hoses without bending
them. The minimum
bend radius for hoses
is shown in Figure A
3-7.
The
mounting surface can
support the weight of
the unit when the unit
is filled
with adhesive. Refer
lo Specificatlons in lhe Description
section
of this manual.
The
mounting surface is level.
The mounting
surface is raised
at
least
152 mm
(6
in.) for
draining
adhesive.
See Figure A 3-1.
The
drain valve
projects
over the edge of the mounting
surface.
152 mm
(6.0
in.)
413068sA

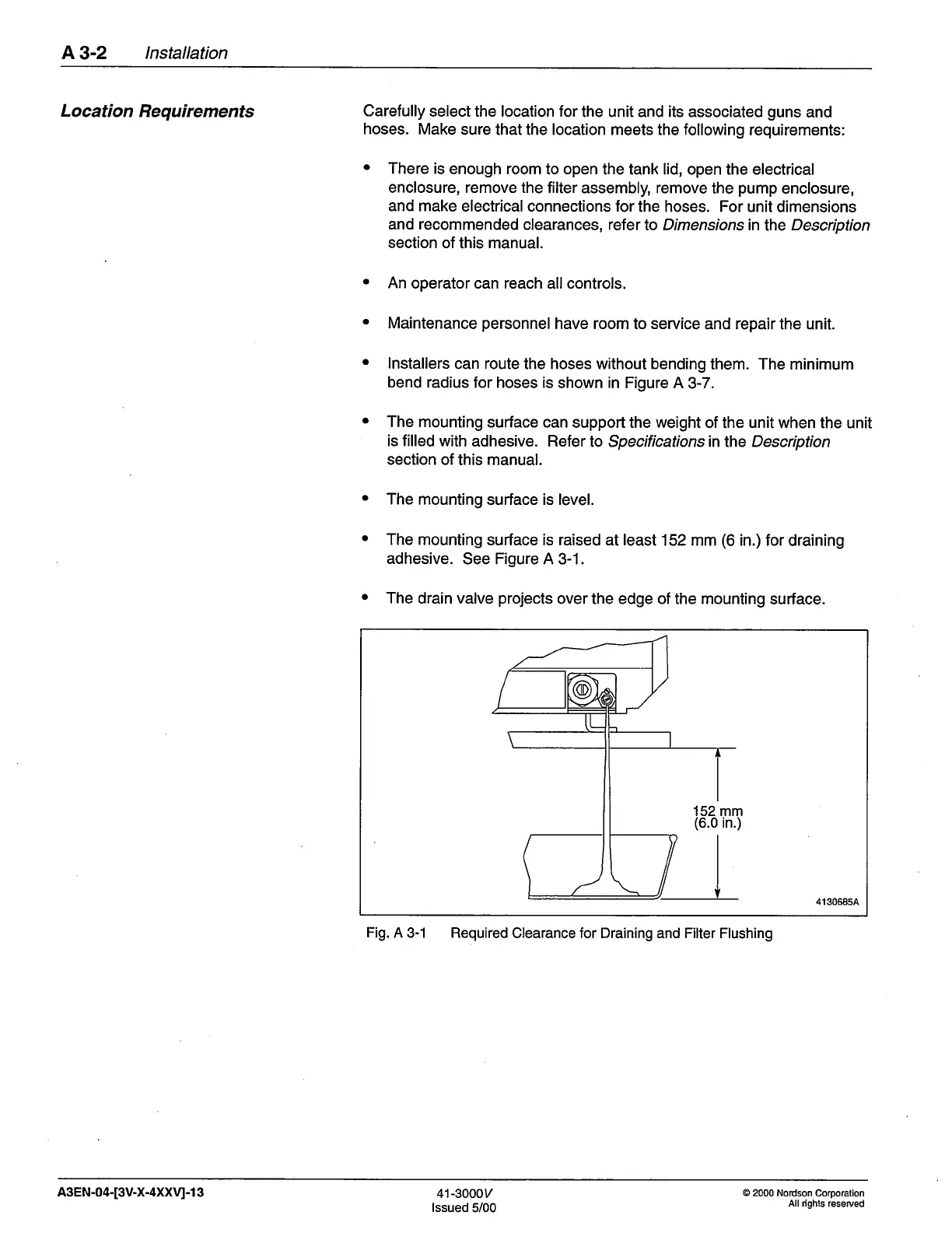

Fig.
A 3-1 Required
Clearance for Draining and Filter Flushing
a
a
a
a
