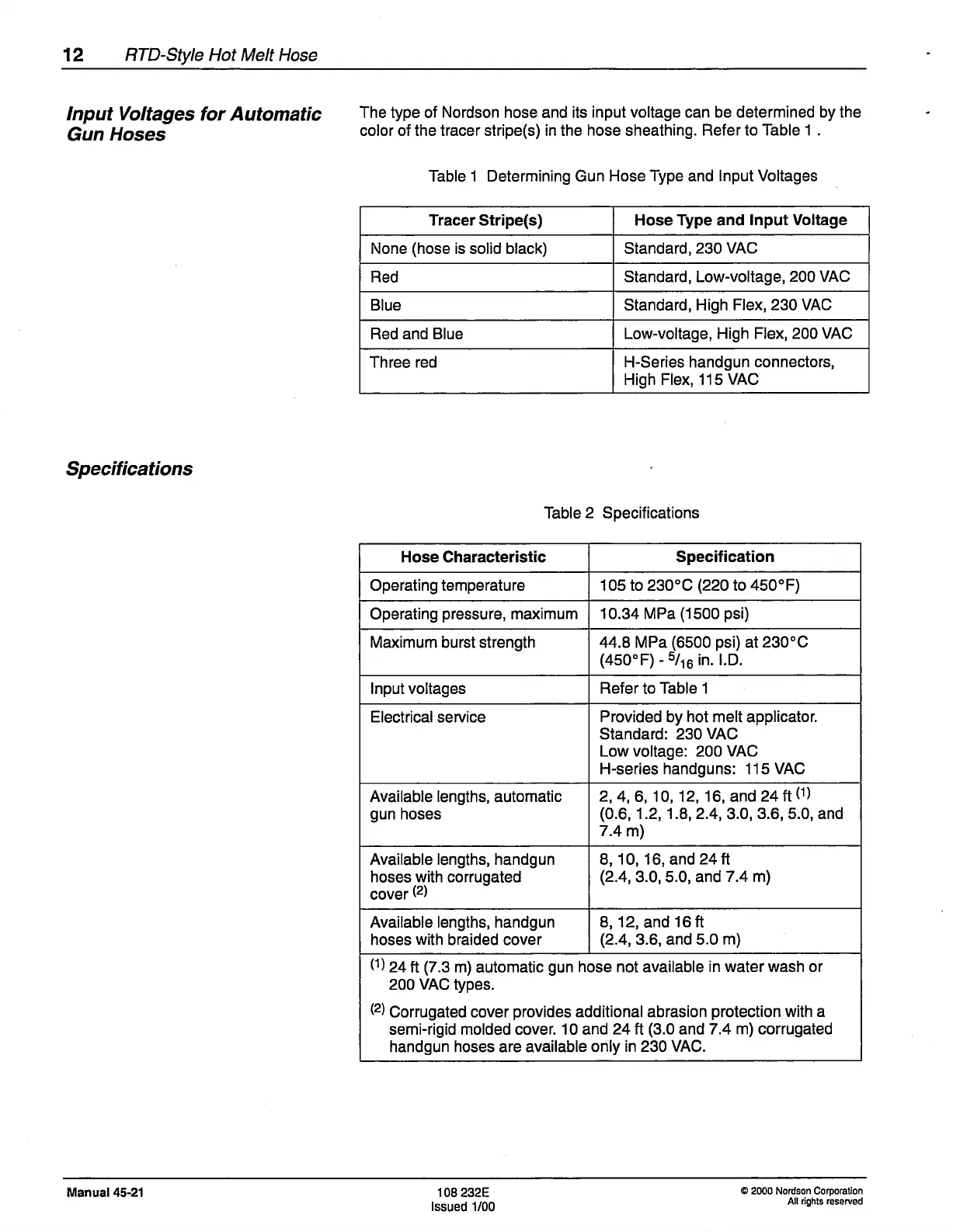

12
RTD-Style Hot Melt Hose
lnput Voltages
for Automatic
Gun
Hoses
Specifications
The type of
Nordson
hose and its
input voltage can be determined by the
color of the tracer stripe(s) in the hose sheathing.
Refer to Thble 1 .
Table 1 Determining Gun
Hose Type and lnput Voltages
Table
2
Specifications
Tracer Stripe(s) Hose Type and
lnput Voltage
None
(hose
is solid black) Standard,230
VAC
Red Standard, Low-voltage,
200 VAC
Blue Standard, High
Flex, 230 VAC
Red
and
Blue Low-voltage, High
Flex,200 VAC
Three red H-Series handgun
connectors,
High Flex, 115
VAC
Hose Characteristic
Specification
Operating temperature 105 to 230"C
(22Oto
450'F)
Operating
pressure,
maximum
10.34 MPa
(1500 psi)
Maximum burst strength 44.8 MPa
(6500 psi)
at
230'C
(450'F)
-
5/16
in. l.D.
lnput voltages
Refer
to
Table 1
Electrical
service
Provided by hot melt applicator.
Standard: 230
VAC
Low voltage: 200 VAC
H-series handguns: 115 VAC
Available lengths,
automatic
gun
hoses
2, 4, 6, 10, 12, 16, and
24 11(r.)
(0.6,
1 .2,',|.8, 2.4,
3.O,
3.6, 5.0, and
7.4
m)
Available lengths, handgun
hoses with corruoated
cover
(2)
8,10,16, and24fi
(2.4,3.0,5.0,
and
7.4 ml
Available lengths, handgun
hoses
with
braided cover
8, 12,
and
16
ft
(2.4,
3.6, and 5.0 m)
(1)
24ft
(7.3
m)
automatic
gun
hose not available
in water wash or
200
VAC
types.
(2)
Corrugated cover
provides
additional abrasion
protection
with a
semi-rigid molded cover. 10 and
24
ft
(3.0
and7.4 m) corrugated
handgun hoses are available
only in 230 VAC.
Manual 45-21
108232E
lssued 1/00
@
2000 Nordson Corporation
All rights ressrved
