Nordson 3100V Series Customer Product Manual

Description
A2-7
Pump
The
pump
transfers
the melted adhesive from
the tank to the dispensing
guns.
With its
dual-acting design,
the
piston pump
delivers
adhesive to
the
product
or
package
surface
on both the upstroke
and the downstroke.
The
pump
has three main
parts:
.
an
air
motor
.
a hydraulic
section
.
an actuator
Refer
to
Specitications in this section for the
pump
delivery rate and other
key
information about
the
pump.
1
3
2
at3n6so

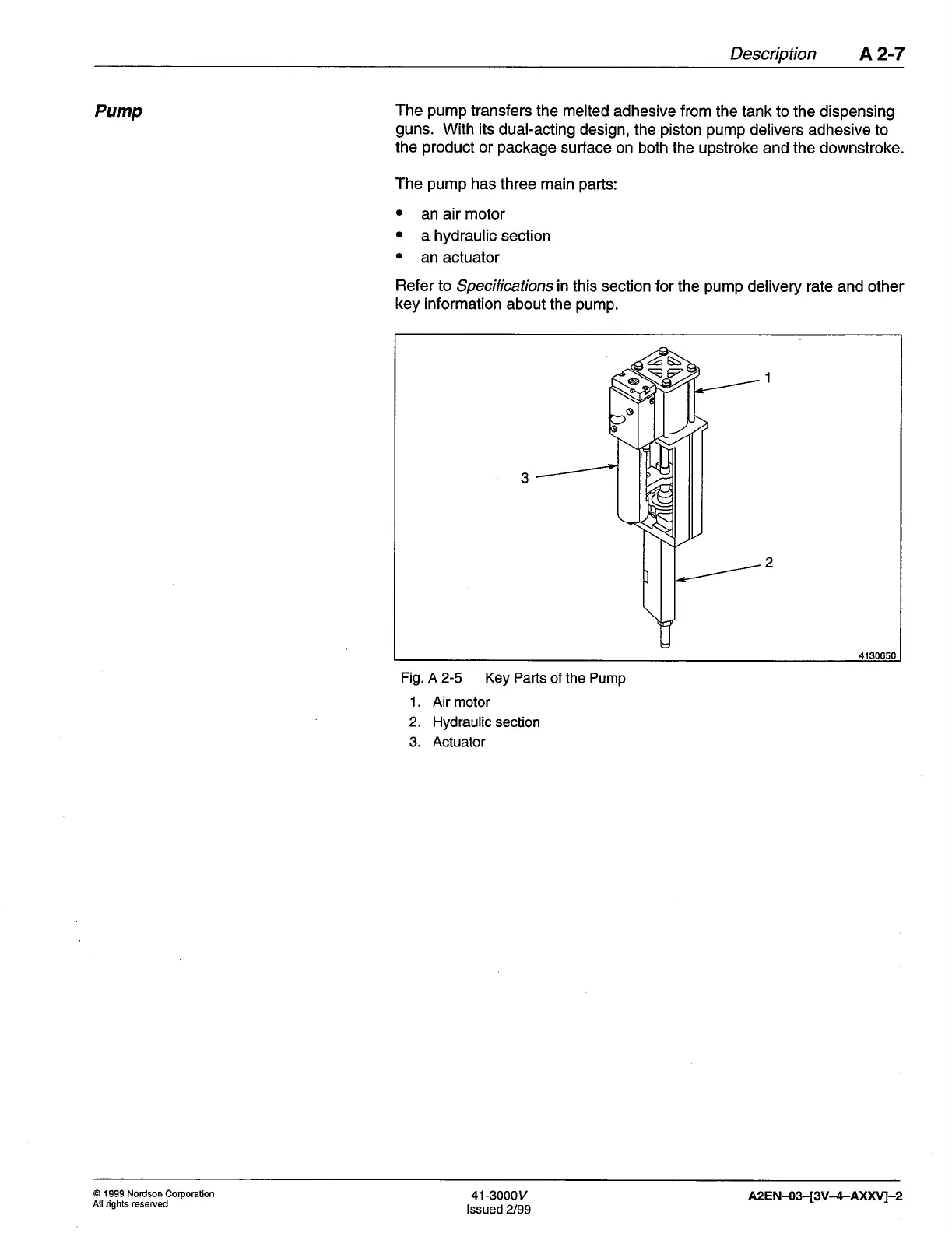

Fig. A 2-5
Key Pafts
of the
Pump
1. Air motor
2.
Hydraulic section
3. Actuator
@
1999 Nordson
Corporation
All rights reserved
41-3000y
lssued
2/99
A2 E N-03-[3V-4-AXXVI-2
