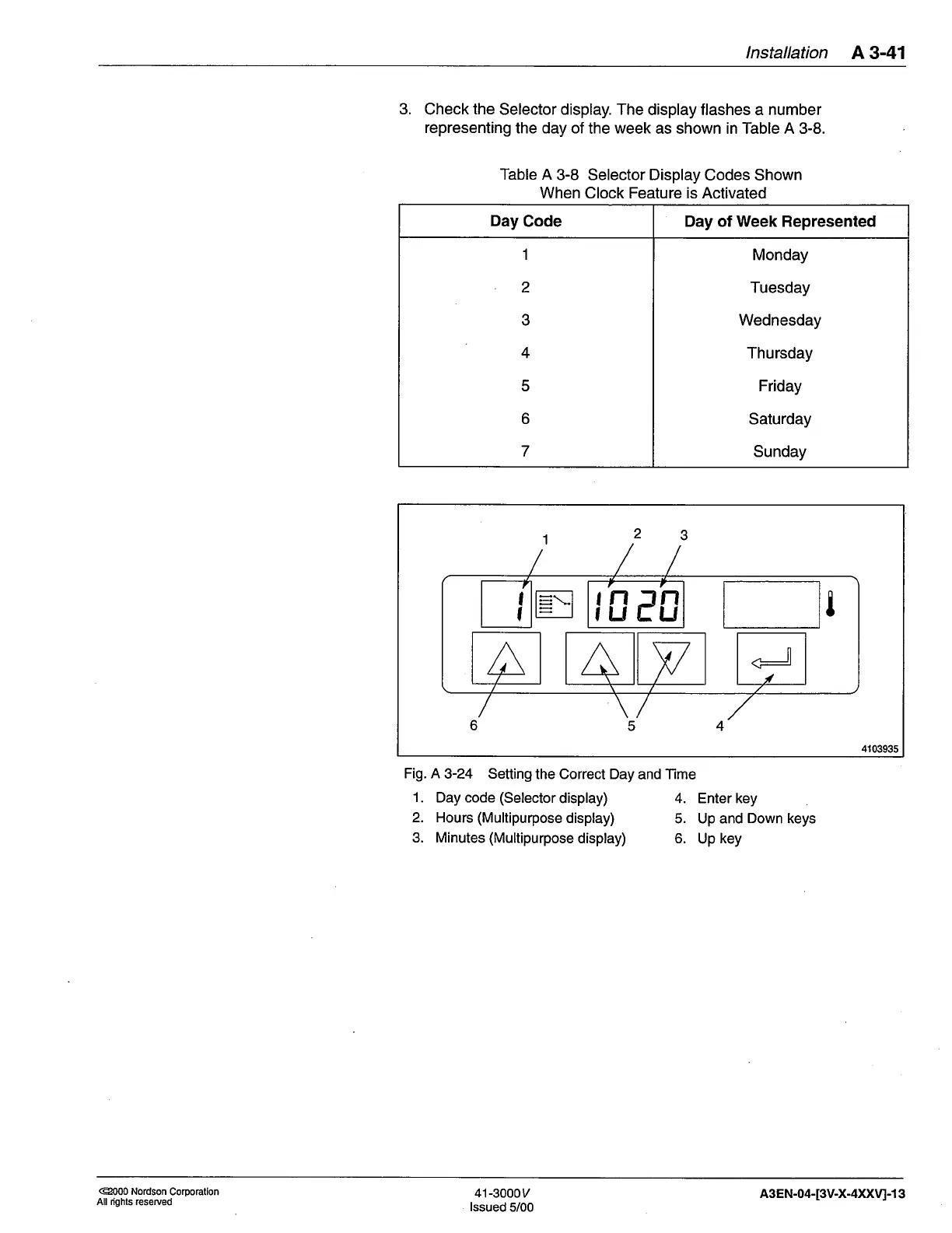

Nordson 3100V Series - Page 116

lnstallation
A 3-41
3.
Check
the
Selector display. The
display flashes a number
representing
the day of
the week as shown in Table A 3-8.
Table A
3-8 Selector Display
Codes Shown
When Clock Feature is Activated
Fig. A
3-24 Setting
the Correct Day
and
Time
1.
Day code
(Selector
display) 4. Enter key
2. Hours
(Multipurpose
display)
5. Up and
Down
keys
3. Minutes
(Multipurpose
display) 6.
Up
key
I
I ,I
t[
*J
=\
I
1
23
6 5
4
4r0393s
Day
Code Day of Week Represented
1
2
3
4
5
6
7
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
