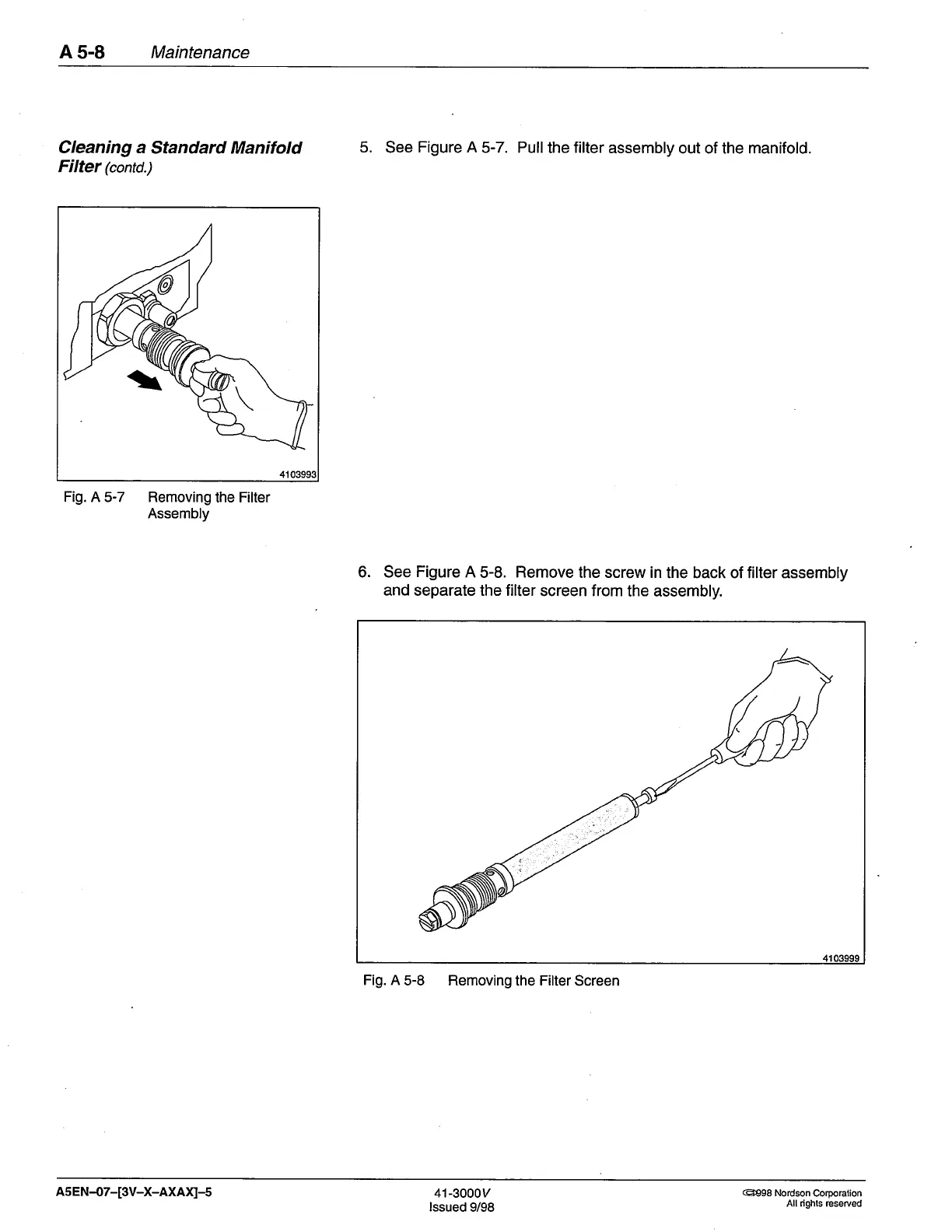

A
5-8
Maintenance
41
Fig. A 5-7 Removing
the Filter
Assembly
Cleaning a
Standard Manifold
Filter
@ontd1
5.
See
Figure A5-7.
Pull
the
filter
assembly
out of the manifold
6. See
Figure
A
5-8.
Remove
the screw in
the back of filter assembly
and separate the filter
screen from
the assembly.
Fig. A
5-8 Removing
the
Filter
Screen
As EN-07-[3V-X-AXAXI-5
41
-3000v
lssued
9/98
@998 Nordson
Corporalion
All rights reserved
