Nordson 3100V Series Customer Product Manual

Hydraulics
B 1-15

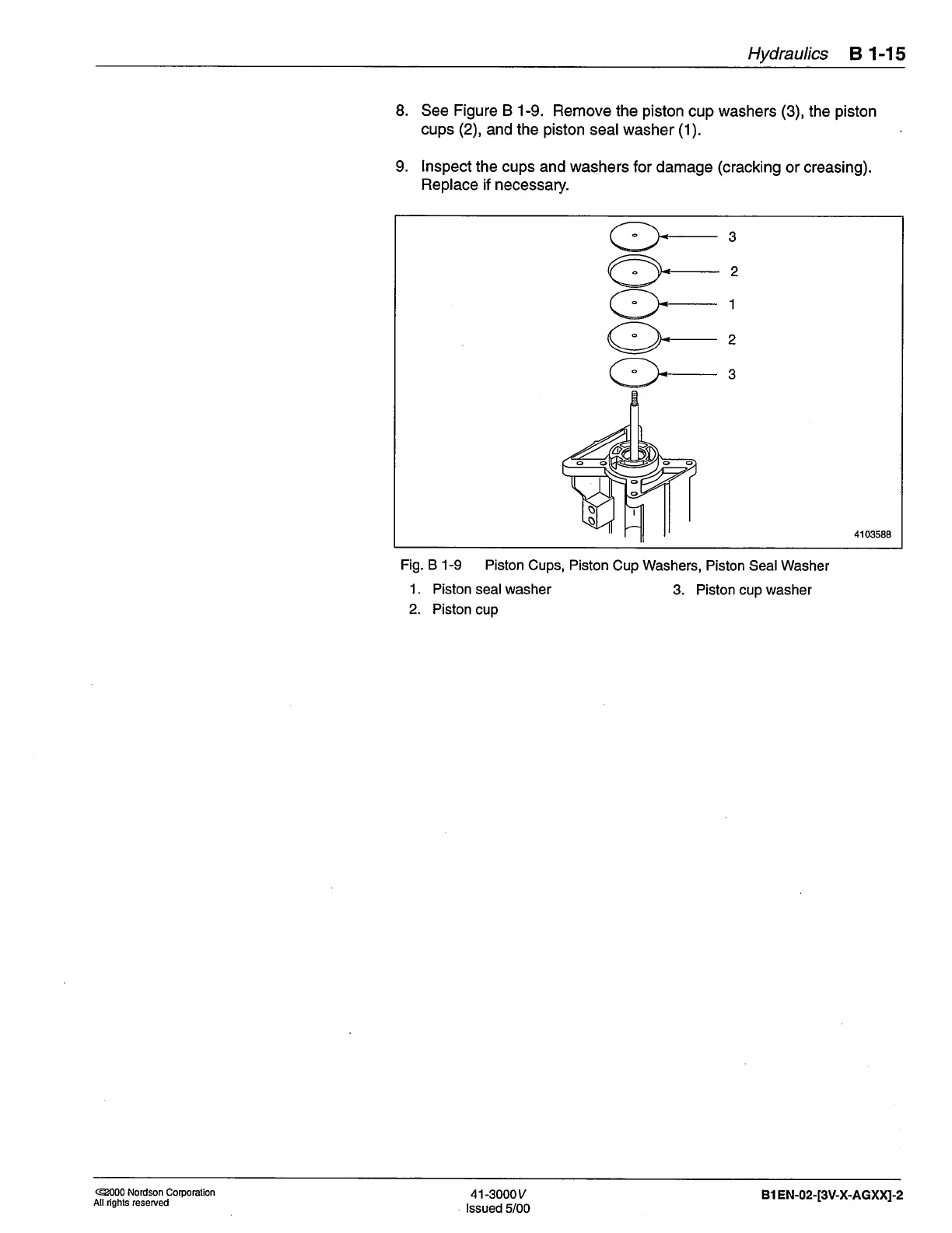

8. See Figure B 1-9.
Remove the
piston
cup washers
(3),
the
piston
cups
(2),
and the
piston
sealwasher
(1).
L
lnspect
the cups and washers
for damage
(cracking
or creasing)
Replace
if necessary.
Fig. B 1-9 Piston
Cups, Piston
Cup Washers, Piston
Seal
Washer
1. Piston
seal
washer
3. Piston cup washer
2. Piston
cup
3
2
1
2
3
4 t03588
@000 Nordson
Corporation
All ,ights reserved
41-3000v
lssued 5/00
B1 EN-02-[3V-X-AGXXI-2
