B 1-26
Hydraulics
Repositioning
or Replacing
the
Shifter
Fork
@ontd)
2
1
4130
1 39

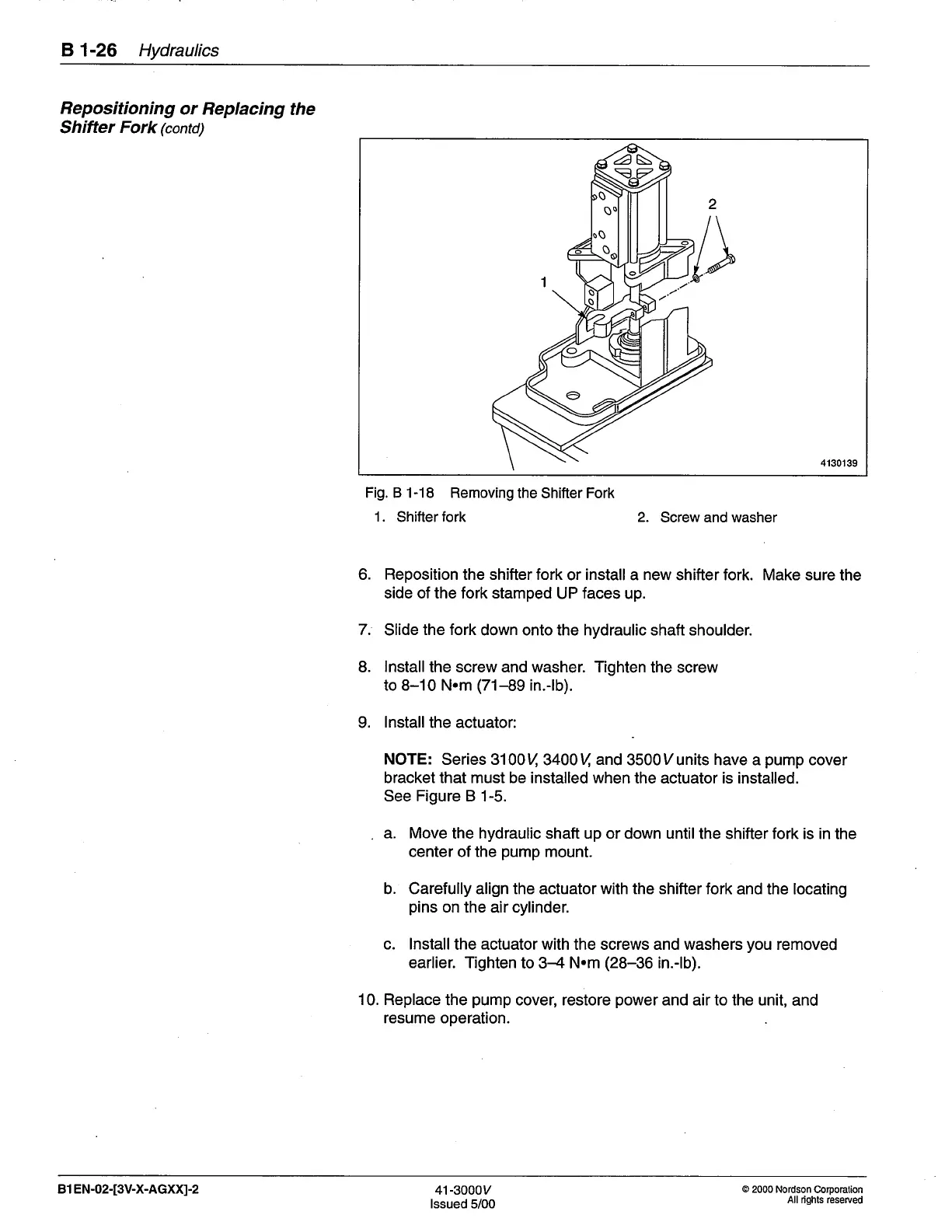

Fig. B 1-18 Removing
the Shifter Fork
1.
Shifter fork 2.
Screw and washer
6. Fleposition the shifter fork
or install a
new
shifter fork. Make sure
the
side of the fork stamped
UP
faces
up.
7.
Slide
the fork
down onto the hydraulic shaft shoulder
B.
lnstall
the screw and washer. Tighten
the screw
to 8-10 N.m
(71-89
in.-lb).
9.
lnstall
the actuator:
NOTE:
Series 3100t4
34OOV
and
3500Vunits have a
pump
cover
bracket that must be installed when
the actuator is installed.
See Figure B 1-5.
a.
Move
the hydraulic shaft up or down until
the shifter fork is in the
center of the
pump
mount.
b. Carefully align the actuator with the shifter
fork and the locating
pins
on the
air cylinder.
c. lnstall
the actuator with the screws and washers
you
removed
earlier. Tighten
to 3-4 N.m
(28-36
in.-lb).
10. Replace
the
pump
cover, restore
power
and
air
to the unit,
and
resume operation.
81 EN-02-[3V-X-AGXX]-2
41
-3000y
lssued
5/00
o
2000 Nordson
Corporation
All rights reserved
