Nordson 3100V Series Customer Product Manual

B 1-28
Hydraulics
Actuator
Removal
@ontd)

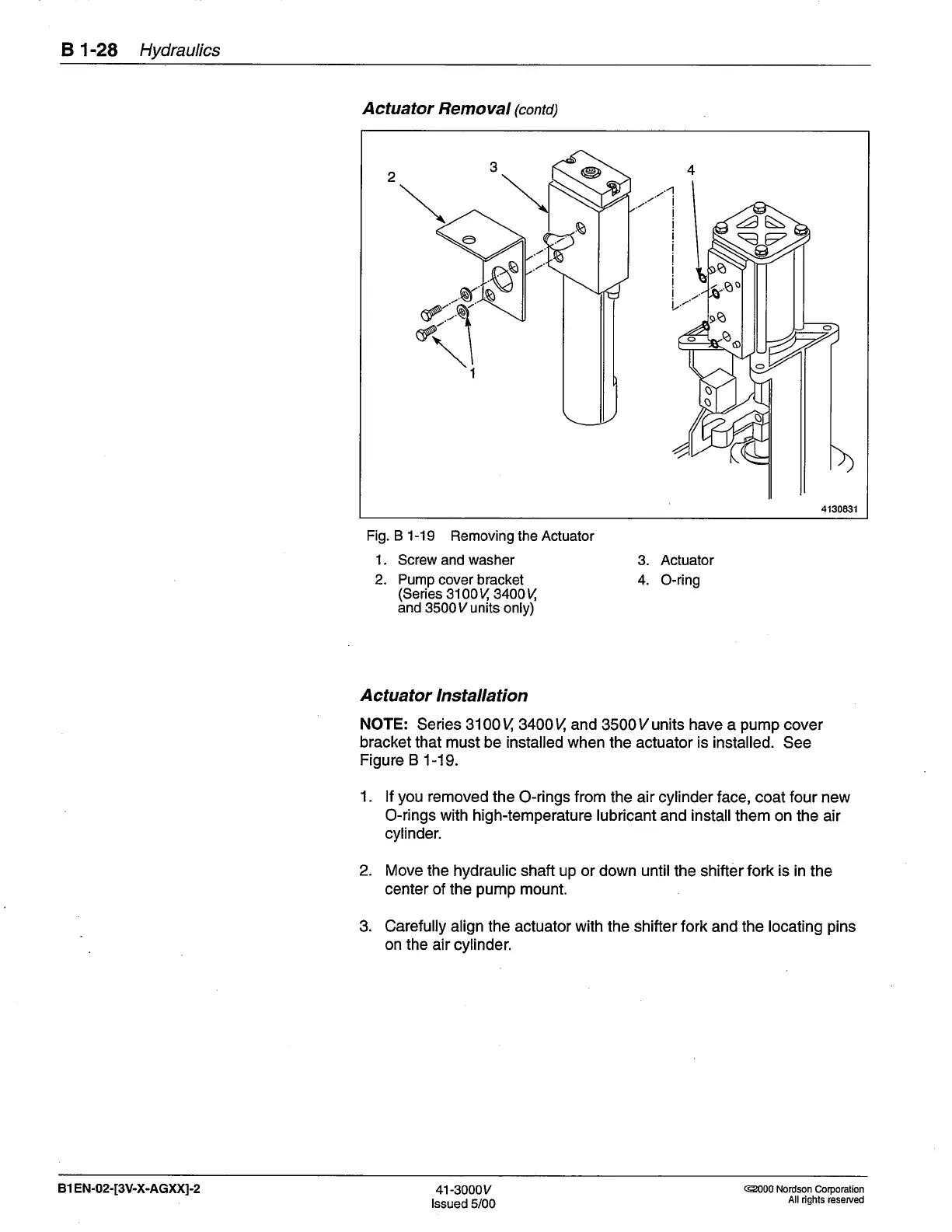

Fig. B 1-19
Removing the Actuator
1. Screwandwasher
2. Pump
cover bracket
(Series
3100t4
34oov
and
3500Vunits only)
3. Actuator
4. O-ring
Actuator
lnstallation
NOTE:
Series 3100t4 3400V and
3500Vunits
have
a
pump
cover
bracket that must be installed when
the actuator
is installed.
See
Figure B
1-19.
1. lf
you
removed
the
O-rings
from
the air cylinder face, coat four new
O-rings with high-temperature lubricant
and
installthem
on the air
cylinder.
2. Move
the hydraulic shaft up or down until
the shifier
fork is
in the
center of the
pump
mount.
3. Carefully align the actuator with the shifter fork
and the
locating
pins
on the
air cylinder.
3
4
2
\
1
4
t3083r
81 EN-02-[3V-X-AGXXI-2
41-3000v
lssued
5/00
@000
Nordson Corporat'on
All righls reserved
