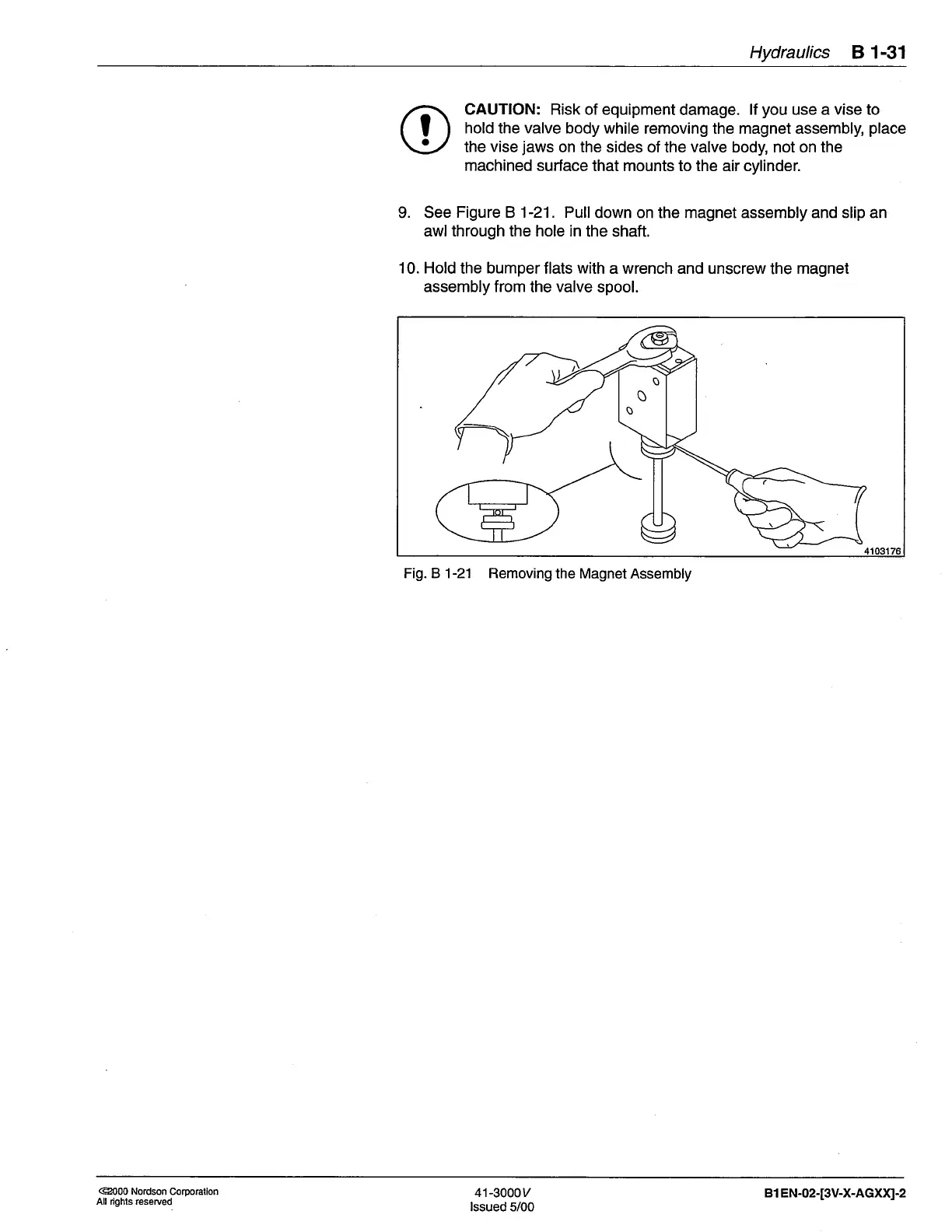

Nordson 3100V Series Customer Product Manual

Hydraulics
B 1-31
!
GAUTION: Flisk of equipment
damage.
lf
you
use a vise to
hold the valve body
while removing the magnet assembly,
place
the
vise
jaws
on the sides
of the
valve
body, not on the
machined surface
that mounts to the
air
cylinder.
9. See
Figure B 1-21. Pull
down on the magnet assembly and slip an
awlthrough the hole in
the shaft.
10. Hold
the bumper flats
with
a wrench and unscrew
the
magnet
assembly from
the
valve
spool.
Fig. B 1-21 Removing
the Magnet Assembly
-E-
@000 Nordson
Corporation
All rights reserved
41-3000v
lssued 5/00
Bl EN-02-[3V-X-AGXXI-2
