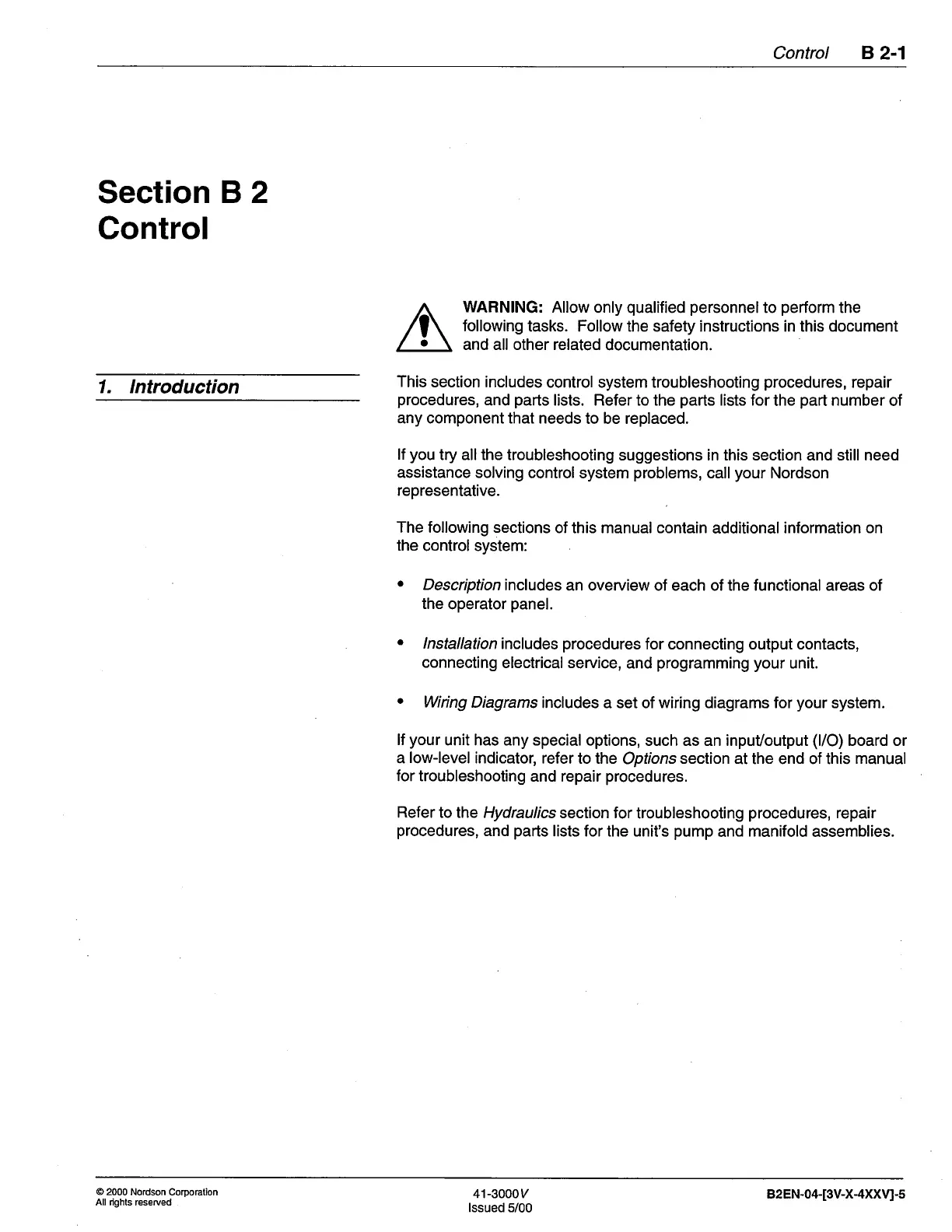

Nordson 3100V Series Customer Product Manual

Control B
2-1
Section
B 2
Control
1. lntroduction
WARNING:
Allow
only
qualified personnelto perform
the
following
tasks. Follow the safety instructions in this document
and all other related
documentation.
This
section includes
control system troubleshooting
procedures,
repair
procedures,
and
parts
lists. Refer to the
parts
lists for
the
part
number
of
any component that needs
to be replaced.
lf
you
try all the troubleshooting
suggestions in this section and still need
assistance solving
controlsystem
problems,
call
your
Nordson
representative.
The following sections
of this manual contain
additional
information on
the
control system:
Description
includes
an overview of each of the functional areas of
the
operator
panel.
lnstallation
includes
procedures
for connecting output contacts,
connecting
electrical service,
and
programming
your
unit.
o
Wiring
Diagrams
includes a set of wiring diagrams for
your
system.
lf
your
unit has any special
options, such as an inpuVoutput
(l/O)
board or
a
low-level
indicator,
refer to lhe
Options
section
at the end of this
manual
for troubleshooting
and repair
procedures.
Refer to lhe Hydraulics
section for
troubleshooting
procedures,
repair
procedures,
and
parts
lists for the unit's
pump
and
manifold
assemblies.
a
a
@
2000 Nordson
Corporation
All rights reserved
41-3000y
lssued 5/00
82EN-04-[3V-X-4XXU-s
