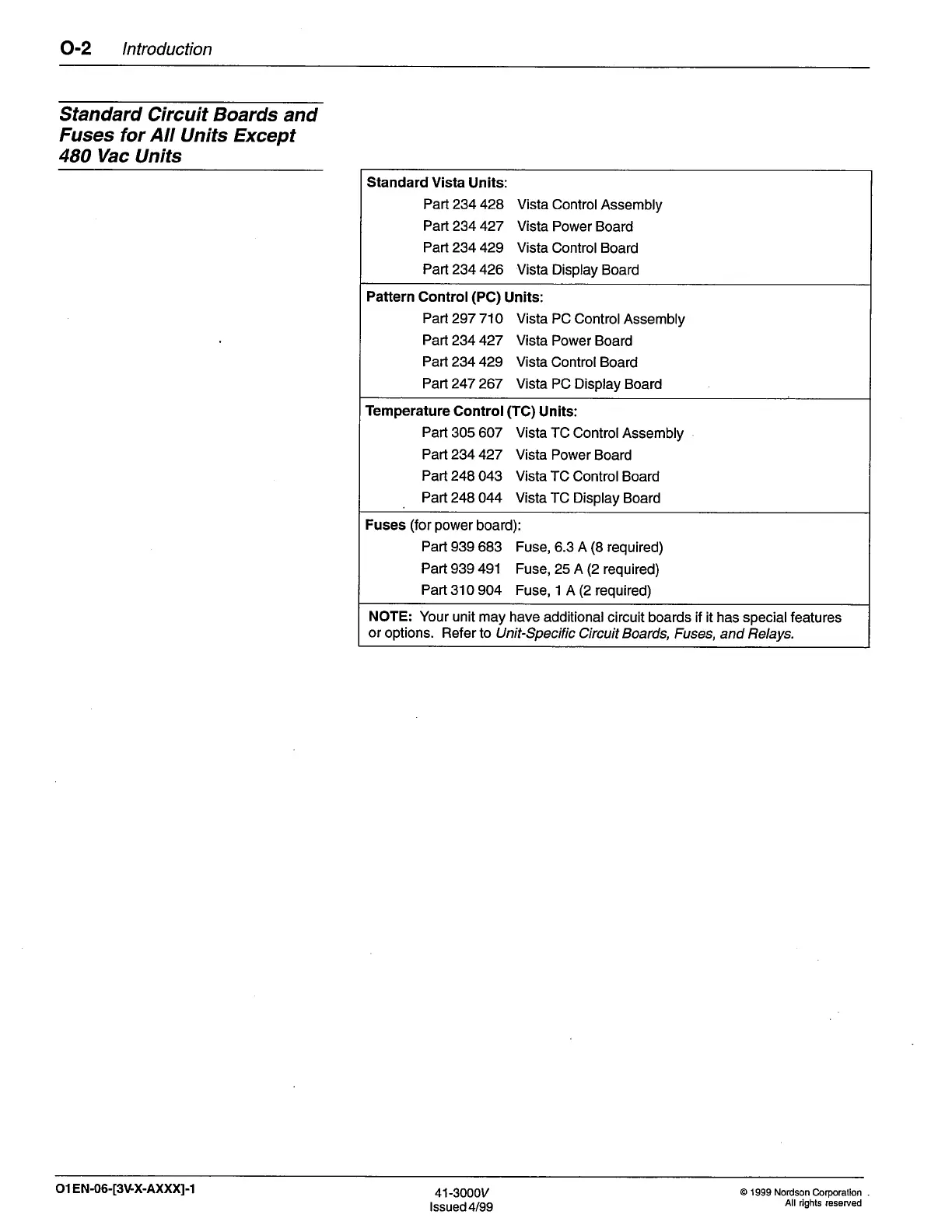

O-2 lntroduction
Standard
Circuit Boards
and
Fuses for All
Units Except
480 Vac
Units
Standard
Vista
Units:
Part234 428
Part234 427
Pan234 429
Part234
426
Vista ControlAssembly
Vista
Power Board
Vista
Control Board
Vista Display
Board
Pattern
Control
(PC)
Units:
Parl297 710 Vista
PC Control
Assembly
Part234
427 Vista
Power Board
Part234
429 Vista
Control Board
Par1247
267 Vista PC Display
Board
Temperature
Control
(TC)
Units:
Part
305 607 Vista
TC ControlAssembly
Par1234
427 Vista Power
Board
Parl248
043 Vista TC
Control Board
Part248
044 Vista TC Display
Board
Fuses
(for
power
board):
Part 939
683 Fuse, 6.3 A
(8
required)
Part 939 491 Fuse,
25 A
(2
required)
Part 310 904 Fuse,
1 A
(2
required)
NOTE:
Your unit
may have additional
circuit boards if it has special features
or
options. Refer
to
Unit-Specific
Circuit Boards,
Fuses, and Relays.
