Nordson 3100V Series Customer Product Manual

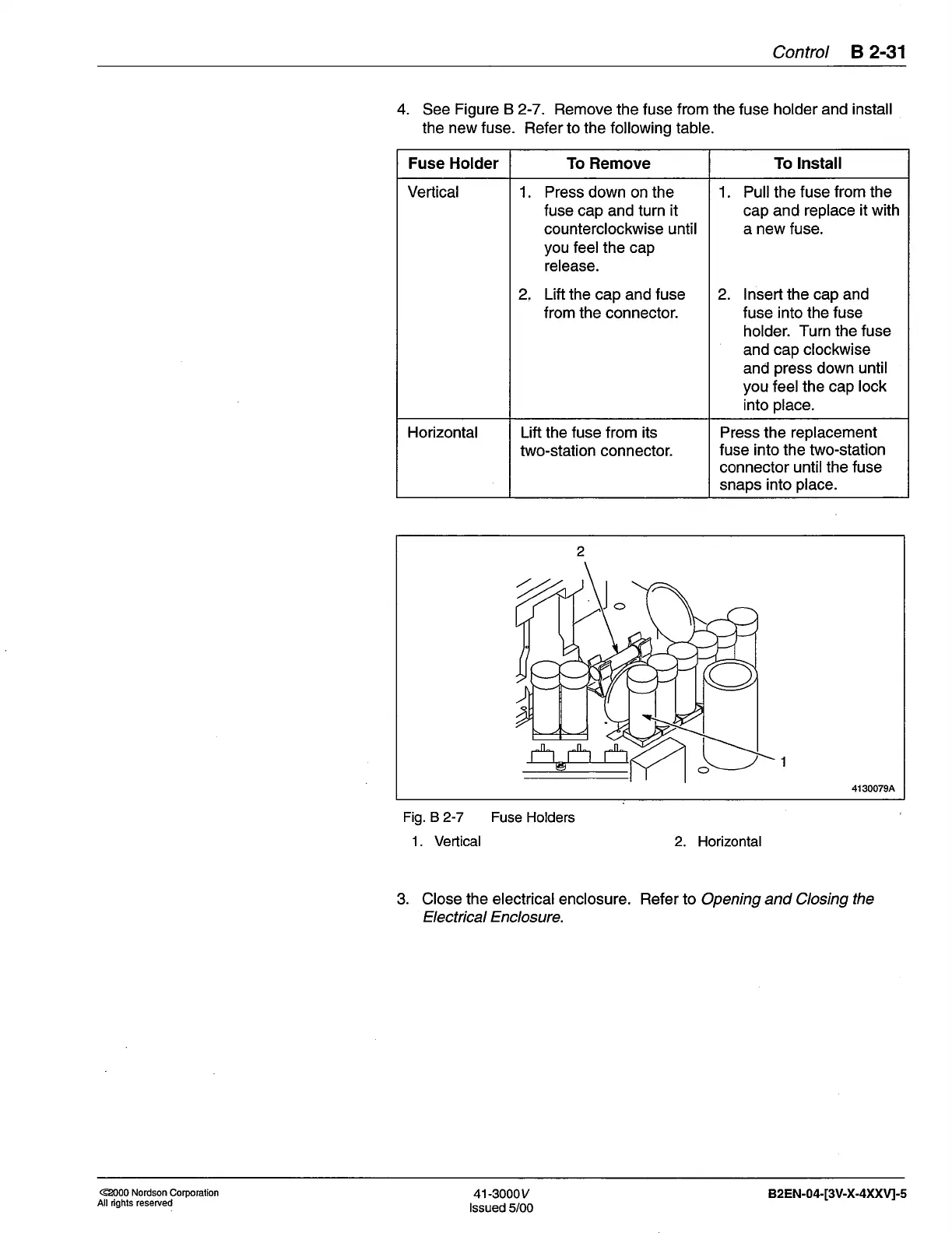

Control B 2-31
4.
See
Figure B 2-7.
Remove the fuse
from
the fuse
holder
and
install
the
new fuse.
Refer to the following table.
Fuse Holder To Remove To lnstall
Vertical
1. Press down on the
fuse cap and turn it
counterclockwise until
you
feel the cap
release.
2. Lift
the cap and
fuse
from the connector.
1. Pull the
fuse from the
cap and replace
it with
a new fuse.
2. lnsert the cap and
fuse into
the
fuse
holder.
Turn the fuse
and
cap clockwise
and
press
down until
you
feelthe cap
lock
into
place.
Horizontal Lift the fuse from its
two-station connector
Press the replacement
fuse into the two-station
connector
until the fuse
snaps into
place.
2
o
O
4130079A
Fig. B 2-7 Fuse
Holders
'1.
Vertical 2. Horizontal
3. Close the electrical enclosure. Refer to
Opening
and Closing the
Electrical Enclosure.
e000
Nordson
Corporalion
All righls reserved
41-3000v
lssued 5/00
82EN-04-[3V-X-4XXV]-5
