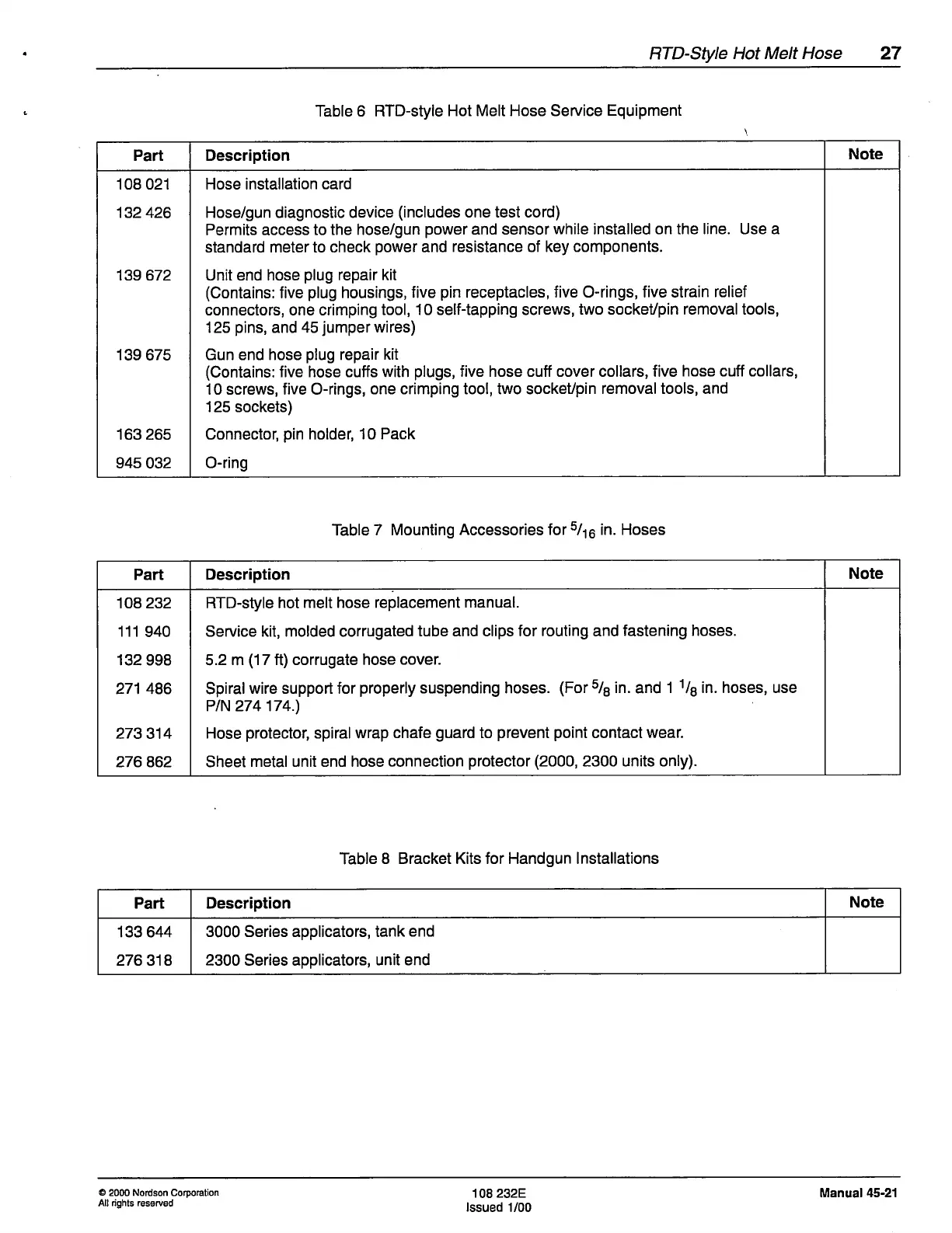

RTD-SU\e Hot
Melt Hose
27
Table 6 RTD-style
Hot Melt Hose Service
Equipment
Table
7 Mounting
Accessories for
s/16
in. Hoses
Table
8 Bracket Kits for Handgun lnstallations
Part Description
Note
139 672
1
39 675
1 63 265
945 032
1 08 021
132426
Hose installation
card
Hose/gun diagnostic device
(includes
one test cord)
Permits access
to the hose/gun
power
and sensor
while
installed
on the line. Use a
standard meter to check
power
and
resistance
of
key components.
Unit end hose
plug
repair kit
(Contains:
five
plug
housings,
five
pin
receptacles,
five O-rings, five strain
relief
connectors, one crimping
tool, 10 self-tapping screws,
two socket/pin removaltools,
125
pins,
and 45
jumper
wires)
Gun end hose
plug
repair
kit
(Contains:
five hose cuffs with
plugs,
five hose cutf cover collars, five
hose cuff collars,
10 screws, five O-rings,
one crimping tool, two sockeUpin
removal tools, and
1 25 sockets)
Connector,
pin
holder, 10
Pack
O-ring
Part Description
Note
108232
111
940
132 998
271 486
273 314
276862
RTD-style hot
melt hose replacement
manual.
Service kit, molded corrugated
tube and clips for routing and
fastening hoses.
5.2 m
(17
ft)
corrugate hose
cover.
Spiral
wire support for
properly
suspending hoses.
(For
5/s
in.
and
1
1/s
in. hoses, use
PIN 274174.)
Hose
protector,
spiral wrap
chafe
guard
to
prevent point
contact
wear.
Sheet
metal unit end hose connection
protector
(2000,
2300 units only).
Part Description
Note
133 644
276318
3000 Series applicators, tank
end
2300 Series applicators,
unit end
O
2000 Nordson Corporation
All
rights r€ssrved
108232E
lssued
1/00
Manual 45-21
