Nordson 3100V Series Customer Product Manual

a
RTD-Style Hot Melt Hose
33
2
1
4
3
5
d50200't
Service
Equipment
@ontd)
1
263
4
5
I
12
7
11
10
45020r)2

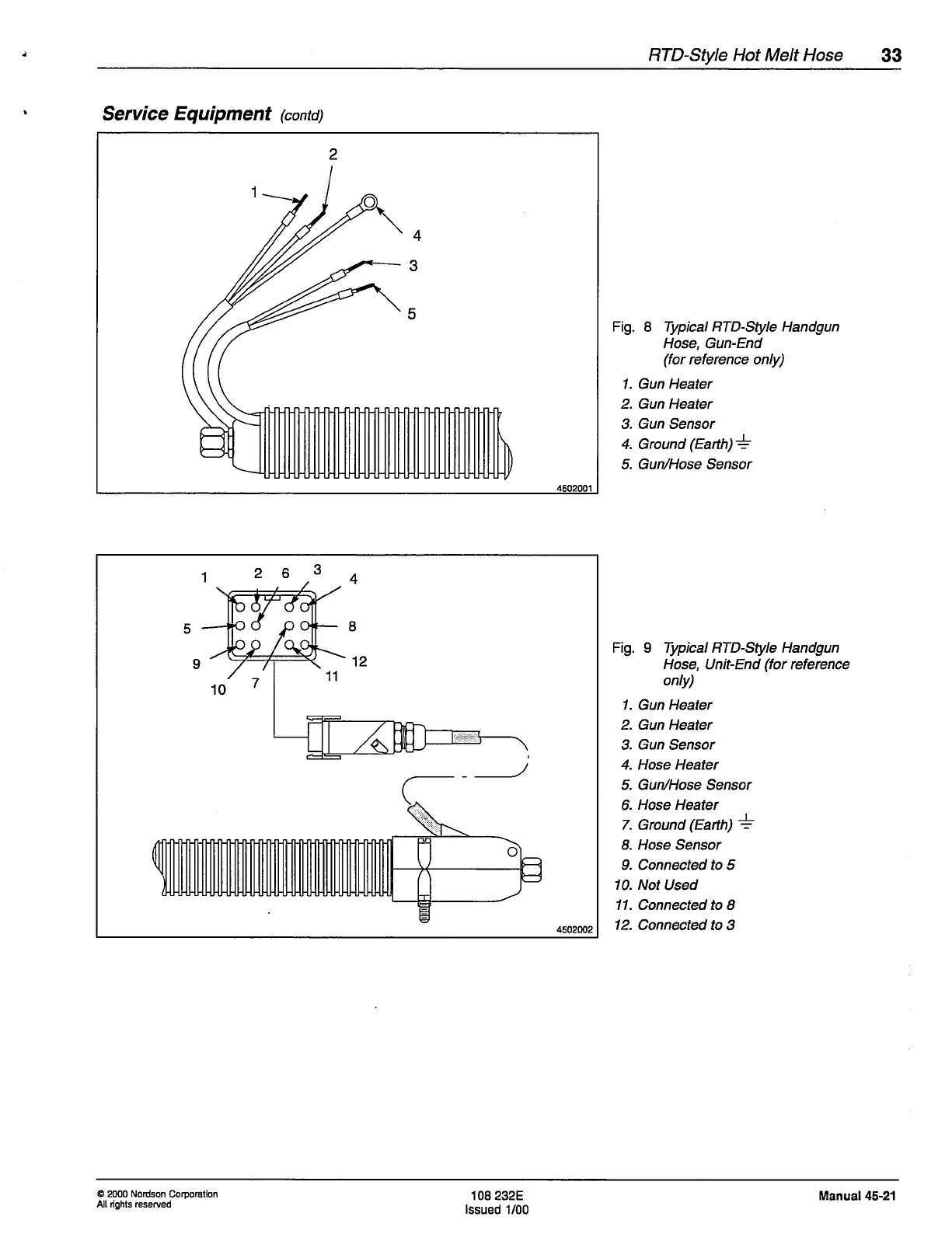

Fig.
8 TypicalRTD-Style Handgun
Hose, Gun-End
(for
reference only)
1. Gun Heater
2. Gun Heater
3. Gun Sensor
4. Ground
(Eaftil*
5. Gun/Hose Sensor
Fig. 9 TypicalRTD-Style Handgun
Hose, Unit-End
(for
reference
only)
1. Gun Heater
2. Gun Heater
3.
Gun
Sensor
4. Hose Heater
5. GurdHose Sensor
6.
Hose Heater
7. Ground
(Eartil
*
8. Hose Sensor
9. Connected to 5
10. Not
Used
11. Connected to I
12. Connected to 3
o
a)oo
Nordson
Corporation
All rights reserved
1 08 232E
lssued
1/00
Manual 45-21
