Nordson 3100V Series Customer Product Manual

RTD-Style Hot Melt Hose
35
2
1
3
5
b
4
I
7
8
4502005A

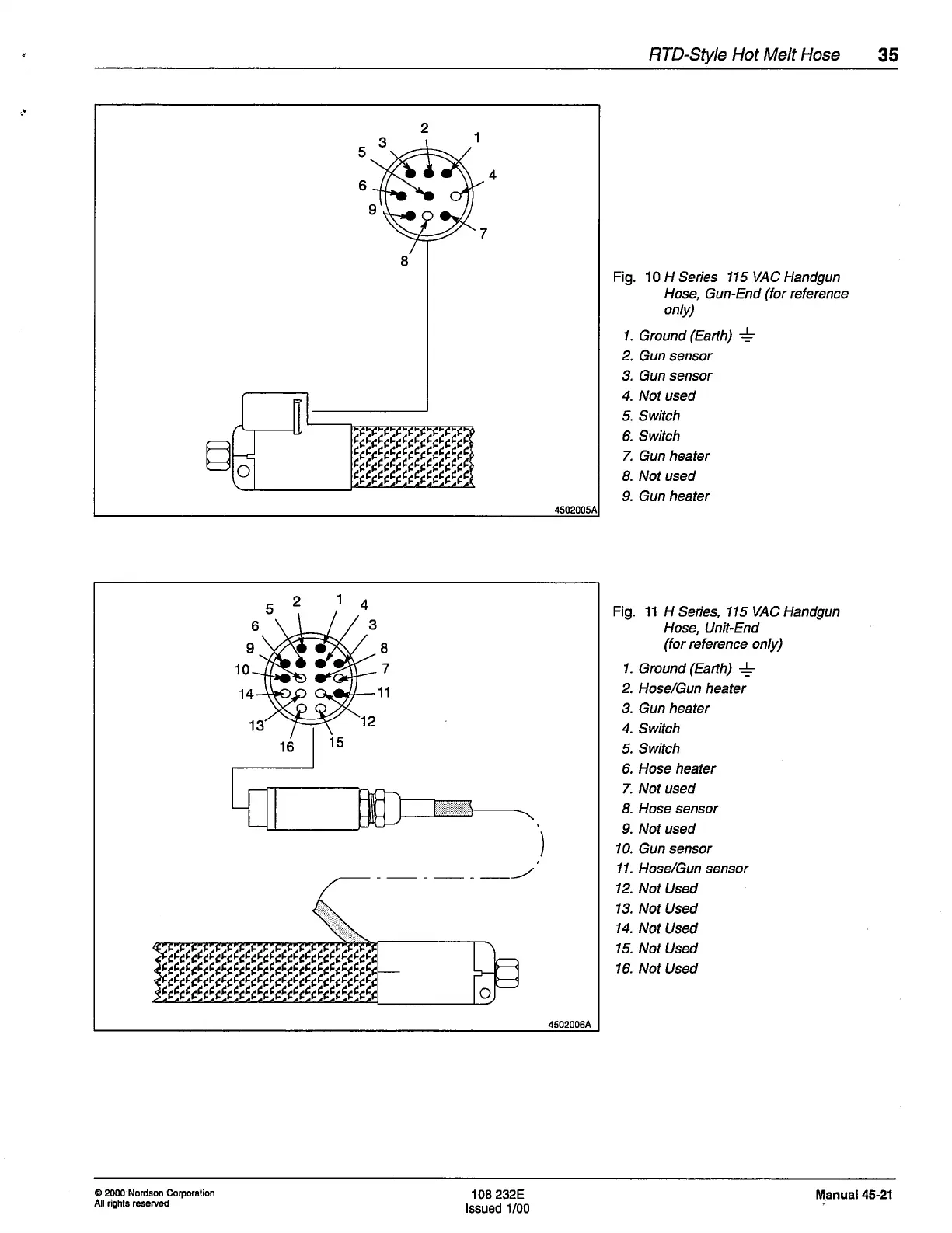

Fig. 10 H Series 115VAC Handgun
Hose, Gun-End
(for
reference
only)
1. Ground
(Eanfl
!
2.
Gun sensor
3. Gun sensor
4. Not used
5. Switch
6. Switch
7. Gun heater
8. Not used
9. Gun heater
5
Z1
4
6
I
3
10
I
7
11
14
1
2
16
15
4502006A
#
Fig.
11
H
Seies, ll5VAC Handgun
Hose, Unit-End
(for
reference only)
1. Ground
(Earth)
!
2.
Hose/Gun heater
3. Gun heater
4.
Switch
5. Switch
6. Hose heater
7. Not used
8. Hose sensor
9. Not used
10. Gun sensor
11. Hose/Gun sensor
12. Not Used
13.
Not Used
14. Not
Used
15. Not Used
16. Not
Used
@
2fl)0 Nordson Corporation
All rights reservBd
108232E
lssued 1/00
Manual 45-21
