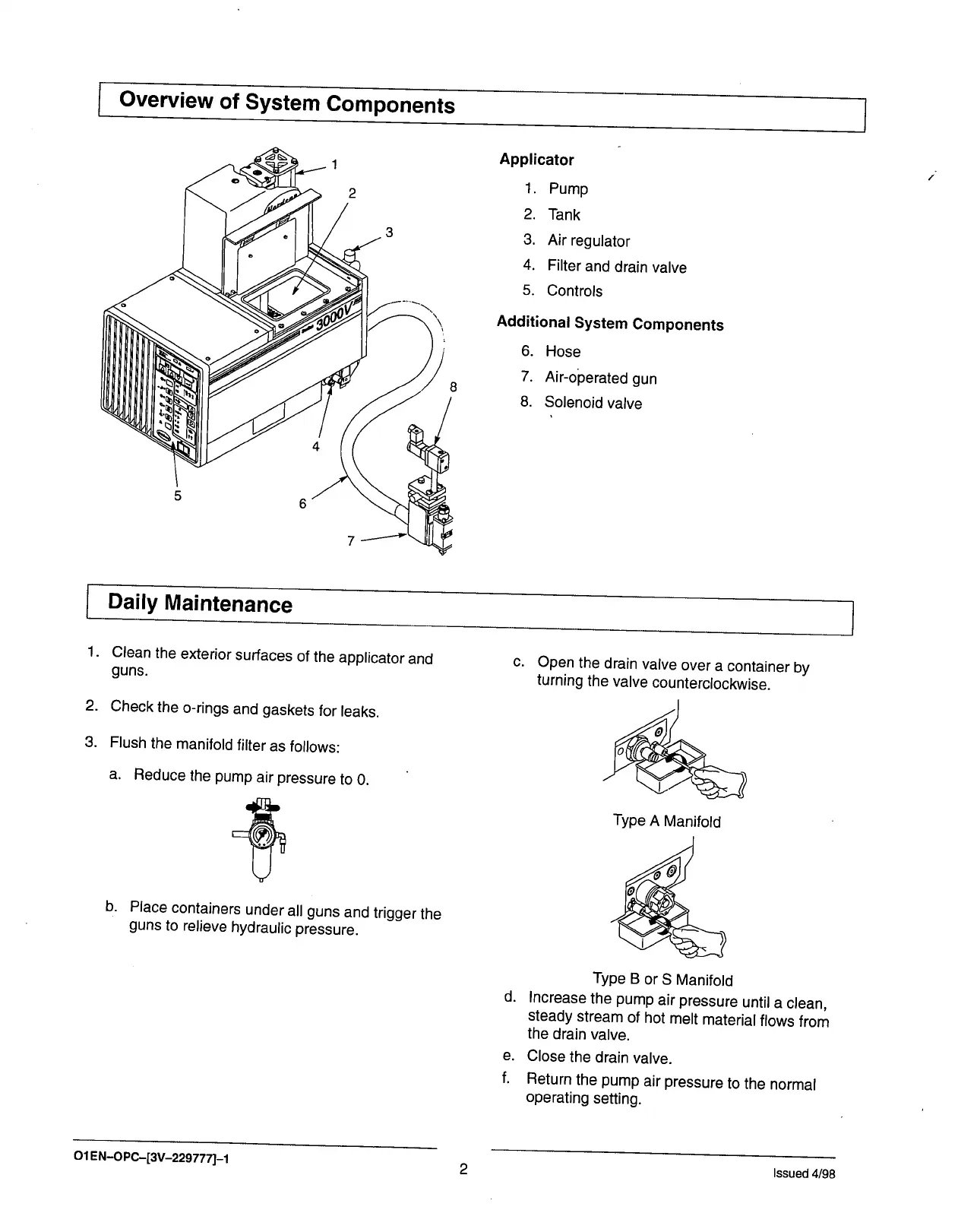

Nordson 3100V Series Customer Product Manual

rvi
Ove
EW
of
S
tem
Com
o
ys
nts
ne
p
1
Applicator
1.
Pump
2.
Tank
3.
Air
regulator
4.
Filter
and
drain
valve
5.
Controls
Additional
System
Components
6.
Hose
7.
Air-operated
gun
8.
Solenoid
valve
2
3
8
4
Clean
the
exterior
sudaces
of
the
applicator
and
guns.
2.
Check
the
o-rings
and
gaskets
for
leaks.
3.
Flush
the
manifold
filter
as
follows:
a.
Reduce
the
pump
air
pressure
to
0.
c.
Open
the
drain
valve
over
a
container
by
turning
the
valve
counterclockwise.
5
6
7
1
b
Place
containers
under
all
guns
and
trigger
the
guns
to relieve
hydraulic
pressure.
Type
A
Manifotd
TypeBorSManifold
d.
lncrease
the
pump
air
pressure
until
a
clean,
steady
stream
of
hot
melt
materialflows
from
the
drain
valve.
e.
Close
the
drain
valve.
f.
Return
the
pump
air
pressure
to
the
normal
operating
setting.
2
Daily
Maintenance
ol
EN-oPc-[3V
-229771_1
lssued
4/98
