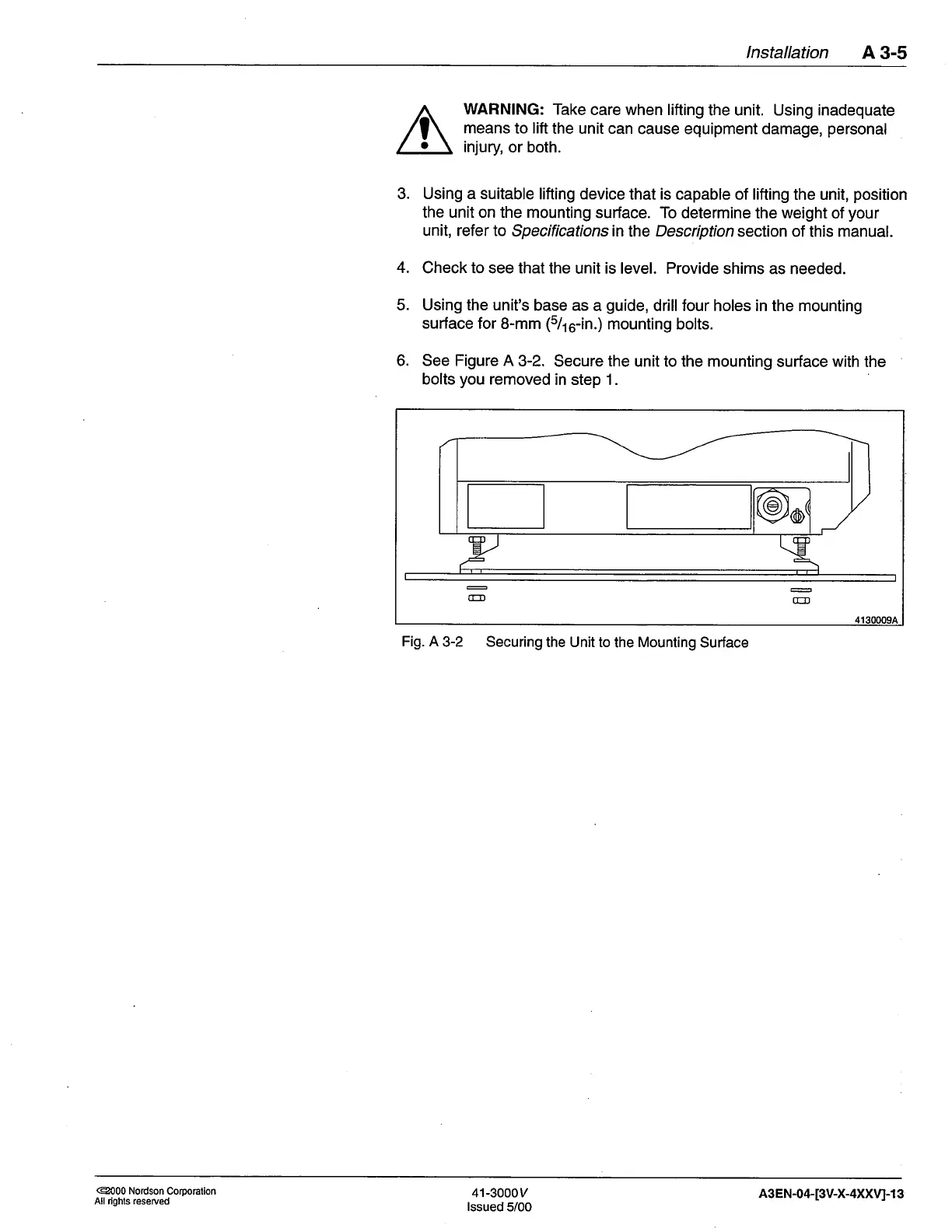

Nordson 3100V Series Customer Product Manual

lnstallation
A
3-5
WARNING:
Take
care when lifting
the unit. Using inadequate
means
to
lift
the unit can
cause equipment damage,
personal
injury
or both.
3. Using a suitable
lifting device
that is capable of lifting
the unit,
position
the unit on the
mounting surface. To
determine the weight
of
your
unit, refer lo
Specificafions in
the
Descripfion
section of
this
manual.
4.
Check to see that
the unit is level. Provide
shims as needed.
5. Using the
unit's base as
a
guide,
drillfour holes in the mounting
surface
for 8-mm
(5/16-in.)
mounting bolts.
6. See Figure A
3-2.
Secure
the
unit to the mounting
surface
with
the
bolts
you
removed
in step 1.
(E)
TED
Fig. A
3-2 Securing
the Unit to
the
Mounting
Surface
@000 Nordson
Corporation
All righls reserved
41-3000y
lssued
5/00
A3 EN-04-[3V-X-4XXyJ-1
