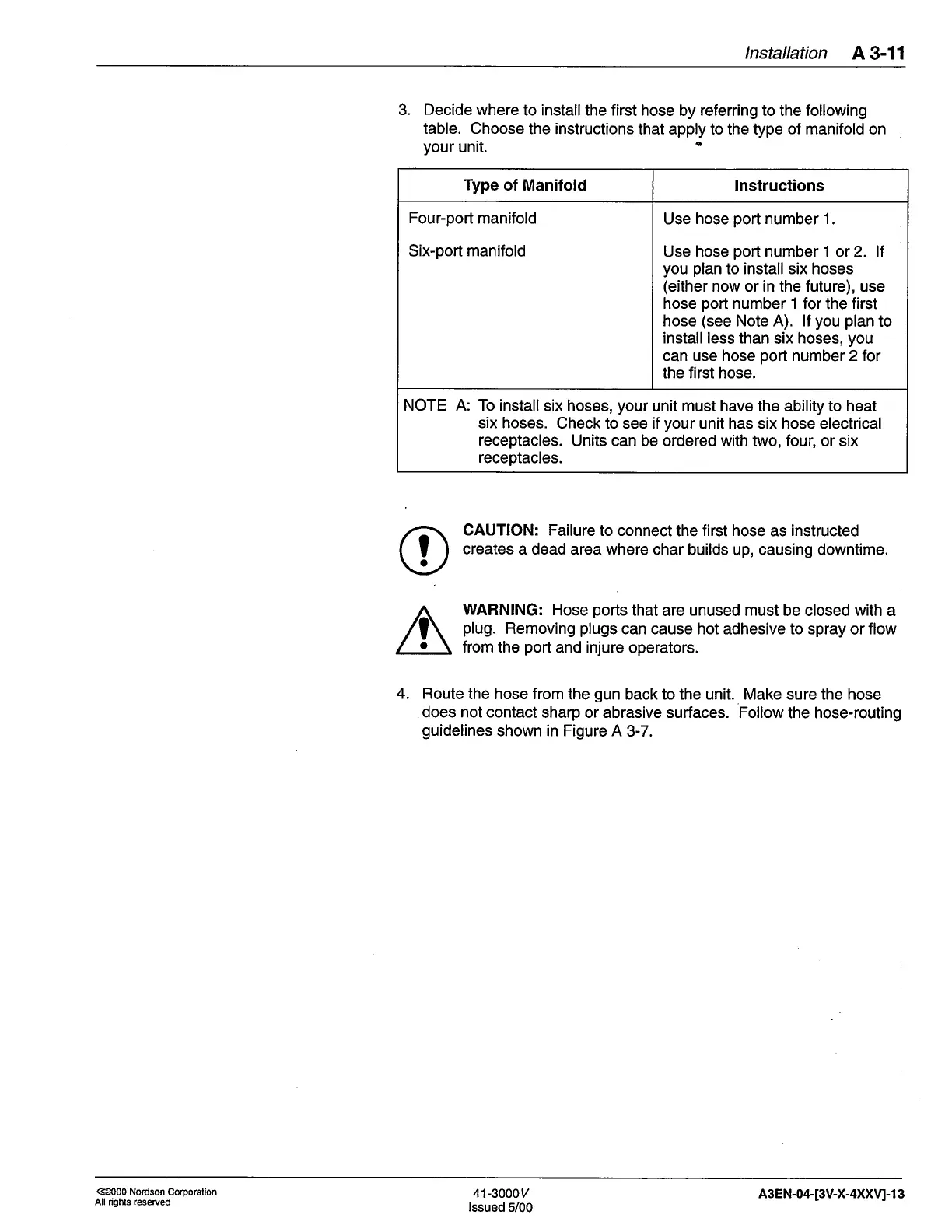

lnstallation
A
3-11
3. Decide where
to install the first
hose by
referring
to the following
table. Choose
the instructions
that apply to the type
of manifold
on
your
unit.
'
CAUTION: Failure
to connect
the
first hose
as
instructed
creates
a dead area where
char builds up, causing downtime.
WARNING:
Hose
ports
that
are
unused
must be closed with a
plug.
Removing
plugs
can cause hot
adhesive
to spray
or
flow
from the
port
and injure operators.
4. Route
the hose from
the
gun
back to the unit. Make sure
the hose
does not contact
sharp or abrasive surfaces. Follow
the hose-routing
guidelines
shown in Figure A3-7.
Type
of Manifold
lnstructions
Four-port
manifold
Six-port
manifold
Use
hose
port
number
1.
Use hose
port
number 1 or 2. ll
you
plan
to install six hoses
(either
now or in the future), use
hose
port
number 1 for
the
first
hose
(see
Note A). lf
you plan
to
install less than
six
hoses,
you
can use hose
port
number 2 for
the first hose.
NOTE A: To
install six hoses,
your
unit must have the ability to heat
six hoses.
Check to see if
your
unit has six hose electrical
receptacles.
Units
can
be ordered
with
two,
four,
or six
receptacles.
I
a
e000 Nordson Corporation
All rights reseled
41-3000y
lssued
5/00
A3 EN-04-[3V-X-4XXVj-1
3
