lnstallation
A
3-15
4.
See
Figure
A
3-9.
Find
the hose
plug
of the first hose
you
connected
to the manifold.
5. Connect
this hose
plug
to
electrical receptacle number
'1
on the unit.
6.
lf
you
have additional
guns
and hoses, continue connecting
gun
and
hose cordsets.
Connect the cordset
of the next hose
(the
hose
closest to the
rear of the unit)
to the hose electrical receptacle
labeled
number 2
on the unit.
Continue connecting
gun
and hose
cordsets,
working from
the rear of the
unit to the front of the unit, until
you
have
connected
all
gun
and hose
cordsets.
li
4103958A

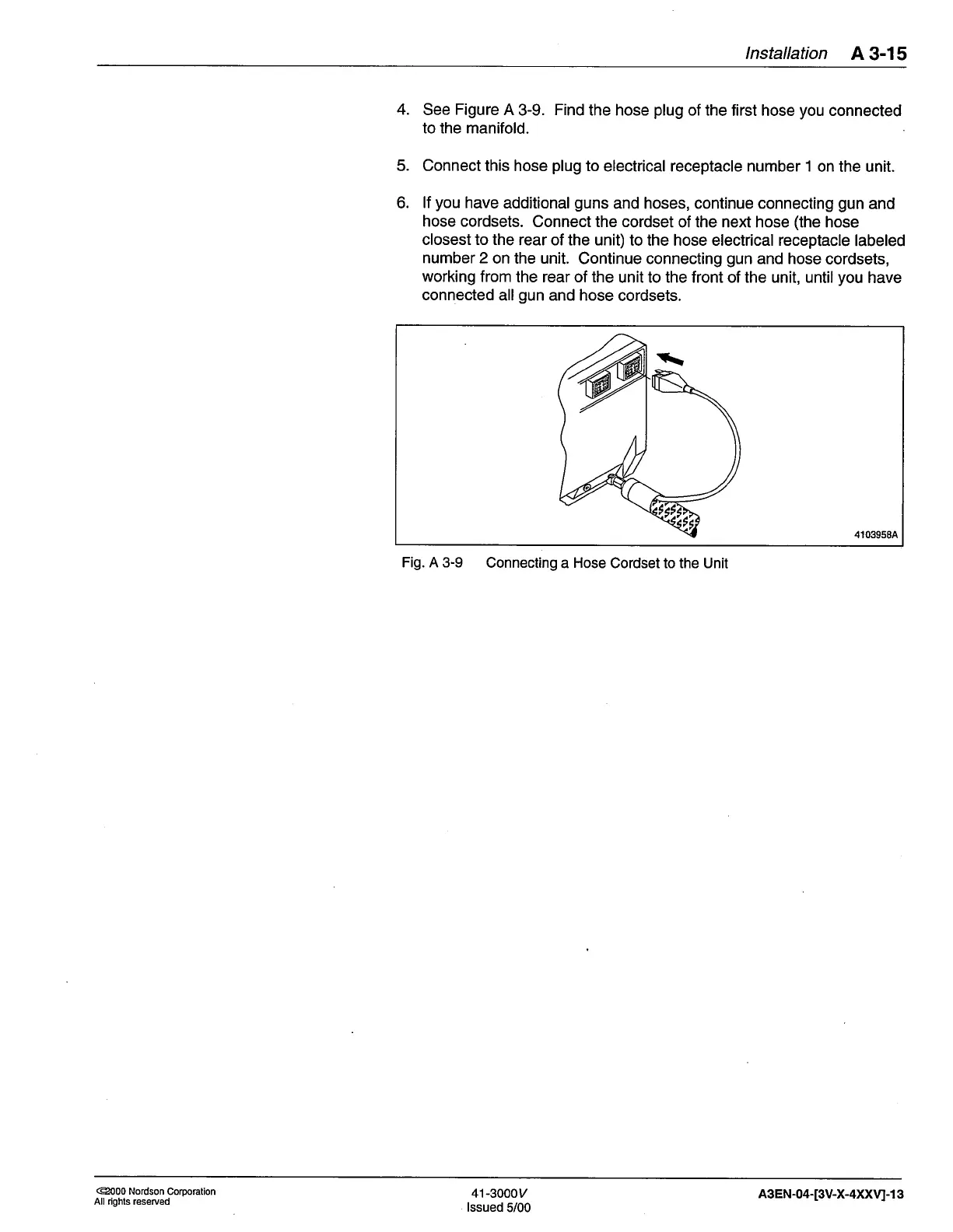

Fig. A 3-9
Connecting
a
Hose
Cordset to the Unit
@000 Nordson
Corporation
All rights reserved
41-3000y
lssued 5/00
A3 EN-04-[3V-X-4XXVJ-1
