Nordson 3100V Series Customer Product Manual

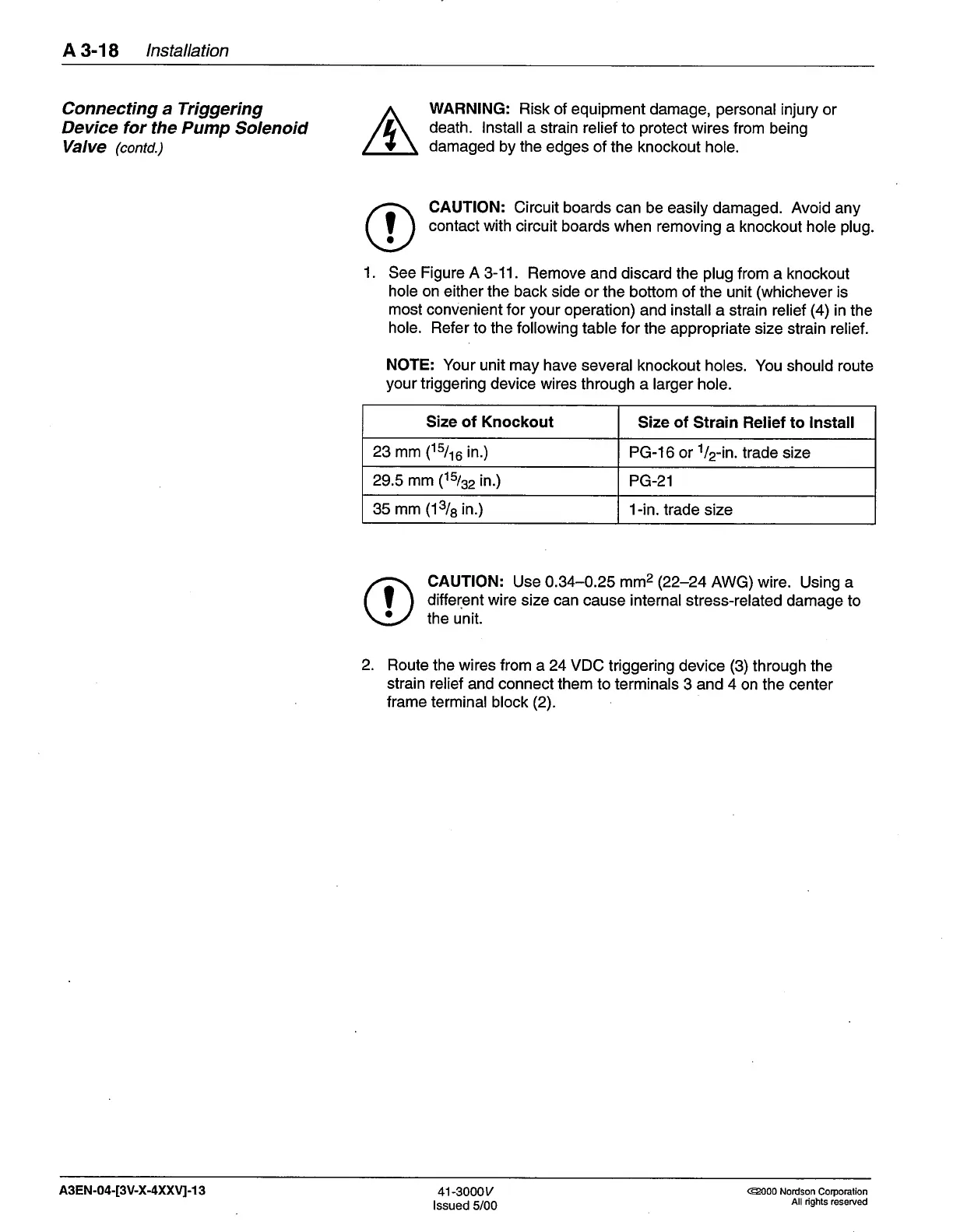

A 3-18
lnstallation
Connecting
a Triggering
Device for
the Pump
Solenoid
Valve
@ontd1
WARNING:
Risk
of equipment
damage,
personal
injury or
death.
lnstall a strain relief
to
protect
wires
from being
damaged
by the
edges of the knockout
hole.
CAUTION: Circuit boards can
be easily damaged. Avoid
any
contact with
circuit boards
when removing
a
knockout hole
plug.
1.
See Figure A
3-11. Remove and
discard the
plug
from
a
knockout
hole on
either the back side or
the bottom of the unit
(whichever
is
most convenient
for
your
operation)
and install a strain relief
(4)
in
the
hole. Refer
to the following table for
the appropriate size strain relief.
NOTE:
Your unit may
have several knockout holes.
You should route
your
triggering
device wires
through a larger hole.
CAUTION:
Use 0.34-0.25 mm2
(22-24
AWG) wire.
Using
a
different wire
size can
cause internal stress-related
damage to
the unit.
2.
Floute the wires from
a 24VDC
triggering device
(3)through
the
strain relief
and connect
them to terminals
3
and 4
on the center
frame
terminal block
(2).
T
a
Size of Knockout
Size
of
Strain Relief to lnstall
23 mm
(1s/16
in.)
PG-16
or
112-in.
trade size
29.5 mm
(15/32
in.)
PG-21
35 mm
(13/s
in.)
1-in.
trade size
I
a
A3EN-04-[3V-X-4XXVj-1
3
41-3000v
lssued
5/00
@000 Nordson
CoDoralion
All
rights
reserved
