Nordson 3100V Series Customer Product Manual

A 3-20
lnstallation
Connecting Output
Contacts
(Optional)
@ontd1
WARNING:
Risk of equipment
damage,
personal
injury
or
death. For a
proper
and safe installation,
make sure
you
meet
the requirements
in the following step.

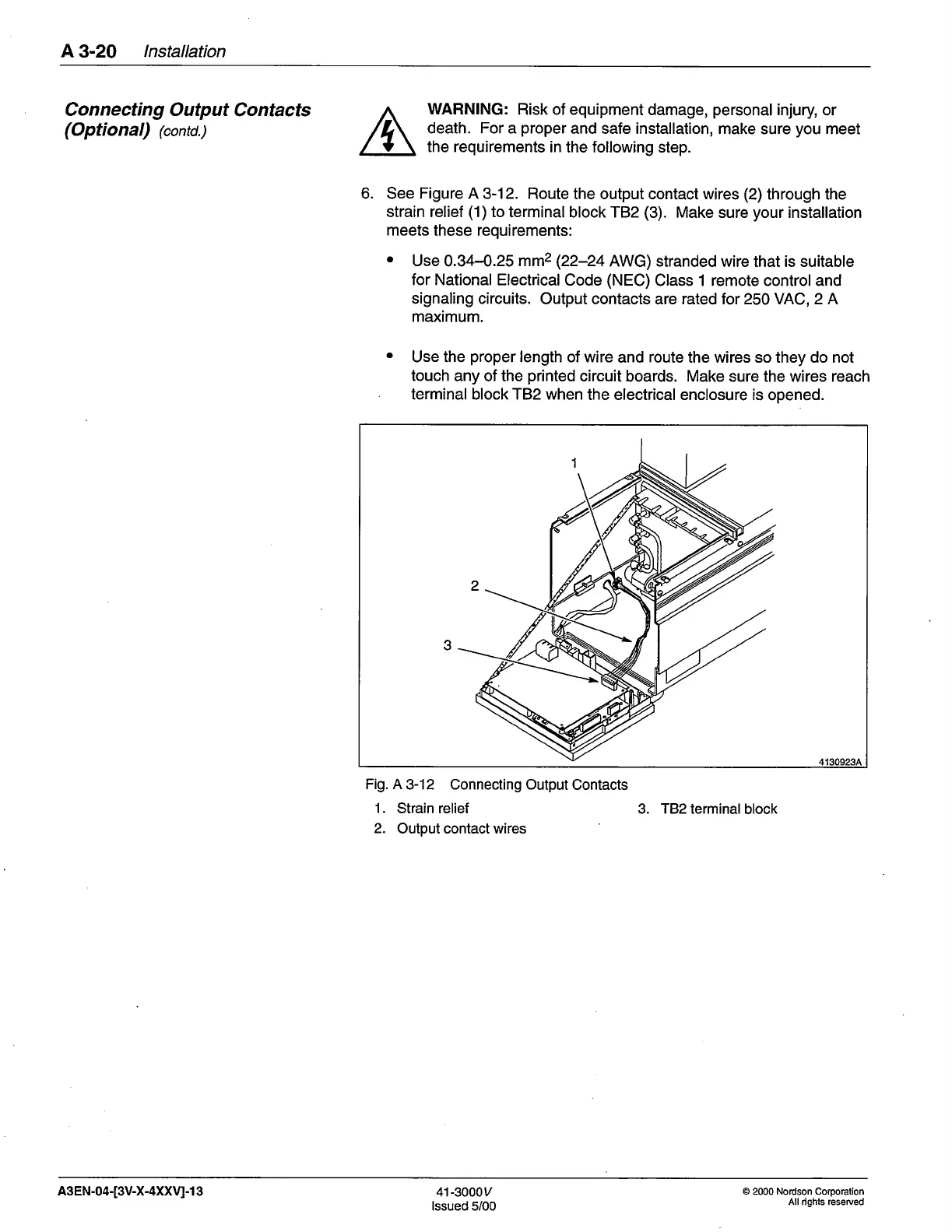

6. See Figure A 3-12. Route
the output contact wires
(2)
through the
strain relief
(1)
to
terminal block TB2
(3).
Make sure
your
installation
meets
these requirements:
.
Use
0.34-0.25
mm2
(22-24
AWG) stranded
wire that is suitable
for National Electrical
Code
(NEC)
Class 1 remote control and
signaling circuits.
Output contacts are rated for 250 VAC, 2 A
maximum.
Use the
proper
length of wire
and
route
the wires so they do not
touch
any of the
printed
circuit
boards. Make sure the wires reach
terminal block TB2 when
the electrical enclosure is
opened.
a
1
2
3
dt aooraa
Fig. A
3-12 Connecting Output
Contacts
1.
Strain relief
3. TB2 terminal
block
2.
Output contact wires
A3EN-04-[3V-X-4XXVI-1
3
41-3000v
lssued 5/00
@
2000
Nordson Corporalion
All r,ghls reserved
