Nordson 3100V Series Customer Product Manual

A3-24
lnstallation
Connecting Electrical
Seruice
(contd.)
o
1
2
Fig.

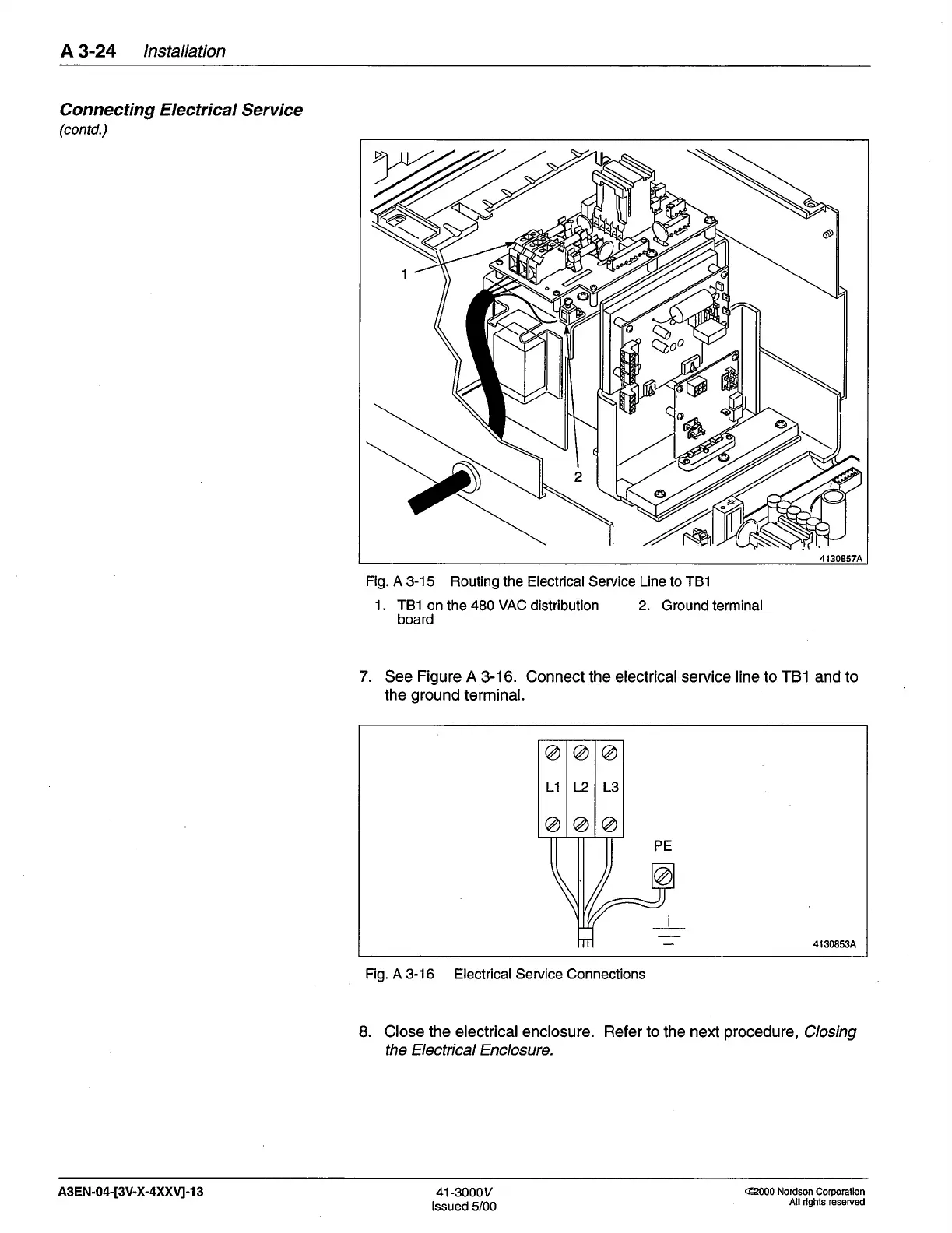

A 3-15 Routing the Electrical Service Line to TB1
1. TB1 on
the
480 VAC distribution
board
2.
Ground terminal
7.
See
Figure
A
3-16.
Connect the electrical seruice line to TB1 and to
the
ground
terminal.
Fig. A 3-16 Electrical Service Connections
8. Close
the electrical enclosure. Refer to
the
next
procedure,
Closing
the Electrical Enclosure.
PE
=!
4130853A
@
L1
@
@
12
@
@
L3
@
A3EN.04-[3V-X-4XXV]-1 3
41
-3000v
lssued 5/00
@000 Nordson
Corporalion
All dghts reserved
