NFS2-3030/E Installation Manual — P/N 52544:N1 07/18/2014 57
Connecting an FAAST Intelligent Aspiration Detector Applications
FAAST Wiring:
Figure 4.15 shows the wiring for
the FAAST detector to the
NFS2-3030.
For additional installation
information for the FAAST
detector, refer the FSA-8000 FAAST
Installation and Maintenance
Instruction document (I56-3903)
and the SLC Wiring Manual
(51253).
FAASTTermBlk.wmf
To Next SLC Device +
From FACP or Previous Device +
To Next SLC Device -
From FACP or Previous Device -

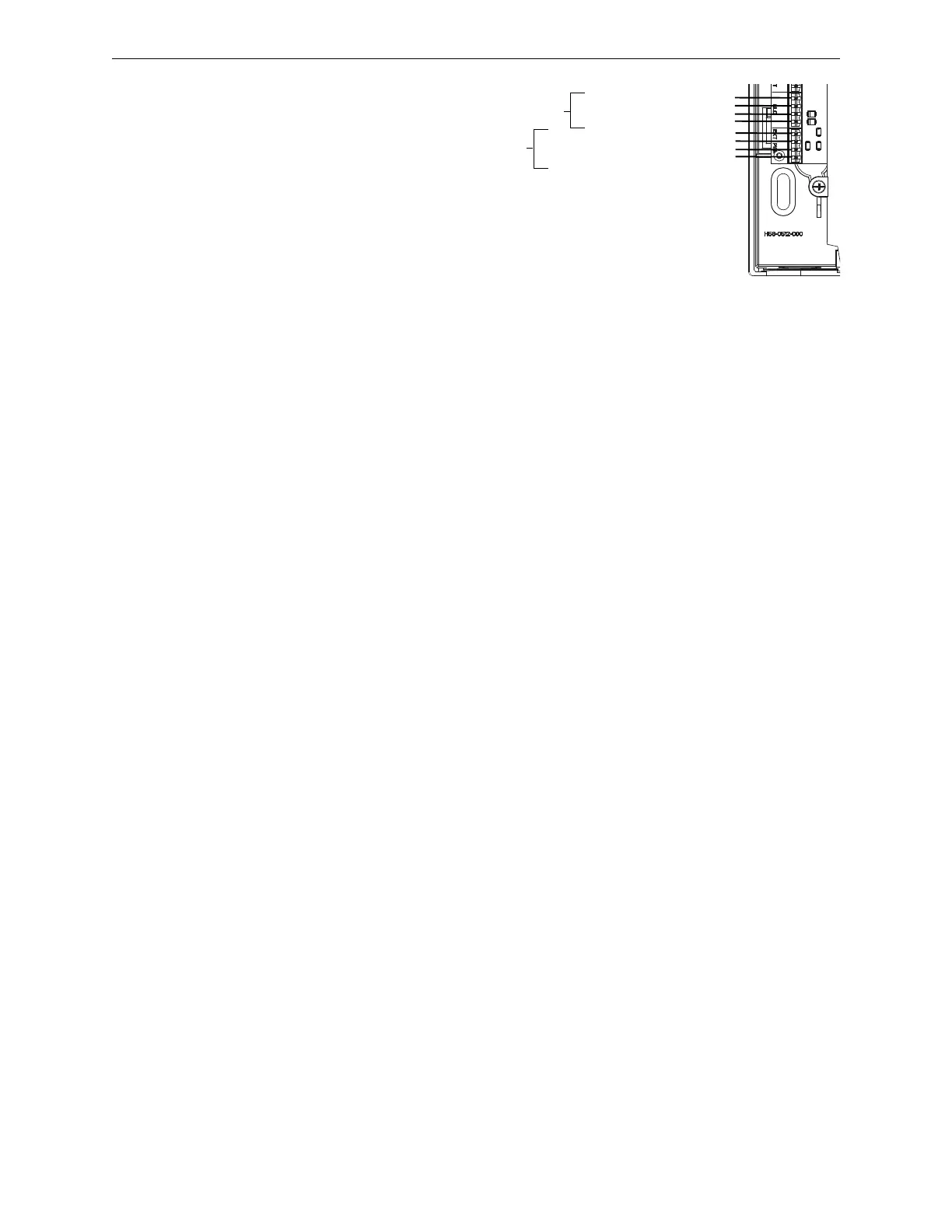

Figure 4.15 FSA-8000A Connection to the FACP
To Next Device +
From Power Supply or Previous Device +
To Next Device -
SLC
Connection
24V External
Power
From Power Supply or Previous Device -
