MAXIMUM ELONGATION OF TIE RODS
Tie rods may become stretched due to severe operating conditions or age in normal
operating conditions. When the maximum length is reached, the tie rod must be
replaced. The chart below gives the new and maximum lengths. A tape measure is all
that is required.

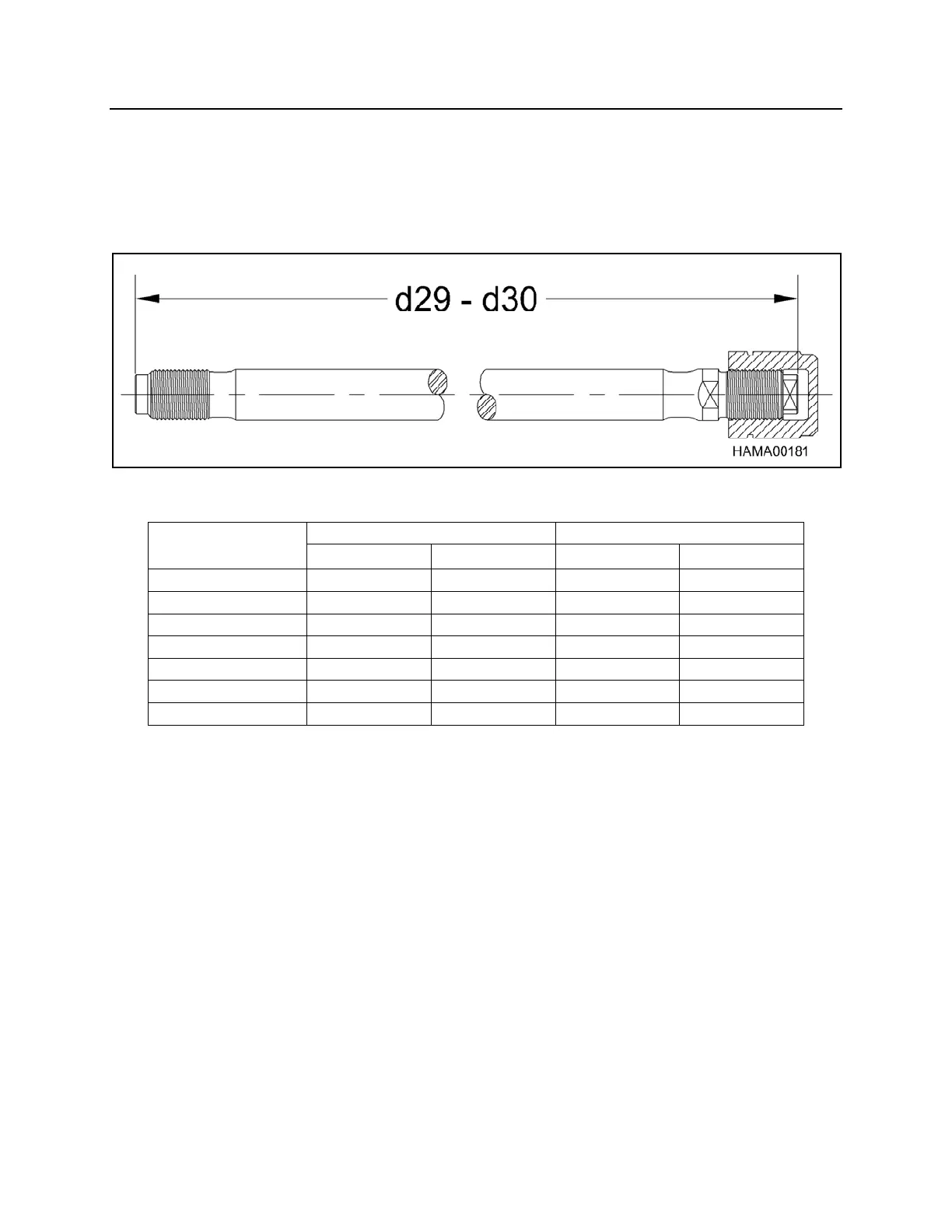

NEW LENGTH d29 MAXIMUM LENGTH d30
MODEL
INCH MM INCH MM
GH06 22.72 577 23.03 585
GH07 22.72 577 23.03 585
GH1 25.71 653 26.02 661
GH2/GHS2 27.95 710 28.27 718
GH3 30.12 765 30.43 773
GH4 36.81 935 37.13 943
GH6 43.90 1115 44.21 1123
