- 90 -

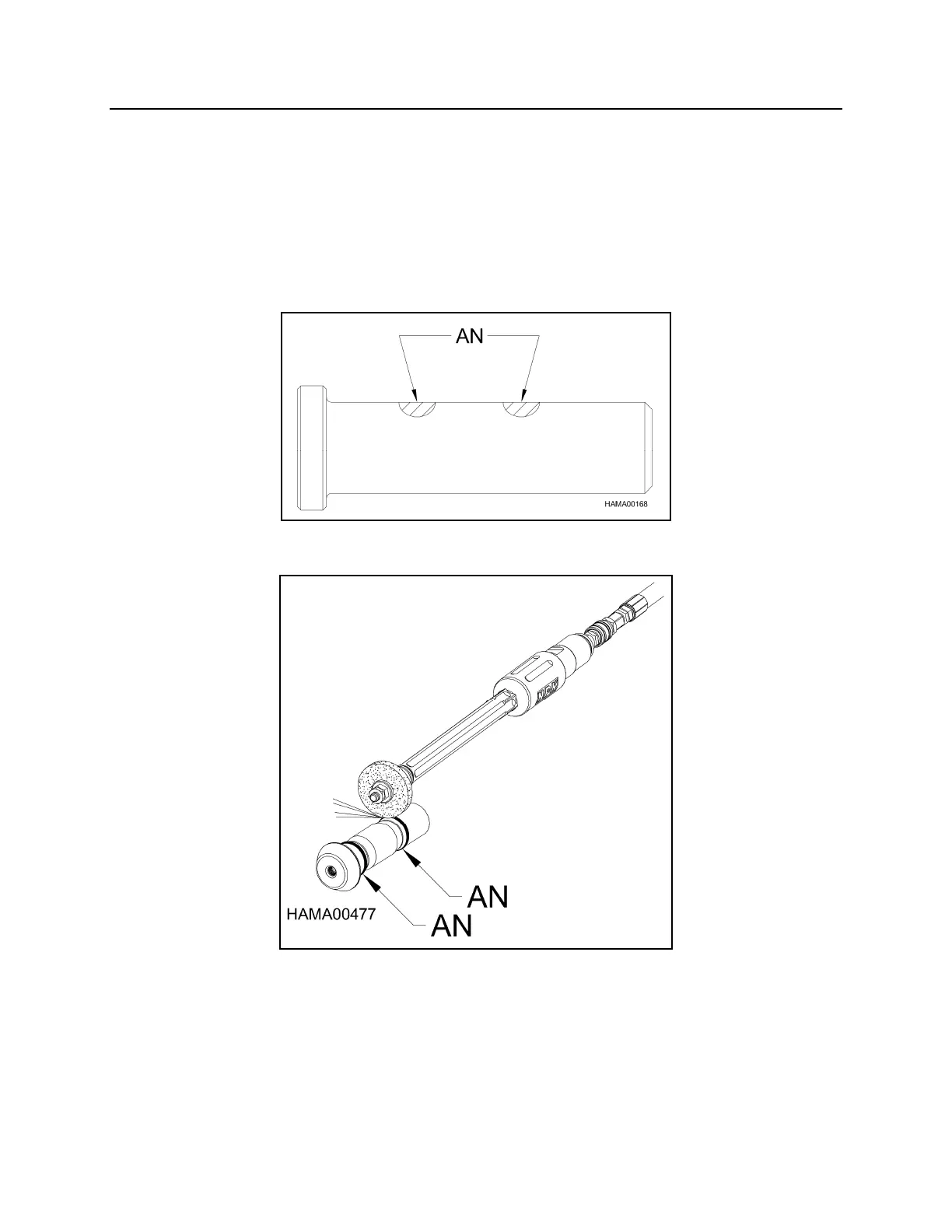

RETAINING PIN
Deformation may occur on the retaining pin in the tool contact area (AN). If this area is
mushroomed, the retaining pin may become difficult to remove. Dress areas shown
(AN) with a grinder.
HAMMER MODELS
GH06, GH07, GH1, GH2/GHS2, GH3, GH4, GH6
