CHANGING THE TOOL
RE-INSTALLATION
1. Clean the retaining pin housing hole and retaining ring groove.
2. Coat the surface of the tool with grease, then install.
3. Apply grease to the retaining ring housing groove.
4. Coat the retaining pin with grease, then install.
5. Install the retaining ring in the following manner:
a. While deforming the retaining ring as shown in Figure 4, partially force it into the
groove.
b. Using the handle of the screwdriver, press the rest of the ring into the groove,
see Figure 5.

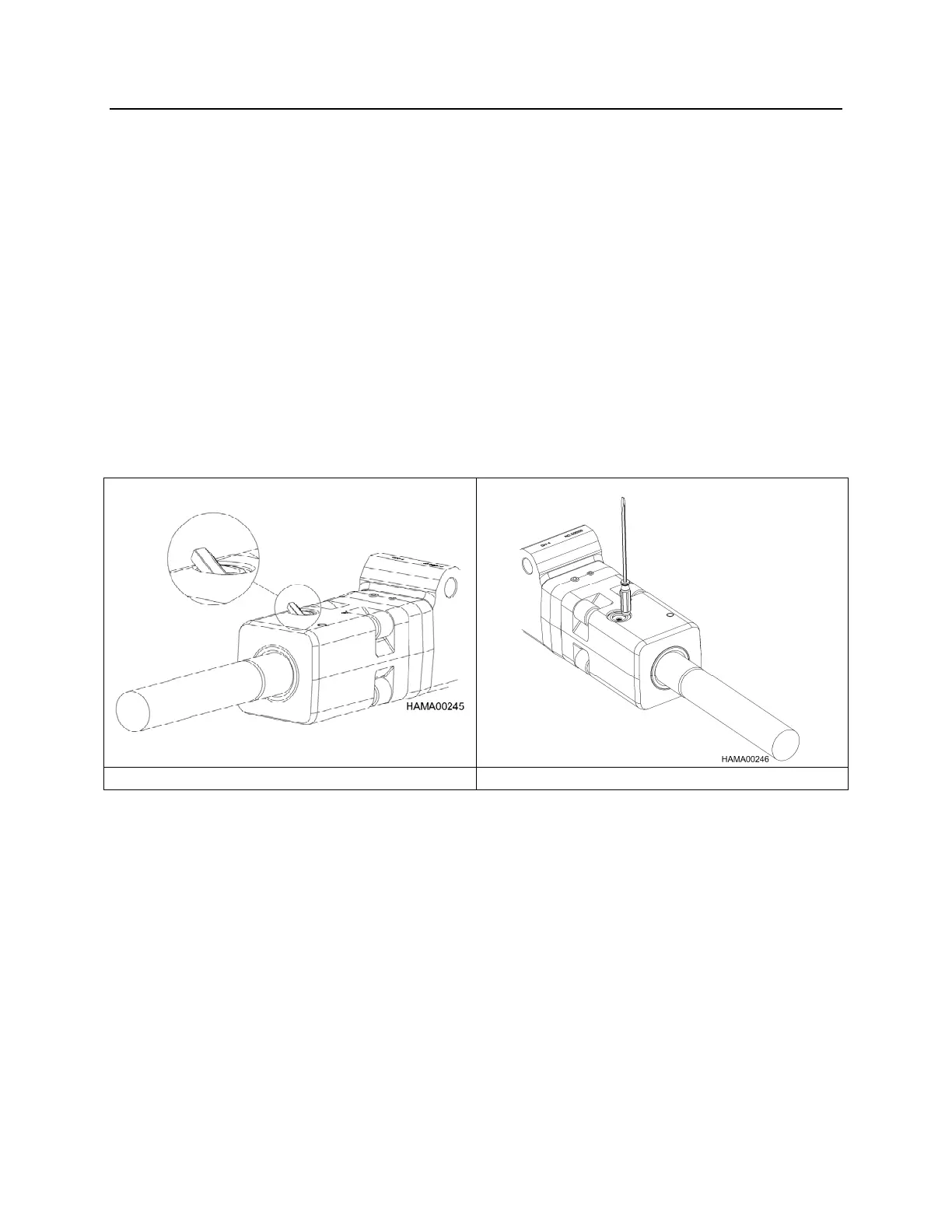

Figure 4 Figure 5
