- 44 -
DISASSEMBLING THE MAIN BODY

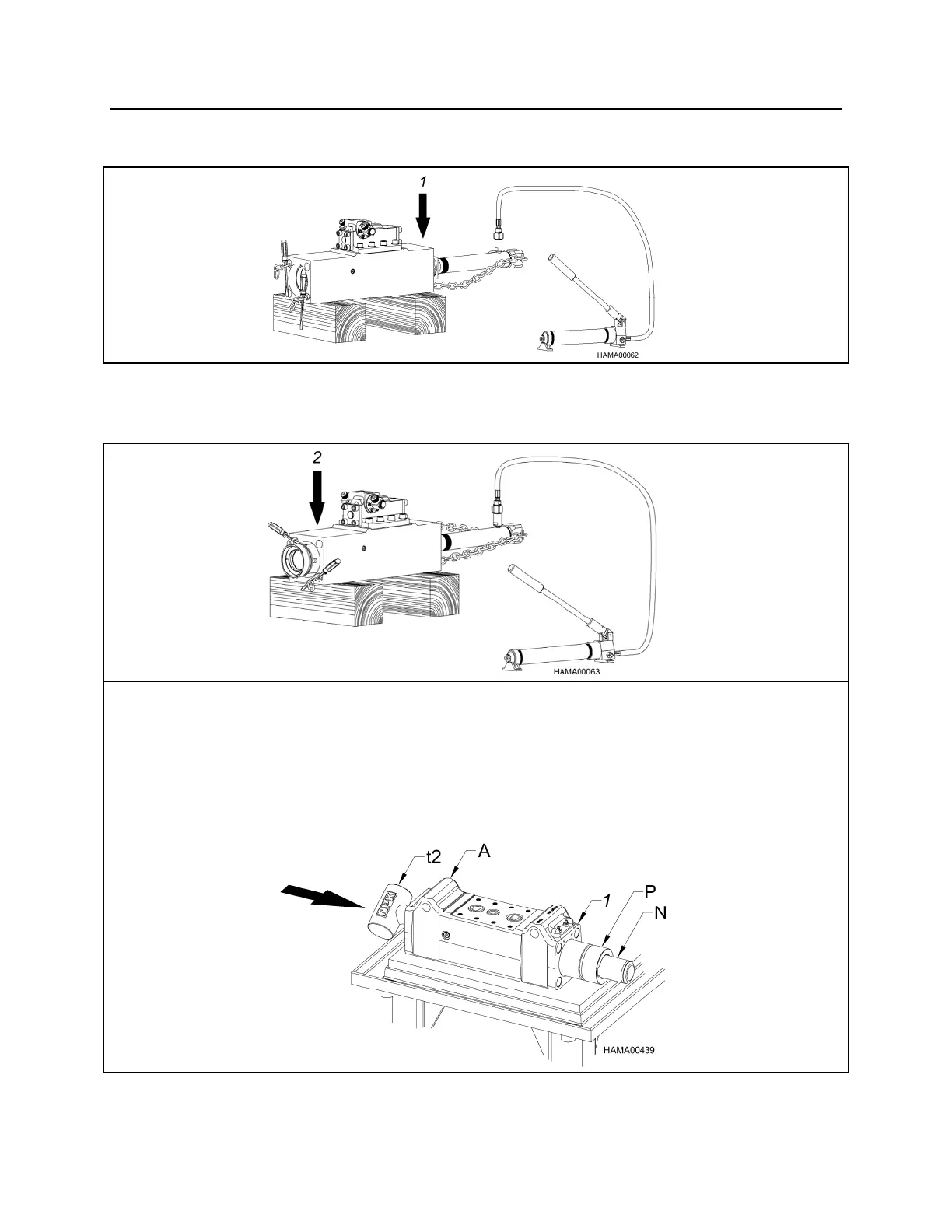

d. Alternate method of piston and sleeve removal - pin chain to diagonally opposite
tie rod holes in main body at tool end (1).
String chain through tie rod holes and wrap around back of portable power unit, NPK
part no. T000-1031.
e. Push piston and sleeves from the tool end of body and out gas end (2).
MODELS GH06 – GH3 HAVE NO “A” SLEEVE
1. GH06 through GH3
Tap the “B” sleeve (P) and the piston (N) out of the hammer body (A) towards
the tool end (1) using a nylon bar or a dead blow hammer handle (t2) as
shown.
