DISASSEMBLY OF MAIN VALVE

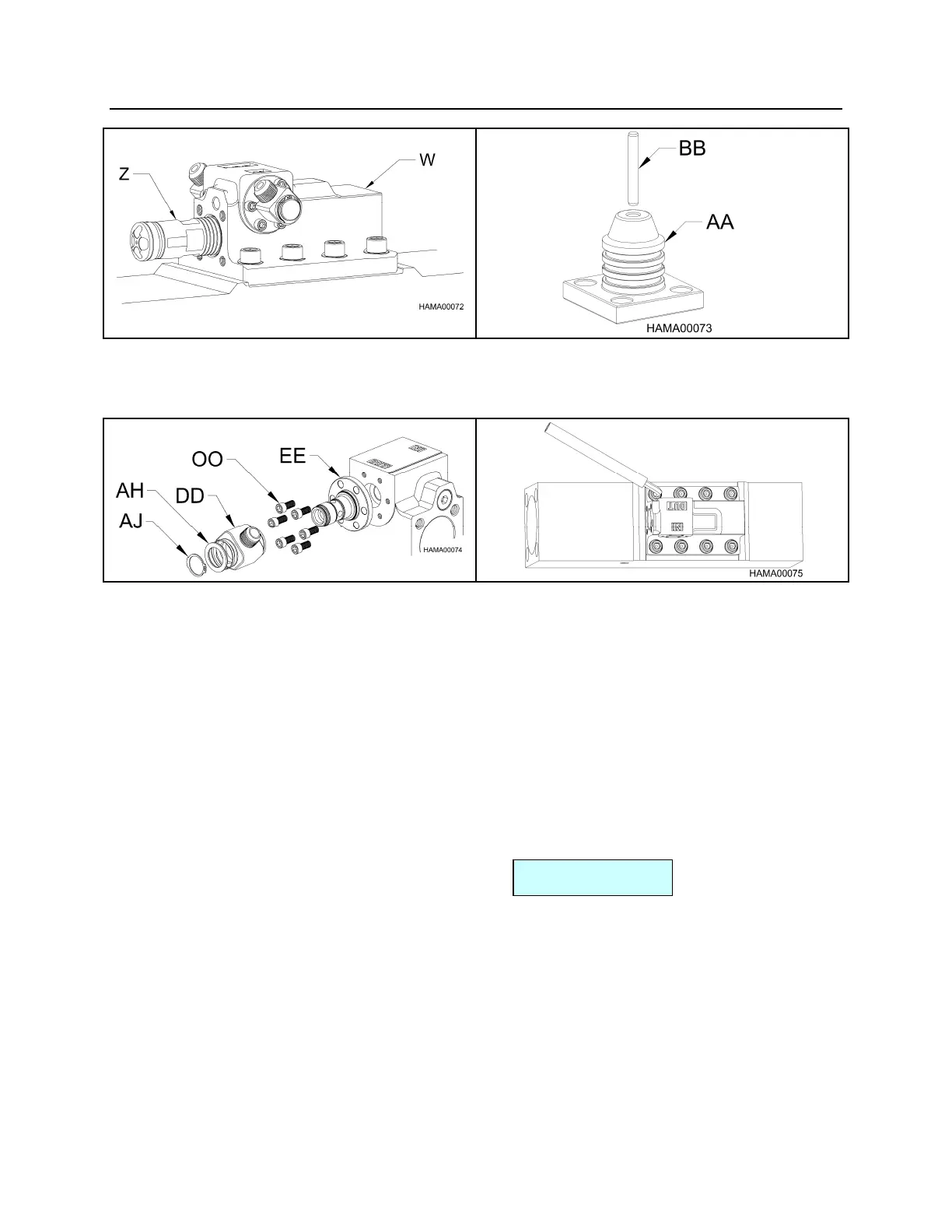

c. Remove the valve spool (Z) from
the valve body (W).
d. Remove the plunger (BB) from the
plunger bushing (AA).
e. Remove the swivel adapters.
1. Remove the snap ring (AJ) with
snap ring pliers, then remove
the washer (AH). Pull the swivel
elbows (DD) off of the swivel
flanges (EE).
2. Remove the cap screws (OO)
from the swivel flanges (EE) and
then remove the swivel flanges
(EE).
f. Remove the main valve body. It is
rarely necessary to remove the
valve body from the main body. If
disassembly is needed for any
reason, proceed as follows.
Attach a 6 ft. (2 meter) long
extension pipe to the hex wrench
and with it loosen each bolt. There
is thread adhesive on each bolt.
Use heat on the head of any bolt
that is found difficult to remove.
DO NOT HEAT EXCESSIVELY!!
DO NOT HEAT THE VALVE
CASE OR MAIN BODY!!
ATTENTION
