REASSEMBLY OF THE HAMMER

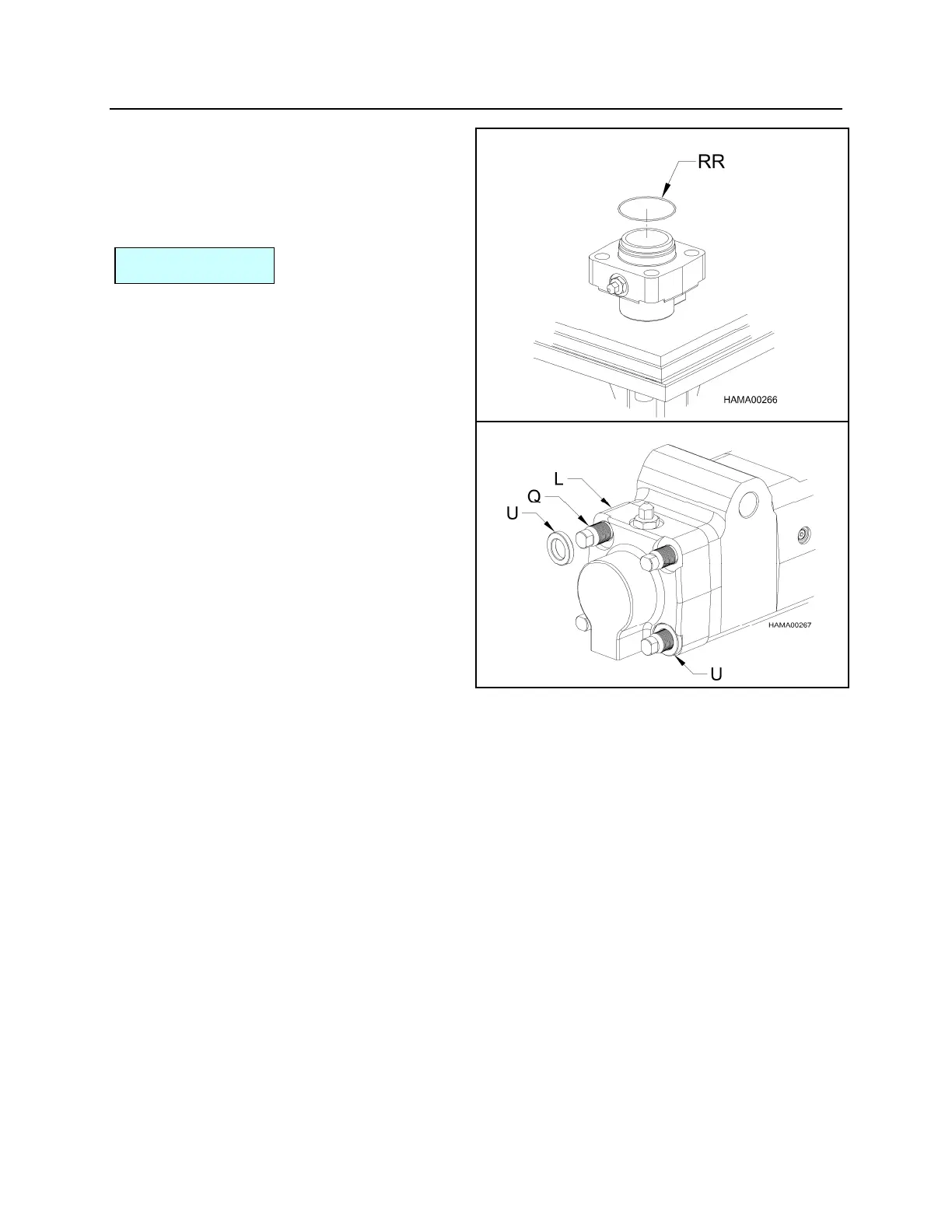

b. Install the o-ring (RR) on the boss of
the gas head. Apply grease on the
surface of the o-ring before
installing it on the gas head.
Be careful pushing the gas head
into position so as not to disturb
the spring washers.
14. Install the gas head (L) and lock
washers (U).
a. Install the lock washers (U) onto tie
rods (Q).
b. Apply anti-seize compound on the
lock washer faces and tie rod
threads.
ATTENTION
