NSK Ultimate XL - Set up of Control Unit; Mounting of Motor; Mounting of Foot Pedal; Connecting of Power Cord

6
1. Mounting of Motor

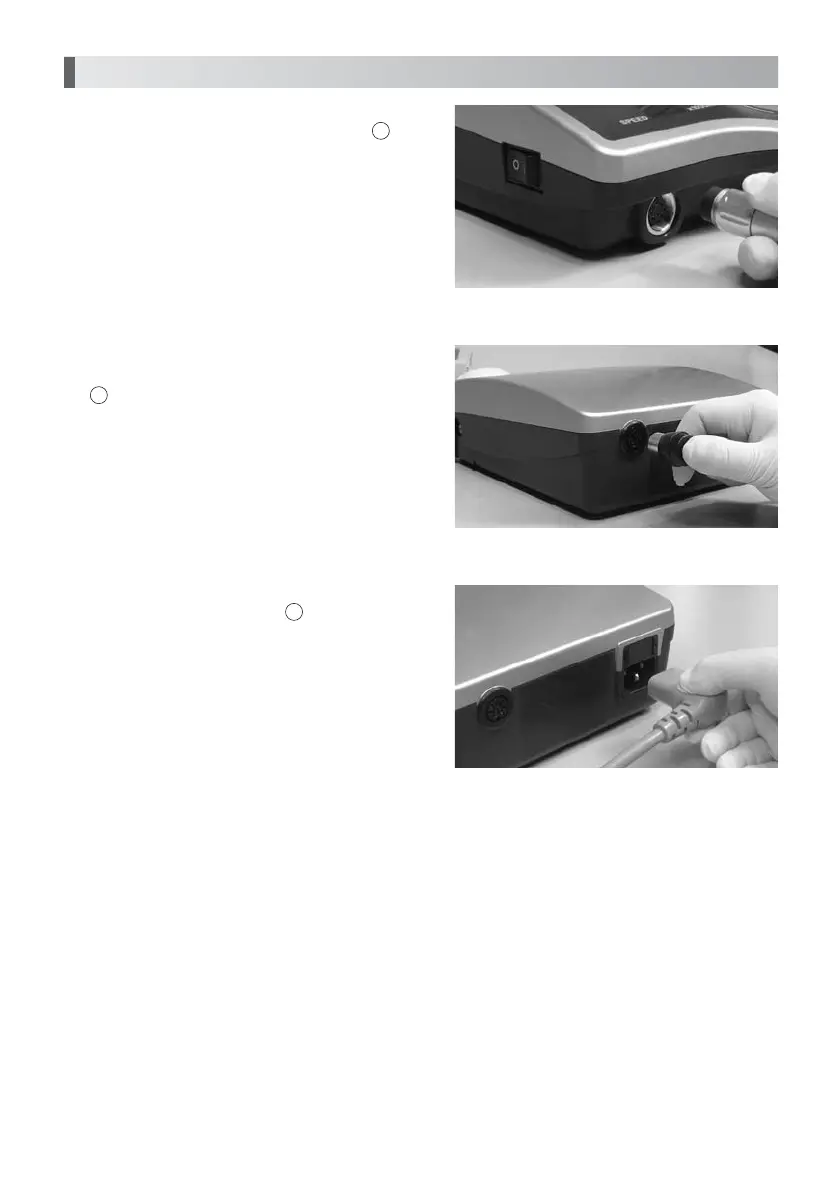

Insert the motor cord plug locator into Motor
Connector aligning it with the groove of the
connector, and tighten the motor cord plug nut
to fix. (Fig. 1)
2. Set up of Control Unit
Fig.1
2. Mounting of Foot Pedal
Insert the Foot Pedal cord plug locator into
Foot Pedal Connector aligning it with the
groove of the connector. (Fig. 2)
Fig.2
3. Connecting of Power Cord
Securely insert the plug of Power Cord into
connector at the back of the unit aligning it with
the configuration. (Fig. 3)
Fig.3
