NTI ENTERPRISE ENVIRONMENT MONITORING SYSTEM
25
Water sensors and contact sensors are each configured much like the temperature and humidity sensors previously described.
Only the Sensor Settings menu (below) is different. Alert settings and data logging menus are as seen in Figure 19 a
nd
F
igure 20.
Instead of threshold and minimum/maximum levels settings, water sensors and contact sensors are either open contact or closed
contact sensors. Therefore, the field “Normal Status” is provided to select the status of the sensor when it is not
in an alert
state. Select between Open contacts, or Close contacts for the normal status of the sensor. (Water sensors are open contact
when not in an alert state.)

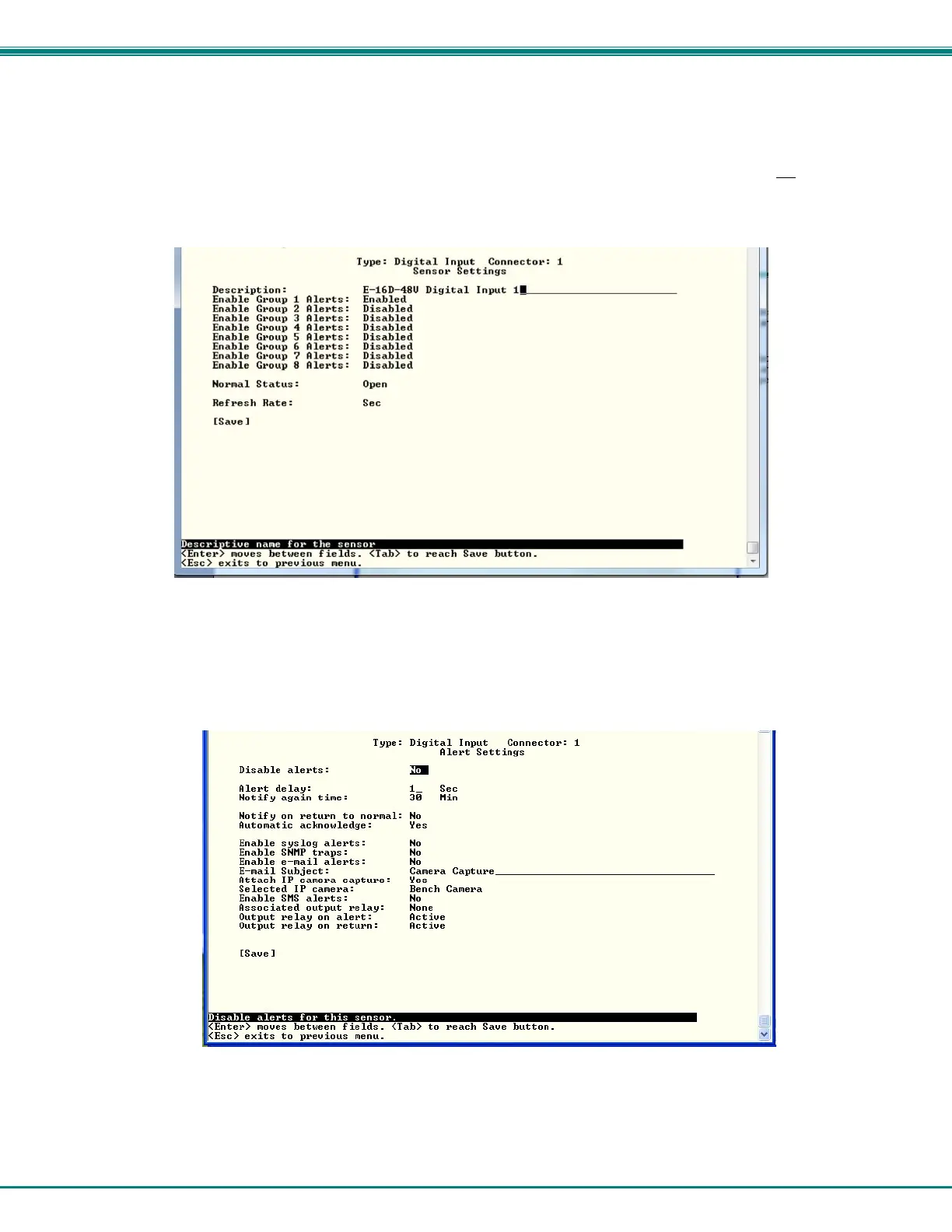

Figure 22- Digital Input Sensor Settings Menu
From the Alert Settings menu, the user can enable/disable alert messages to be sent when the sensor is in an alert state and
configure when and how alert messages are sent.
Figure 23- Digital Input Alert Settings
