Numatic TTB 4055 - Changing the Floor Tool Blades; Floor-Tool Overview

16
! !
ALWAYS ENSURE THAT THE BATTERY IS DISCONNECTED PRIOR TO ANY
MAINTENANCE
Note:
The blades are designed to be reversible, thus extending their useful working life.

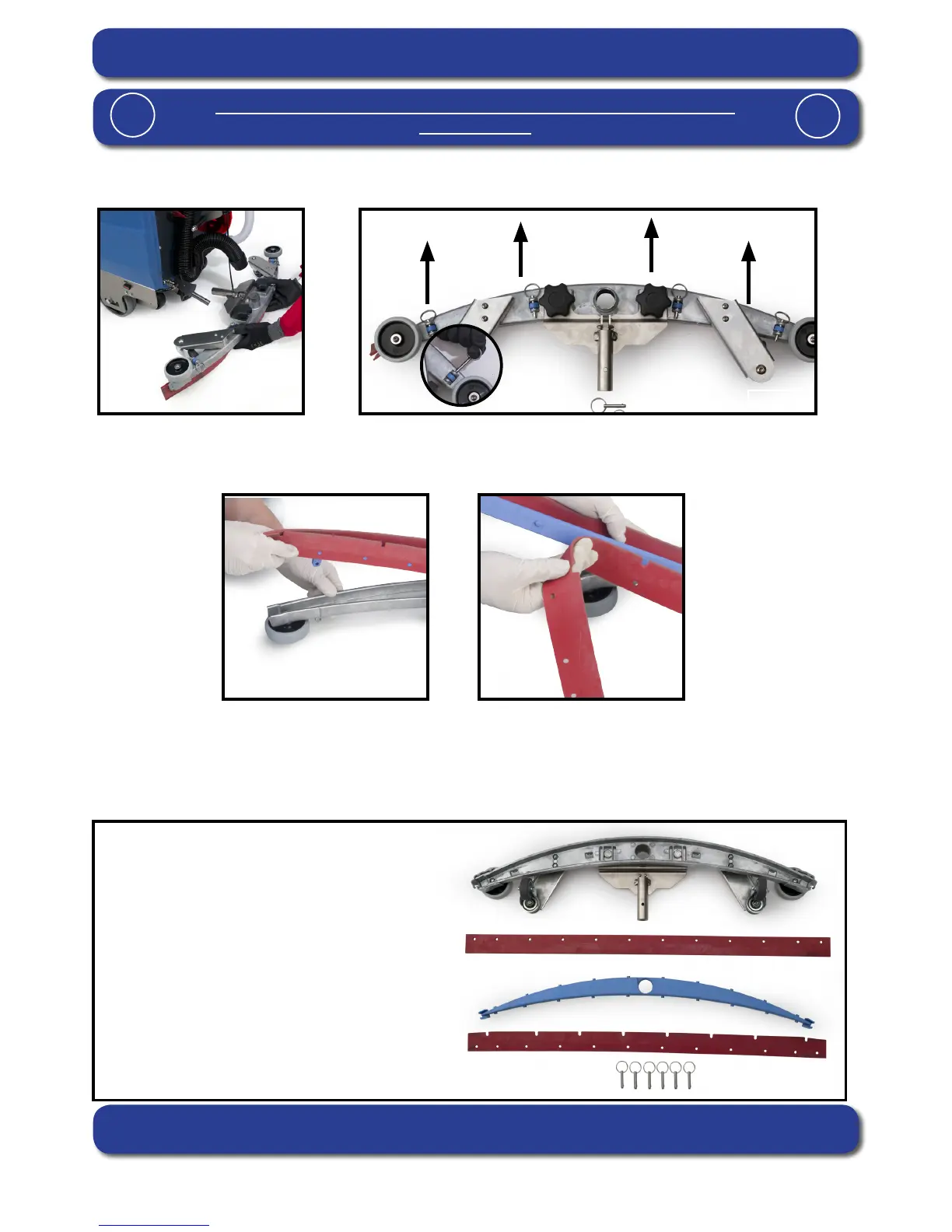

Changing the Floor Tool Blades
The oor-tool
Fig.47
Fig.48
Fig.46
To clean the oor-tool, remove securing-pin and pull-free from the holder, disconnect the lifting strap
(see Page 11).
Rinse the oor-tool assembly with clean water and ret.
Periodically the oor-tool blades should be examined and checked for wear and damage.
The blade removal is easy. Simply start by removing the four retaining pins (see Fig.46), turn the
oor-tool over and separate the blade carrier from the body (see Fig.47).Peel away the blades from their locating
lugs (see Fig.48) and examine or renew as required.
Replacement is a reversal of the removal process.
Floor-tool overview
1. Floor-tool main body
2. Rear blade
3. Blade carrier
4. Front blade (slotted)
5. Retaining pins x 4
1
2
3
4
5
The TTB range is provided with the aluminium oor-tool shown.
