2 Run Models
2.1 Examples Library & Help
NXP’s Model Based Design Toolbox comes with an Examples Library collection that let you
test different MCU on-chip modules and run complex applications.

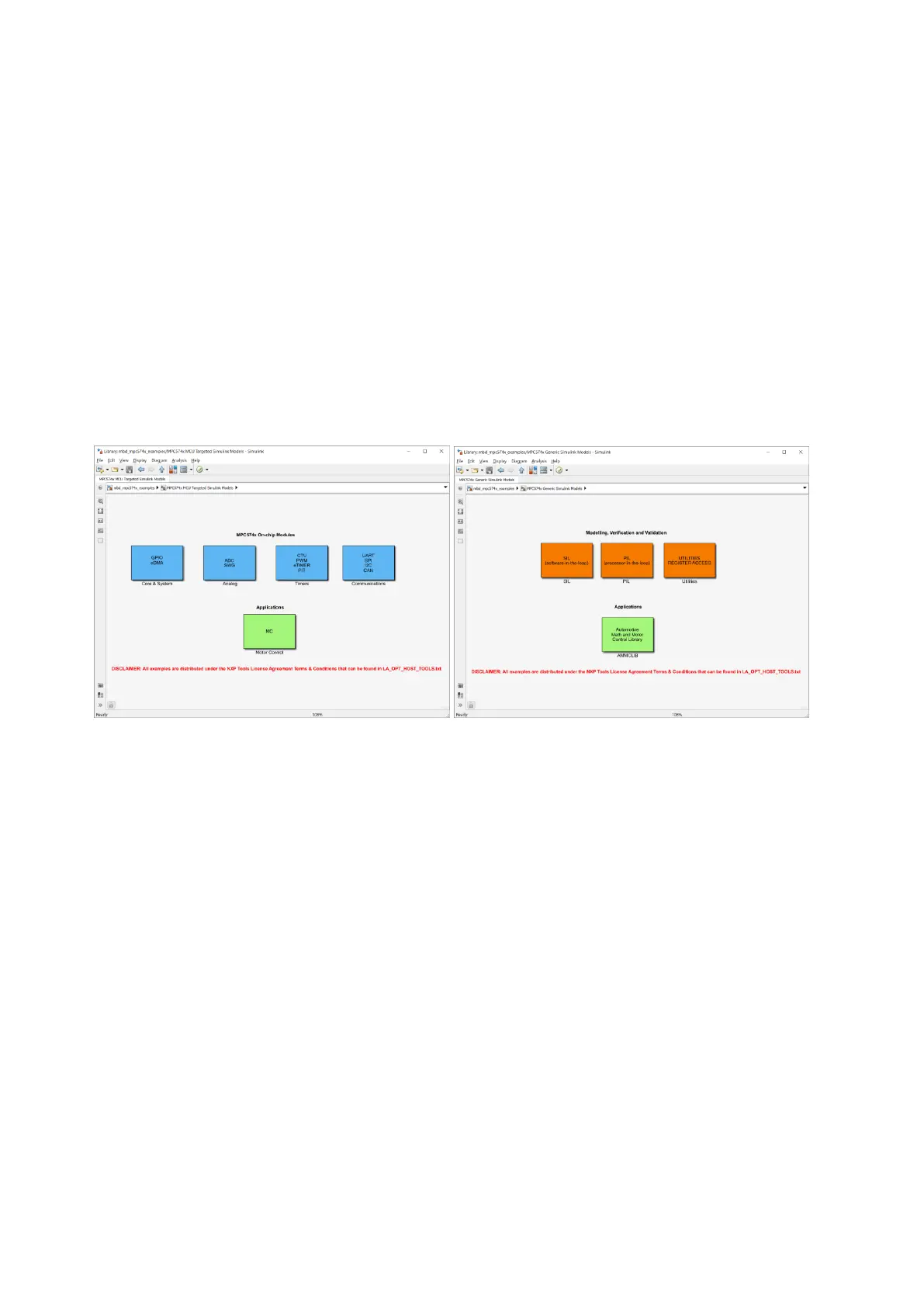

The Examples Library mbd_mpc574x_examples.mdl can be opened from “{Model
Based Design Install Directory}\MPC_Examples\” folder.
Note: the example library is divided into two sections: custom & generic examples. The generic
examples can be executed on all the processors and boards supported with none or minimal
changes. The custom examples are targeted for a specific processor and board and are highly
dependent on peripherals and pins available.
Each category contains multiple examples that showcase different Model-Based Design
Toolbox capabilities that are clarified in three layers:
- On-chip modules and peripherals examples covers the basic functionalities of the MCU;
- Modelling, Verification and Validation examples covers the SIL, PIL and additional
blocks supported by toolbox to help faster prototyping;
- Applications covers the AMMCLIB and Motor Control scenarios;
The examples are also available from standard MATLAB Help for NXP’s Model-Based Design
Toolbox Example
