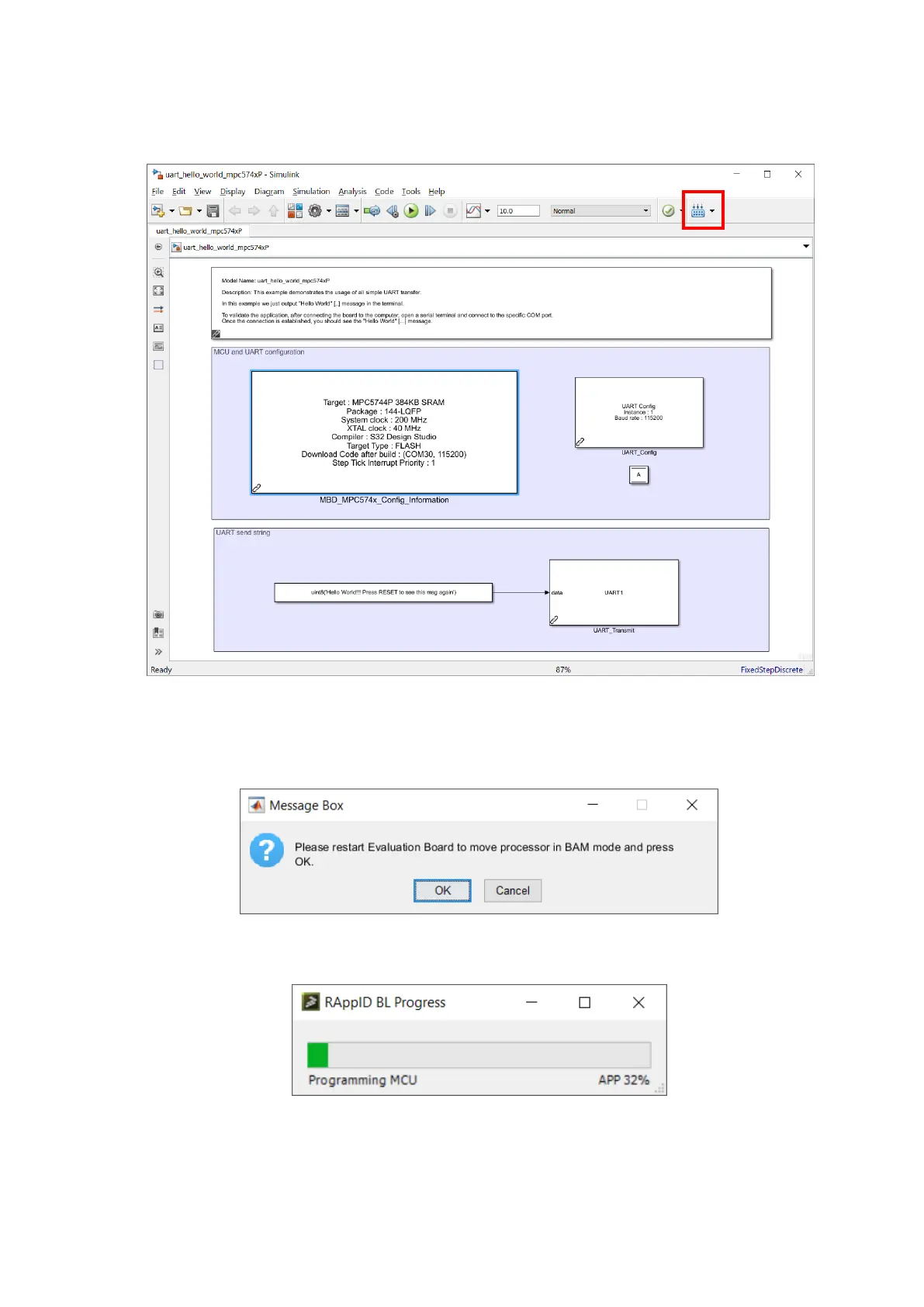

3. Press Build Model button and wait until the code is generated, compiled and
downloaded to the evaluation board.
4. Wait until the application is built and the following message is displayed on the screen.
Press the board reset button SW3 and then (within 5 seconds) press the OK button to
start the application programming to the target.
5. Wait until the BootLoader finishes the flasing of the application to the target processor.
6.
7. Open any UART terminal for the virtual COM port assinged and set up the baud rate at
115200, data bits 8 and parity none.
