MPC5777C EVB User Guide, Rev. 1
9 NXP Semiconductors

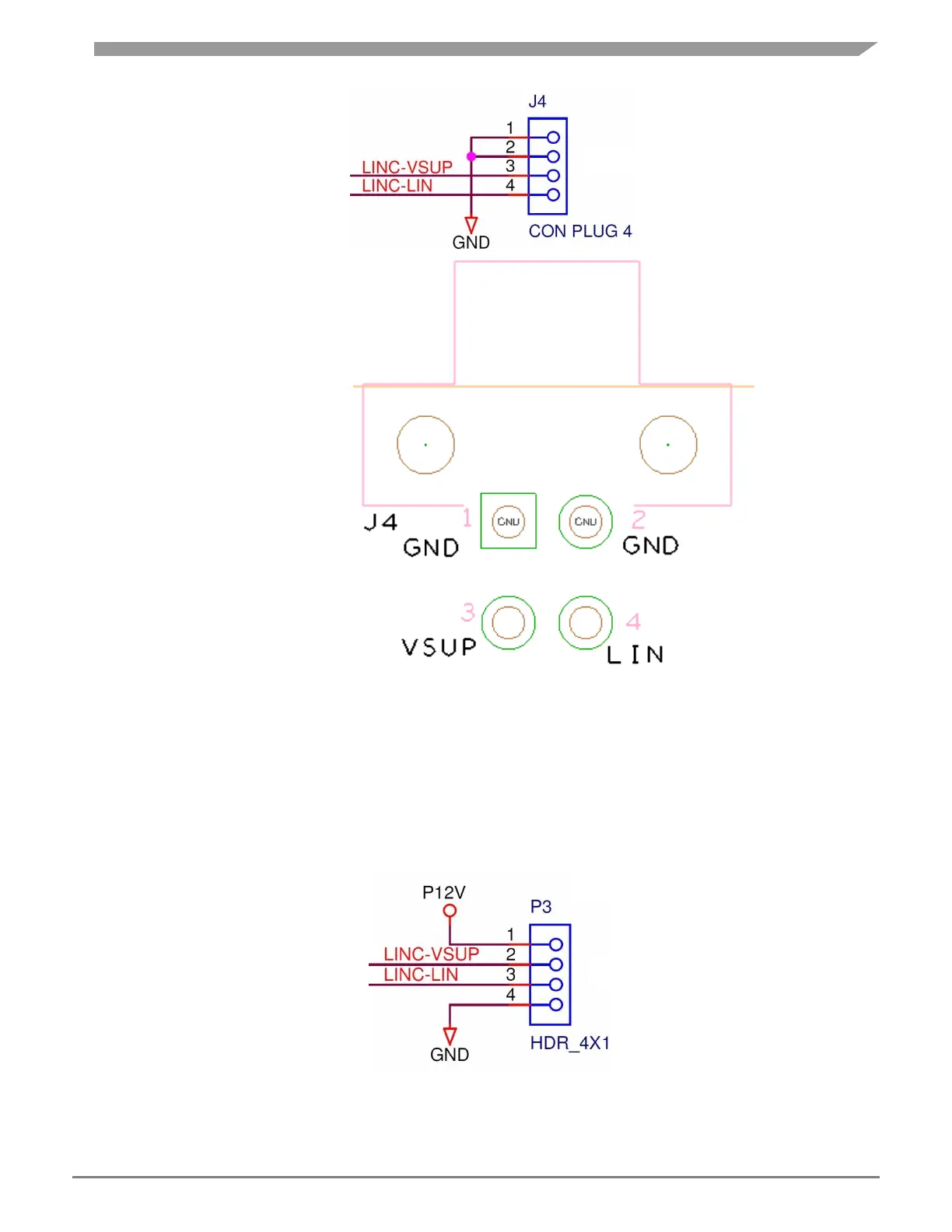

Figure 8: LIN Molex connector
For flexibility, the LIN transceiver is also connected to a standard 0.1 in. connector (P3) at the top side
of the PCB as shown in Figure 9. For ease of use, the 12 V EVB supply is fed to pin1 of P3 and the
LIN transceiver power input to pin2. This allows the LIN transceiver to be powered directly from the
EVB supply by simply linking pins 1 and 2 of connector P3 using a 0.1 in. jumper shunt.
Figure 9: LIN 4pin header interface connector
