DOC-13000 Rev. E 7–29
Connex500/350 User Guide

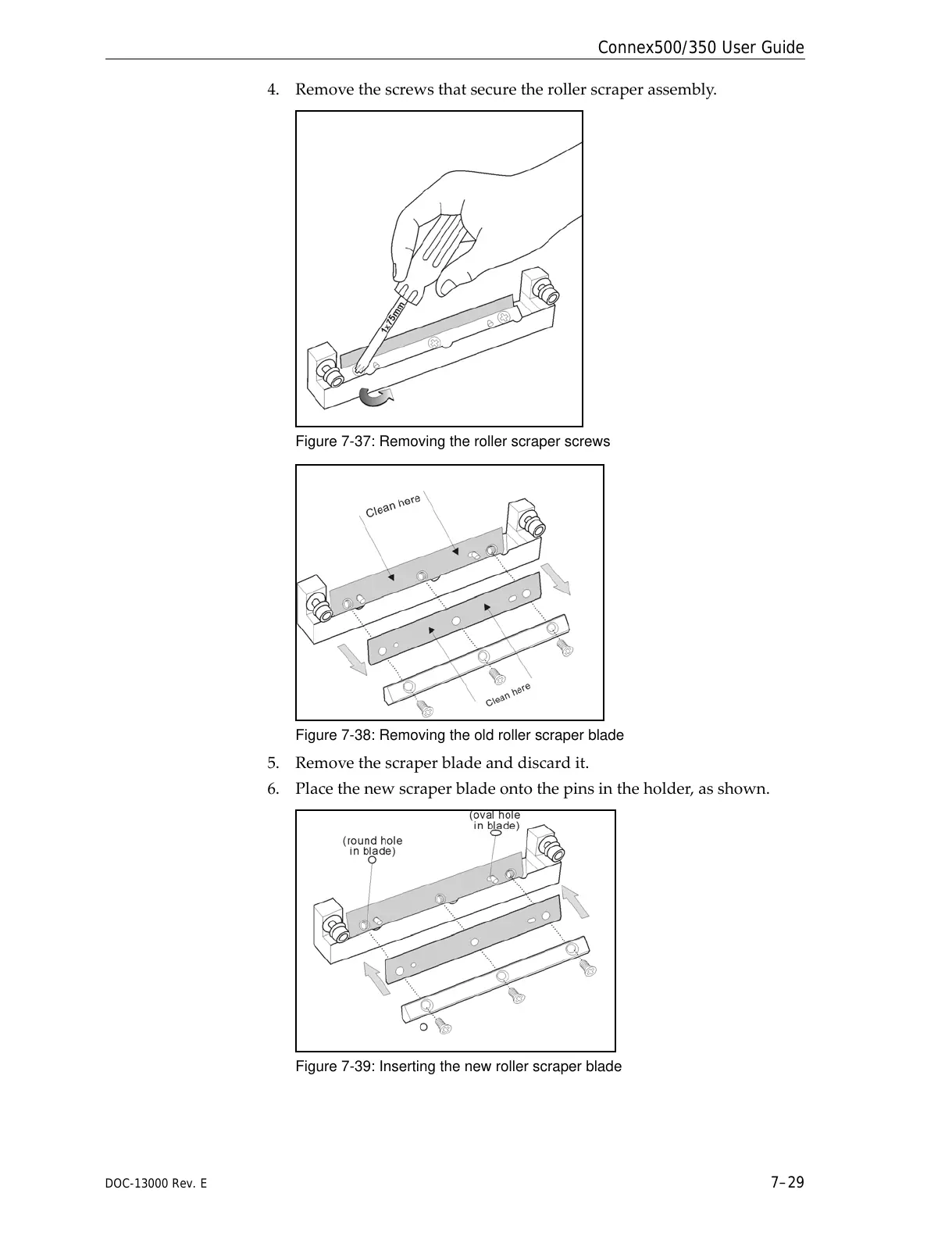

4. Removethescrewsthatsecuretherollerscraperassembly.
Figure 7-37: Removing the roller scraper screws
Figure 7-38: Removing the old roller scraper blade
5. Removethescraperbladeanddiscardit.
6. Placethenewscraperbladeontothepinsintheholder,asshown.
Figure 7-39: Inserting the new roller scraper blade
