TheConnex500/350printerusesoneortwomodel‐materialcartridgesand
onesupport‐materialcartridgetoproducemodels.Ifadditionalcartridges
areinstalledandtheyarenotneededforthecurrentprintjob,theprinter
interfaceindicateswhicharebeingused:
• Bluecartridge—usedfortheprintjob
• Graycartridge—notusedfortheprintjob
Youcanmonitorprinterstatusindicatorsbyswitchingtheprinterinterface
display.Todothis,clickthedisplaytogglebuttonintheprinterinterface
screen.

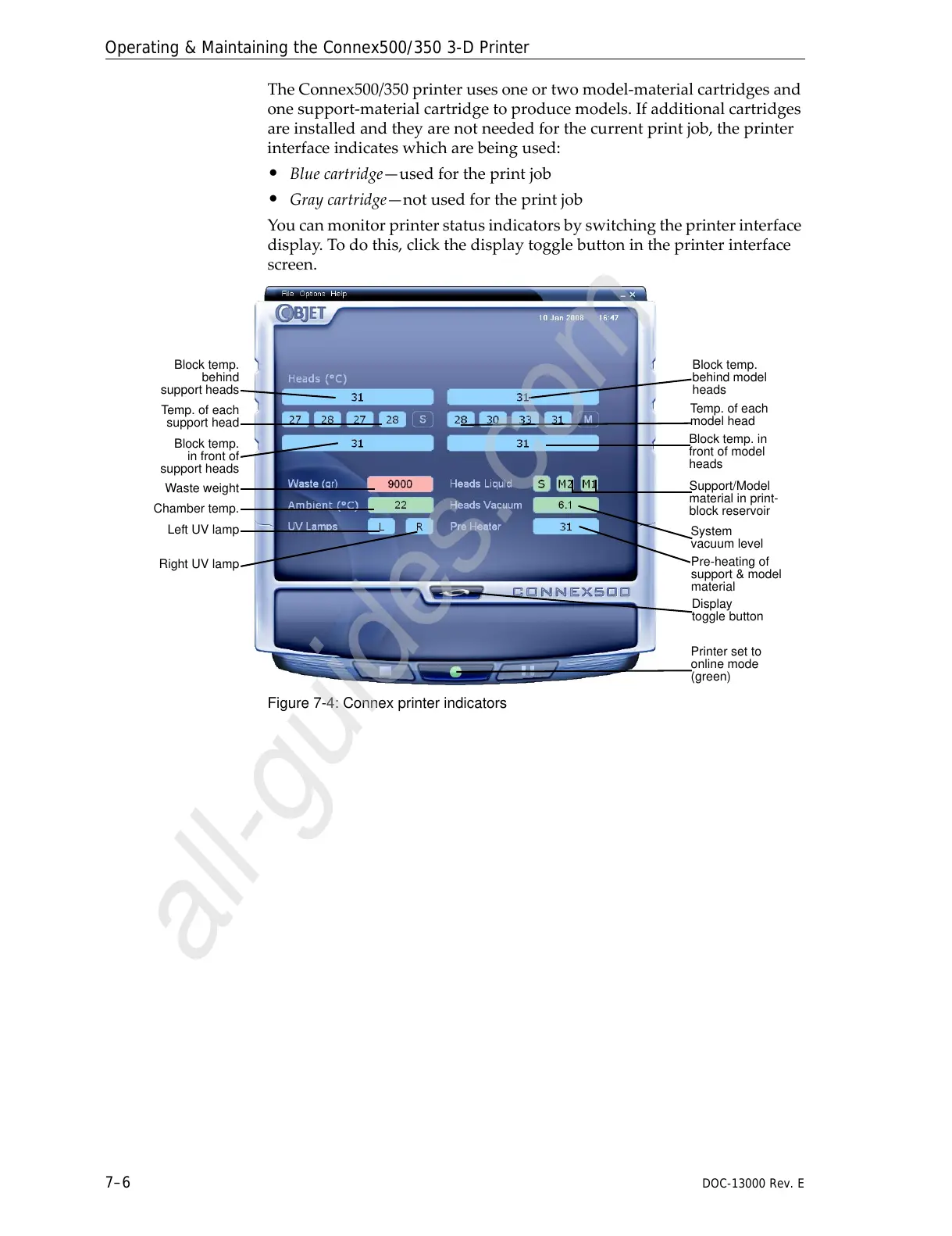

Figure 7-4: Connex printer indicators
Block temp.
in front of
support heads
Block temp.
behind
support heads
Waste weight
Display
toggle button
Printer set to
online mode
(green)
Temp. of each
support head
Chamber temp.
Left UV lamp
Right UV lamp
Block temp.
behind model
heads
Temp. of each
model head
Block temp. in
front of model
heads
Support/Model
material in print-
block reservoir
System
vacuum level
Pre-heating of
support & model
material
