12 Measuring Procedure
Instruction Manual Myopia Master® (G/68100/EN Rev04 0820) 41 / 92
12.6 PARK + AXL and results
If your device is equipped with a pachymeter the corneal thickness can be
measured additionally.
Select the PARK + AXL mode.
If the measurement mode were executed, the following overview screen
appears for the examination of the right eye:
Print and/or save the data, sec. 12.8, page 44.

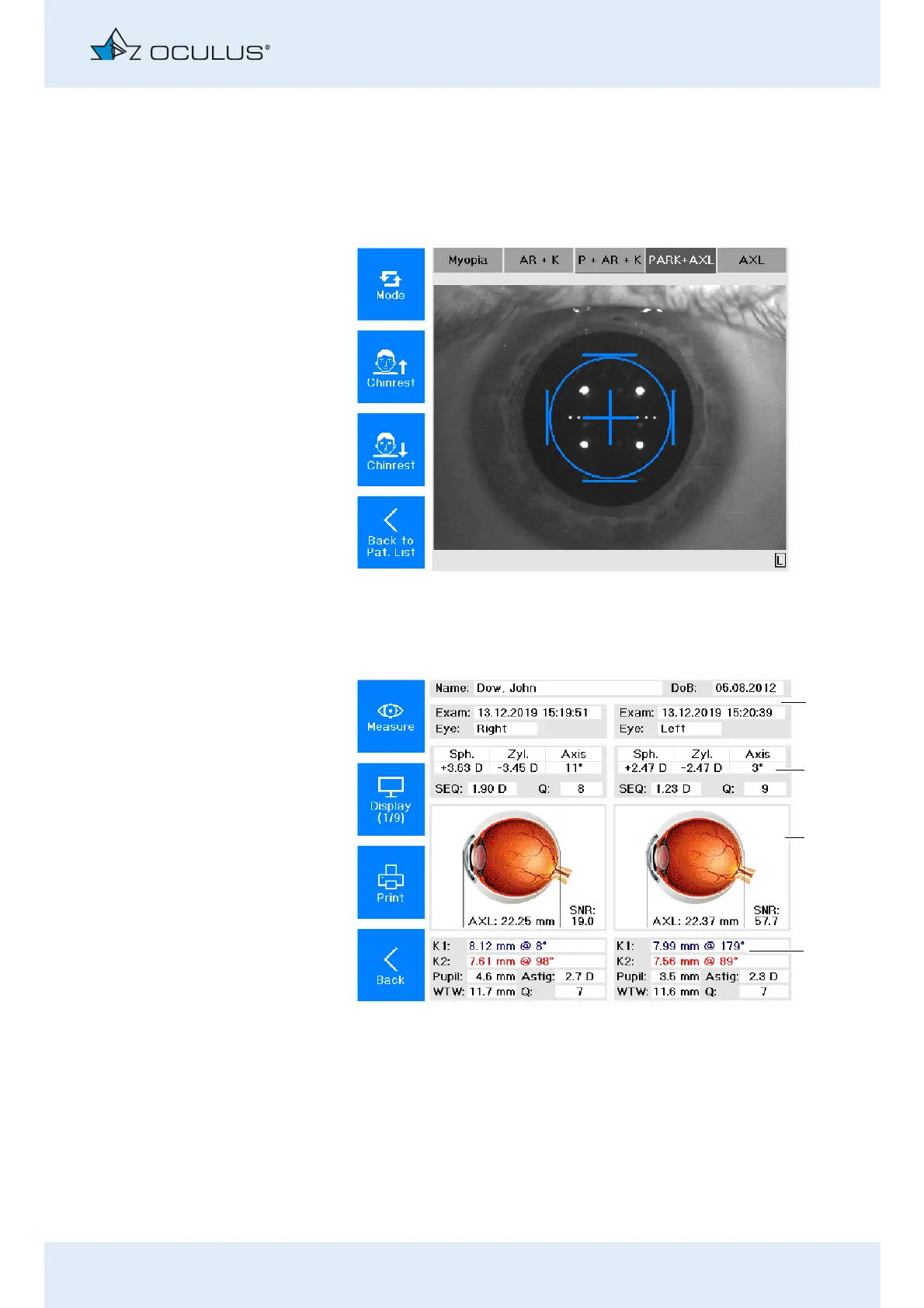

Fig. 12-14: Measuring mode PARK + AXL
1 Patient and examination data 3 AXL images and values
2 Refraction values 4 Keratometer values
Fig. 12-15: Overview AXL with images
