12.7 Axial length and results
To measure the axial length of the eye only select the AXL mode.
 Select the AXL mode.

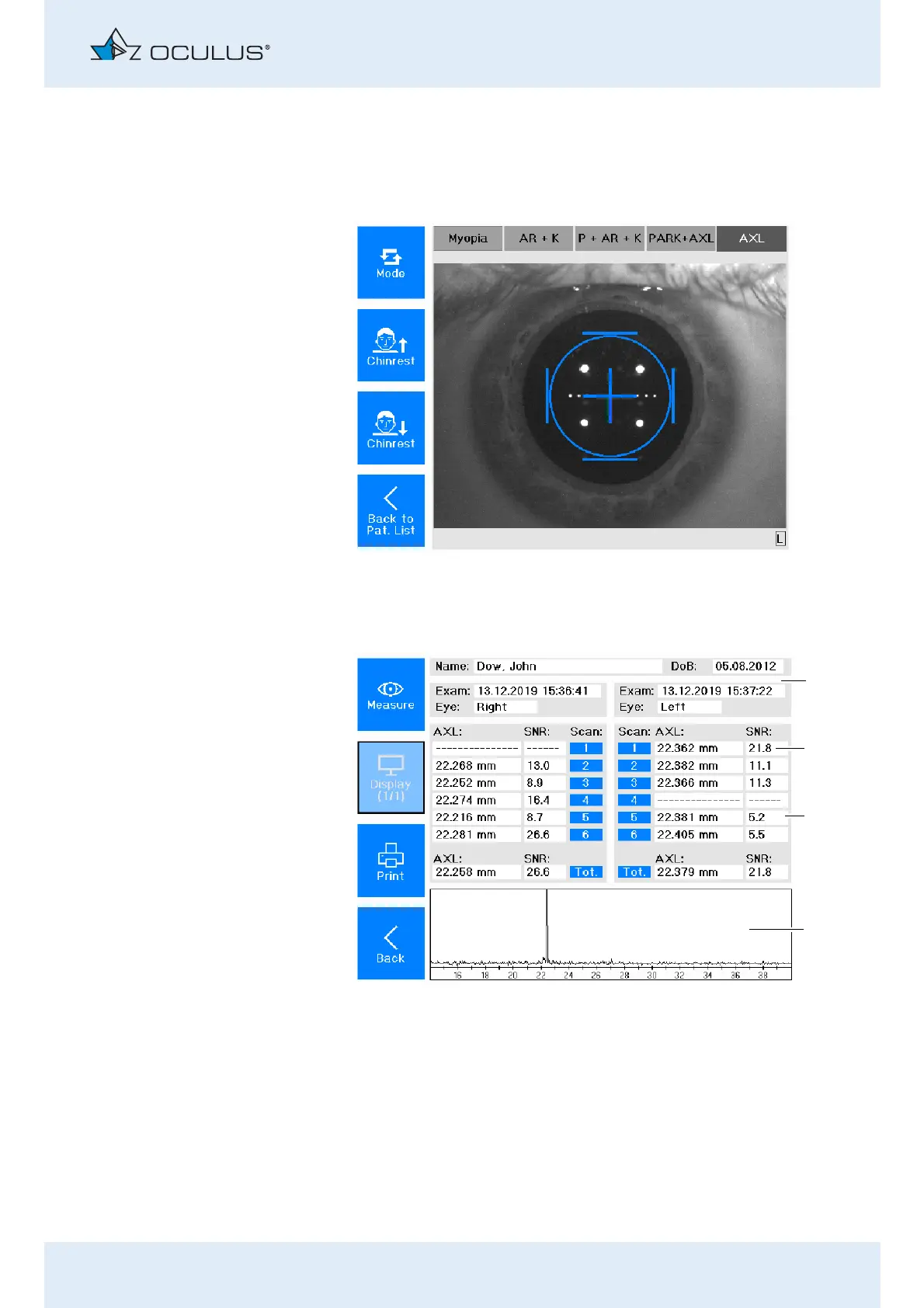

If the measurement mode were executed, the following overview screen
appears for the examination of the right eye:
 Print and/or save the data, sec. 12.8, page 44.
 AXL: Axial length measurement value. The final result of the axial
length is calculated just only from all feasible SNR peaks.
It´s display in a single line.
 SNR: Signal to noise Ratio of the axial length value
Fig. 12-16: Measuring mode AXL
1 Patient and examination data 3 SNR values
2 AXL values 4 Graph axial length measurement
Fig. 12-17: Overview AXL measurement display
