3 10.0
[4]
[3]
[1]
[2]
[3]
[4]

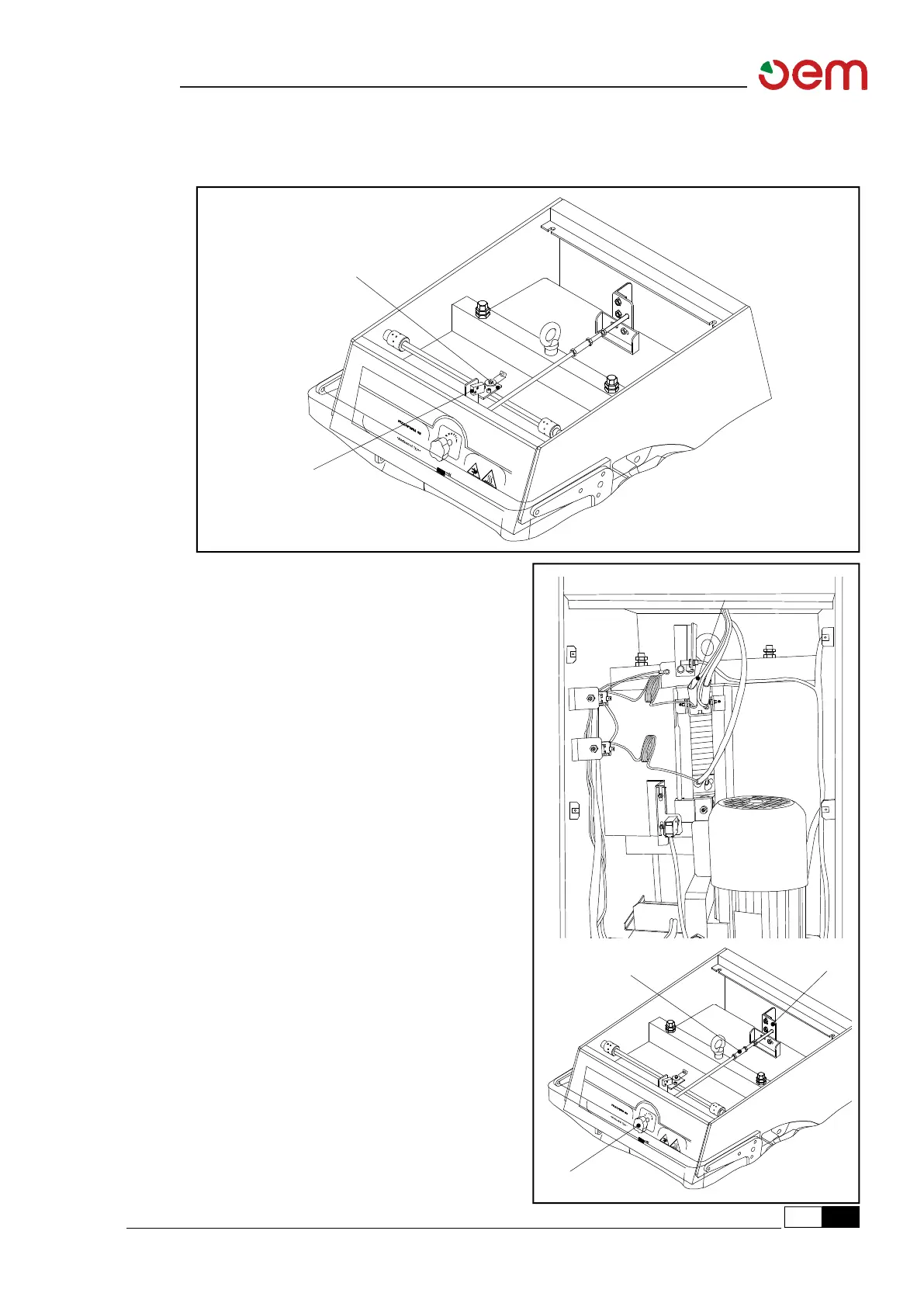

The opening of the hood starts, by the rotation of the plate [3], the micro-switch [4] causing the
stop of the plate. A new closing of the hood with the push button pressed, causes the inversion
of the electrical motor rotation direction.
Protections
Besides, for the operator’s safety, there are:
two plastic fixed side protections;
plastic extensible protection placed around
the driving cylinder of the lower plate;
fixed protections placed around the
movable parts of the machine.
Distance between the plates and movement
of the lower plate
The distance between the plates is adjusted by
lifting/lowering the sensor [1] thanks to a rack
device [2] which is started, with a bar [3], by
a rotation control [4].
