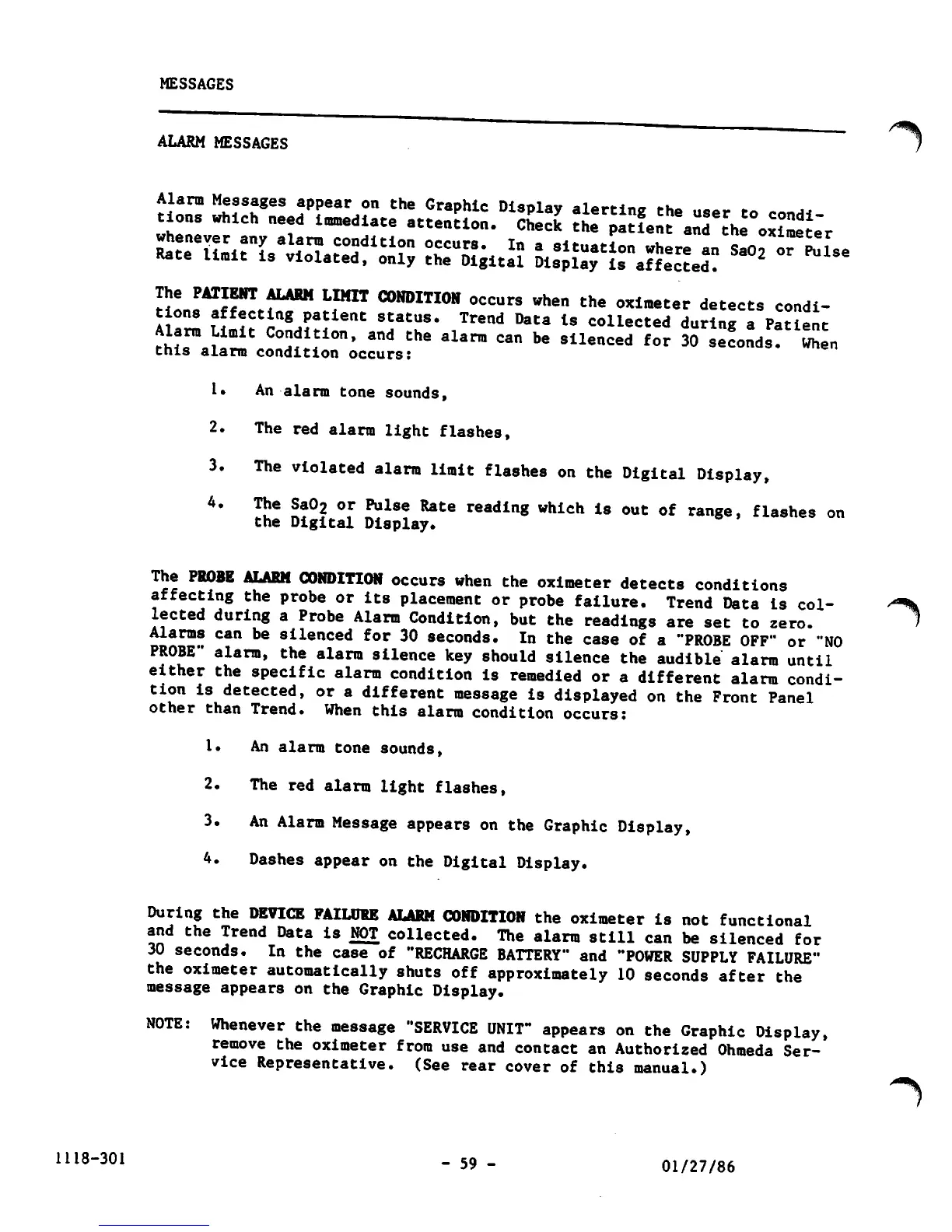

MESSAGES
ALARM MESSAGES
The PATIENT ALARM LIMIT CONDITIO* occurs when the oximeter detects condi
tions affecting patient status. Trend Data is collected during" Patent
Alarm Limit Condition, and the alarm can be silenced for 30 seconds? 5n"en
tnis alarm condition occurs:
1. An alarm tone sounds,
2. The red alarm light flashes,
3. The violated alarm limit flashes on the Digital Display,
4. The Sa02 or Pulse Rate reading which is out of range, flashes on
the Digital Display.
The PROBE ALARM CONDITION occurs when the oximeter detects conditions
affecting the probe or its placement or probe failure. Trend Data is col
lected during a Probe Alarm Condition, but the readings are set to zero.
Alarms can be silenced for 30 seconds. In the case of a "PROBE OFF" or "NO
PROBE" alarm, the alarm silence key should silence the audible alarm until
either the specific alarm condition is remedied or a different alarm condi
tion is detected, or a different message is displayed on the Front Panel
other than Trend. When this alarm condition occurs:
1» An alarm tone sounds,
2. The red alarm light flashes,
3. An Alarm Message appears on the Graphic Display,
4. Dashes appear on the Digital Display.
During the DEVICE FAILURE ALARM CONDITION the oximeter is not functional
and the Trend Data is NOT collected. The alarm still can be silenced for
30 seconds. In the case of "RECHARGE BATTERY" and "POWER SUPPLY FAILURE"
the oximeter automatically shuts off approximately 10 seconds after the
message appears on the Graphic Display.
NOTE: Whenever the message "SERVICE UNIT" appears on the Graphic Display,
remove the oximeter from use and contact an Authorized Ohmeda Ser
vice Representative. (See rear cover of this manual.)
- 59 - 01/27/86
/^\
