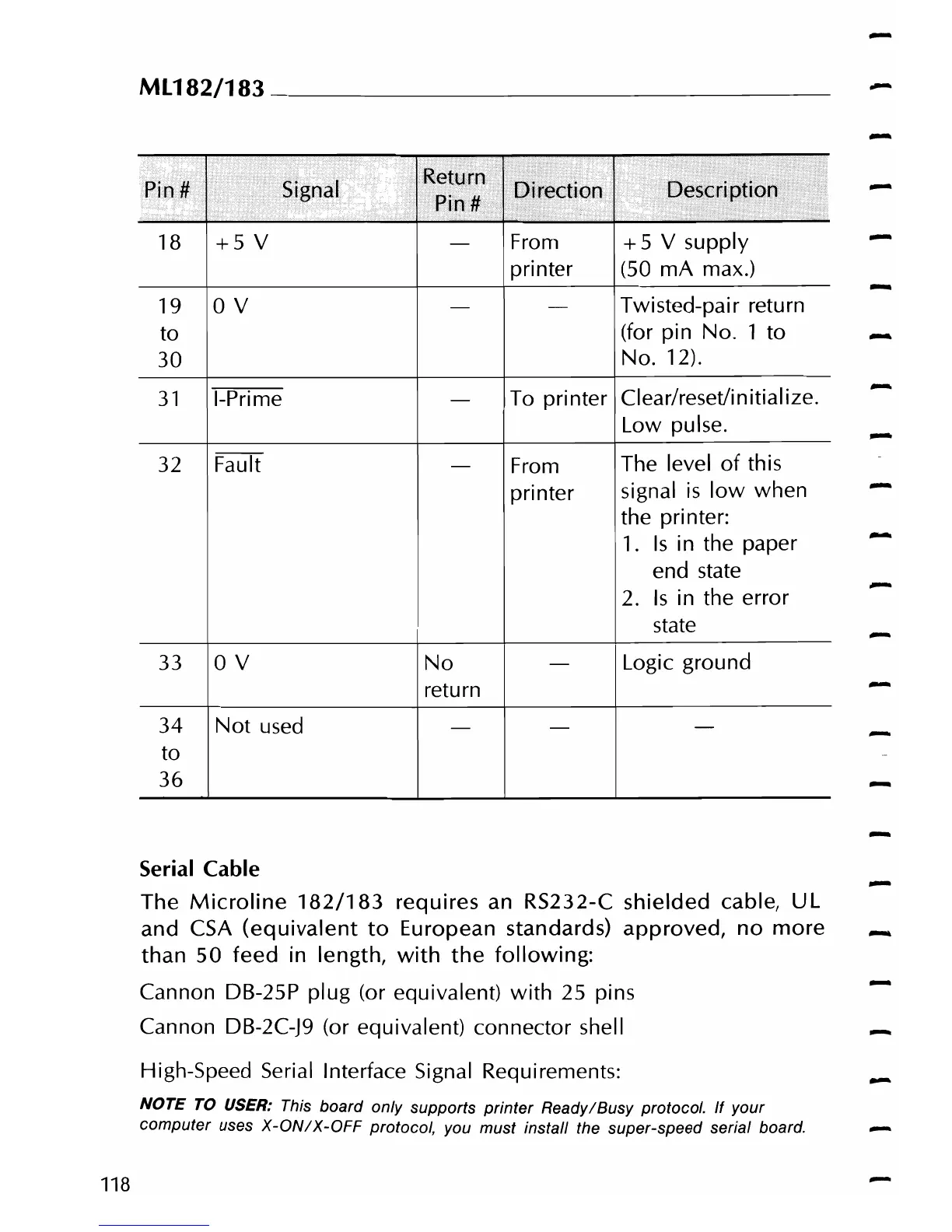

ML182/183
________________
_
Pi
18
+5
V
From
printer
+ 5 V supply
(50
mA
max.)
19
to
30
OV
Twisted-pair return
(for pin
No.1
to
No. 12).
31
I-Prime
To printer
Clear/resetli n itial ize.
Low pulse.
32
Fault
From
printer
The level
of
this
signal
is
low
when
the pri nter:
1.
Is
in the paper
end state
2.
Is
in the error
state
33
OV
No
return
Logic ground
34
Not
used
to
36
Serial Cable
The
Microline
182/183
requires an RS232-C
shielded
cable,
UL
and CSA
(equivalent
to
European standards)
approved,
no
more
than
50
feed
in length,
with
the
following:
Cannon DB-25P plug (or equivalent)
with
25 pins
Cannon DB-2C-J9 (or equivalent) connector shell
High-Speed Serial Interface Signal Requirements:
NOTE
TO
USER: This board only supports printer Ready/Busy protocol.
If
your
computer
uses X-ON/X-OFF protocol, you must install the super-speed serial board.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
118
