沖データ企業秘密・OkiDataCONFIDENTIAL 
45530603TX - 30/130
(7) Power control
Self-power device
(8) USB logo
(b) Network Interface
1000BASE-T/100BASE-TX/10BASE-T
Network Protocols
TCP/IP:
Network Layer: ARP, IP, ICMP, IPv6, IPSec
Transport Layer: TCP, UDP
Application Layer: LPR, PORT9100, FTP, HTTP, HTTPS, IPP,
SNMPv1/v3, TELNET, DHCP/BOOTP, DNS, DDNS,
WINS, UPnP, Bonjour, SNTP, SMTP, POP,
WindowsRally (WSD Print, LLTD)
NBT:
SMB, NetBIOS over TCP
ETHERTALK:
ELAP, AARP, DDP, AEP, NBP, ZIP, RTMP, ATP, PAP
IEEE802.1X
EAP-TLS、PEAP
Interface Signals
Pin No. Signal Name Direction Function
1 TXRX+(0) Interactive Transmitting and receiving Data 0 (+)
2 TXRX-(0) Interactive Transmitting and receiving Data 0 (-)
3 TXRX+(1) Interactive Transmitting and receiving Data 1 (+)
4 TXRX+(2) Interactive Transmitting and receiving Data 2 (+)
5 TXRX-(2) Interactive Transmitting and receiving Data 2 (-)
6 TXRX-(1) Interactive Transmitting and receiving Data 1 (-)
7 TXRX+(3) Interactive Transmitting and receiving Data 3 (+)
8 TXRX-(3) Interactive Transmitting and receiving Data 3 (-)

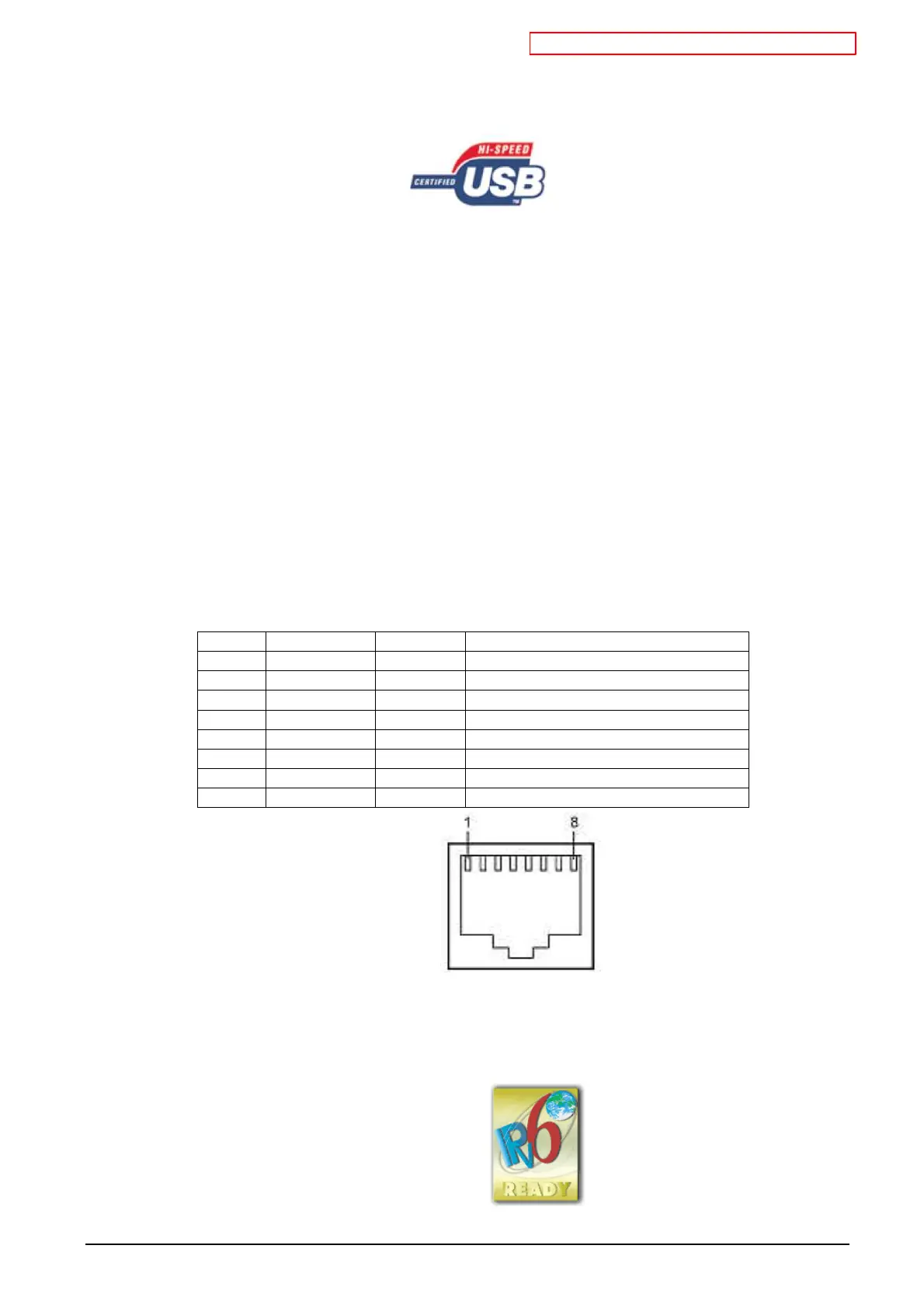

Connector Pin Layout
Cable
Category 5, UTP RJ45(Non-shielded twist pair cable with RJ-45 conector)
IPv6 Ready Logo Phase2
RJ45Connector
