Replacing consumables and maintenance unit
- 58 -
IndexTroubleshooting
1
2
Maintenance
4

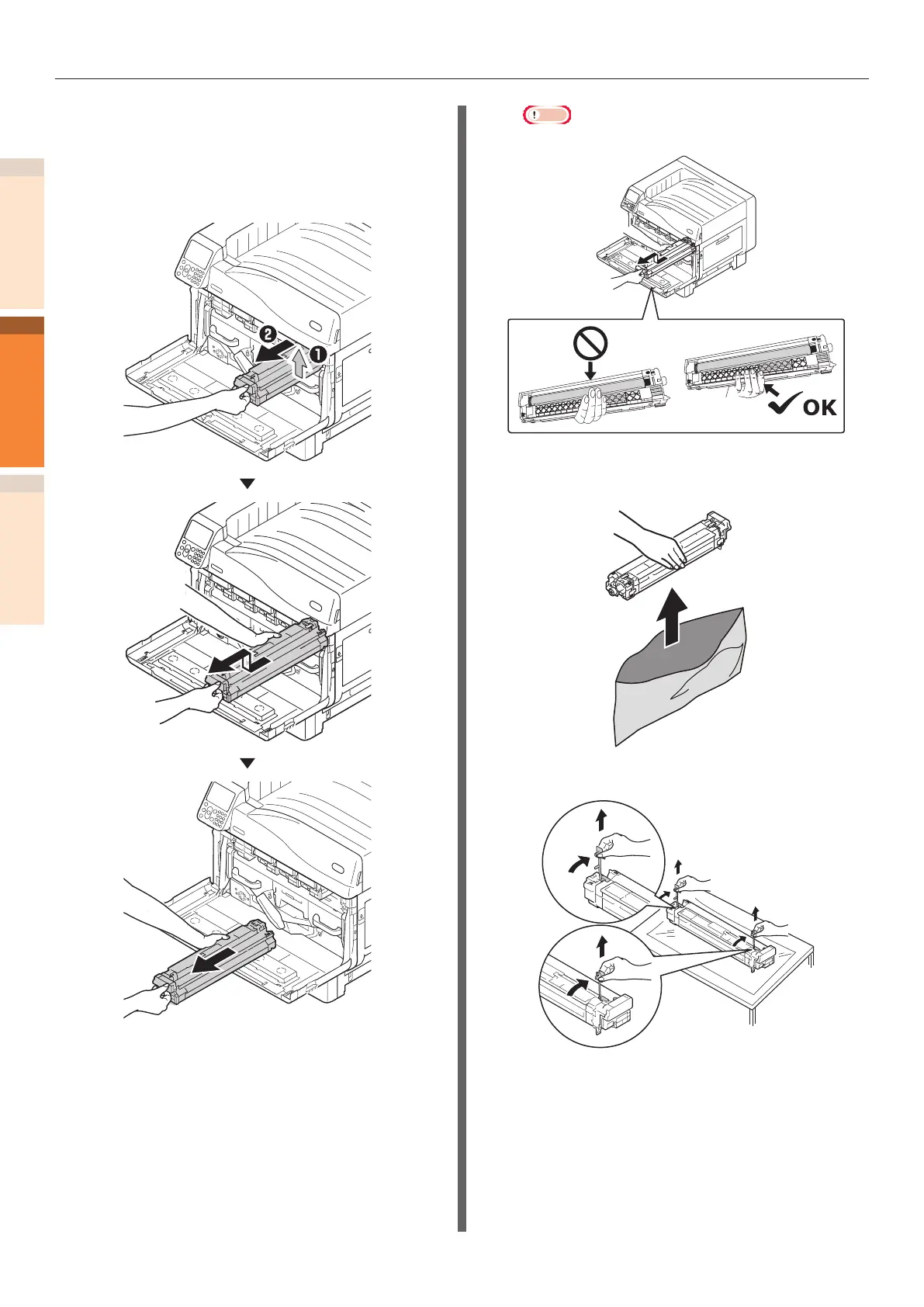

Gently lift the handle (blue) upwards,
and remove the image drum taking care
that your hand does not touch the drum
on the lower side (green cylindrical
section).
Note
z
Ensure not to touch or damage the drum
5
Remove the new image drum from its
packaging.
6
Remove the stopper (orange).
To Next Page
