3. Attach the connector to the computer.
For a Windows computer, insert the 8-pin mini-DIN end of the interface cable into
the 9-pin DB9 Connector cable adapter. Insert the 9-pin end into the COM1 or
COM2 port on the computer and tighten the screws. If the available port on your
computer is 25-pin, you must use the 8-pin-to-25-pin adapter.
For a Mac OS computer, connect the 8-pin mini-DIN plug directly into the serial port
of the computer.
NOTE: For Mac OS computers with a USB port (for example, an iMac), you need an
adapter to connect the DTP32 to your computer. For information on supported
adapters, see the X-Rite, Inc. web site (www.x-rite.com).

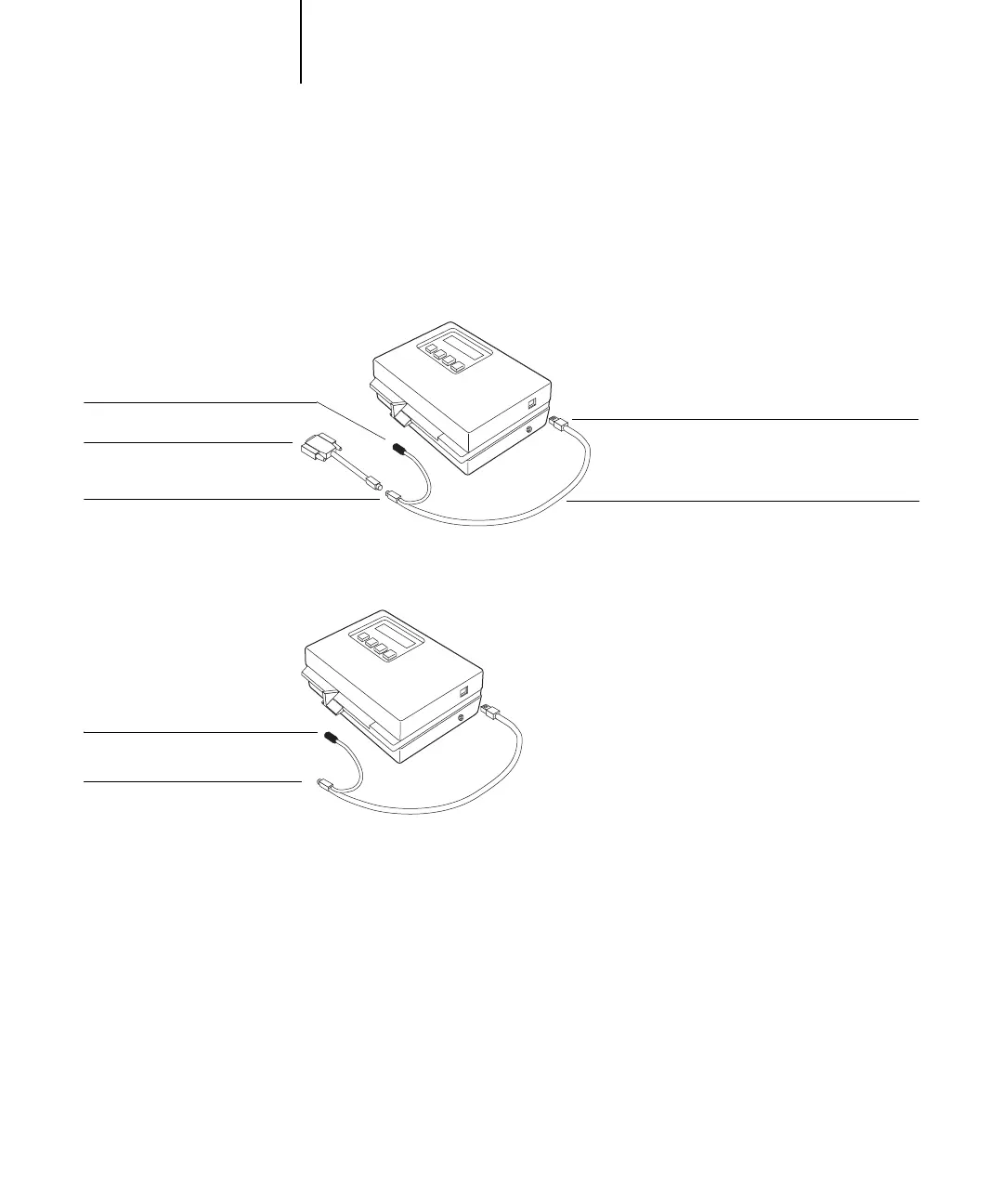

Square connecto
Unused connector
Connect to computer
Interface cable
Connect to adapter
Unused connector
Connect to serial port
