4.REPLACEMENT OF PARTS

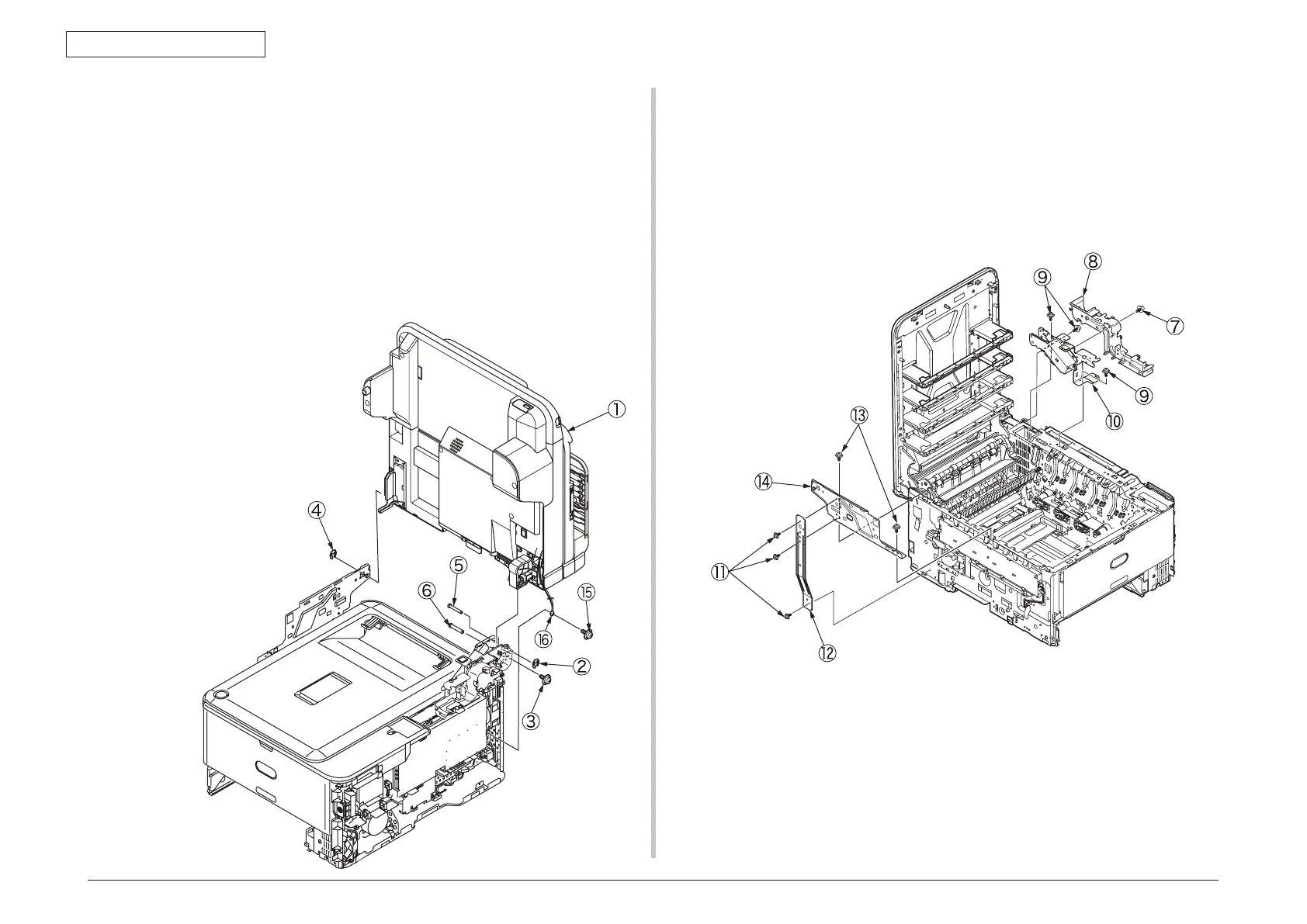

4.2.7 Scanner unit
(1) Remove the left side cover, the right side cover, the CU/PU board and the front
cover. (See 4.2.3, 4.2.4, 4.2.5 (6) and 4.2.6.)
(2) Remove the cover-hinge-R, the cover-stay-L and Remove the cover-hinge-RB. (See
4.2.6 (2), (3), (4))
(3) Remove the screw
⑮
to detache the FG cable
⑯
from the printer's mainbody.
(4) Open the scanner
①
and remove the E-shaped retainer ring
②
and screw
③
.
(5) Remove the E-shaped retainer ring
④
.
(6) Remove the shaft-stopper (hinge)
⑤
and remove the shaft-guide (hinge)
⑥
.
(7) Remove the scanner
①
.
(8) Remove the screw
⑦
and remove the guide cable
⑧
. Remove the three screws
⑨
and remove the hinge Assy FB
⑩
.
(9) Remove the three screws
⑪
and remove the plate support R
⑫
. Remove the two
screws
⑬
and remove plate support stay L
⑭
.
To Next Page
