44952001TH Rev.2

4-38

Oki Data CONFIDENTIAL

4.REPLACEMENT OF PARTS

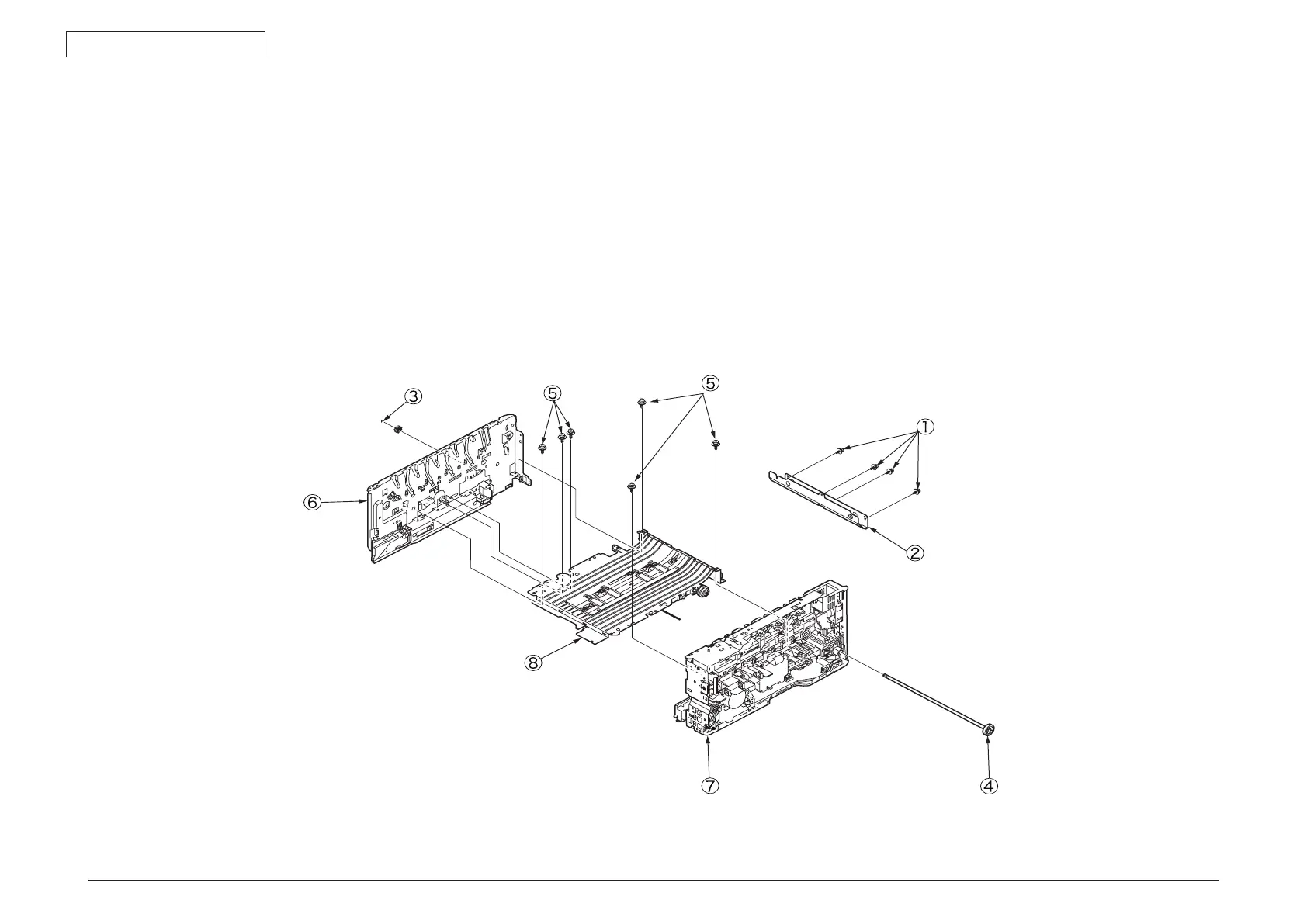

4.2.19 Side-L assembly, side-R assembly and base

assembly

(1) Remove the left side cover, the right side cover, the rear cover, the top cover

assembly, the operator panel assembly, the feederassembly, the guide-ejection

assembly and the registration assembly.

(2 Remove the four (silver-colored) screws

①

to remove the plate-bottom

②

(3) Remove the E-shaped retainer ring

③

and then the shaft

④

(4) Remove the six (silver-colored) screws

⑤

to detach the side-L assembly

⑥

, the

side-R assembly

⑦

and the base assembly

⑧
