Oki MC562w - Cable (ADF-Rev SNS); Guide-A-Sub; Frame-Assy-Separator; Spring-Separator; Rubber-Friction

44952001TH Rev.2
4-19
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

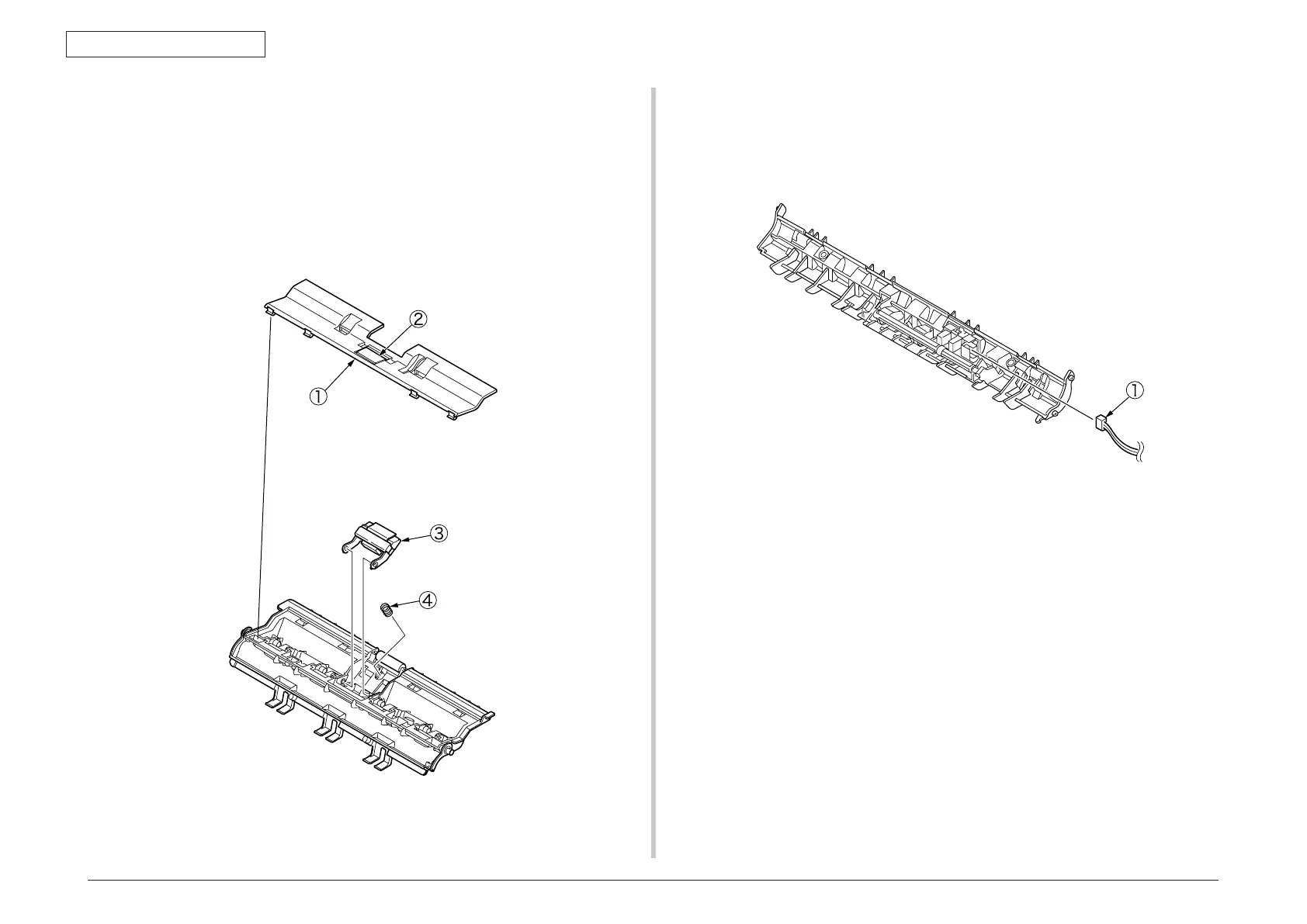

4.2.7.7 Guide-A-sub / Frame-assy-separator / Spring-separator /
Rubber-friction
(1) Remove the guide-A-sub
①with
rubber-friction
②
.
(2) Remove the frame-assy separator
③
and spring-separator
④
.
Note! • Ifchangethe
②
… Remove the
②
, then degrease the
①
and affix the
②
.
 • Ifchangethe
①
… Remove the
①
and
②
together.
4.2.7.8 Cable (ADF-Rev SNS)
(1) Remove the cable
①
.
