1. CONFIGURATION

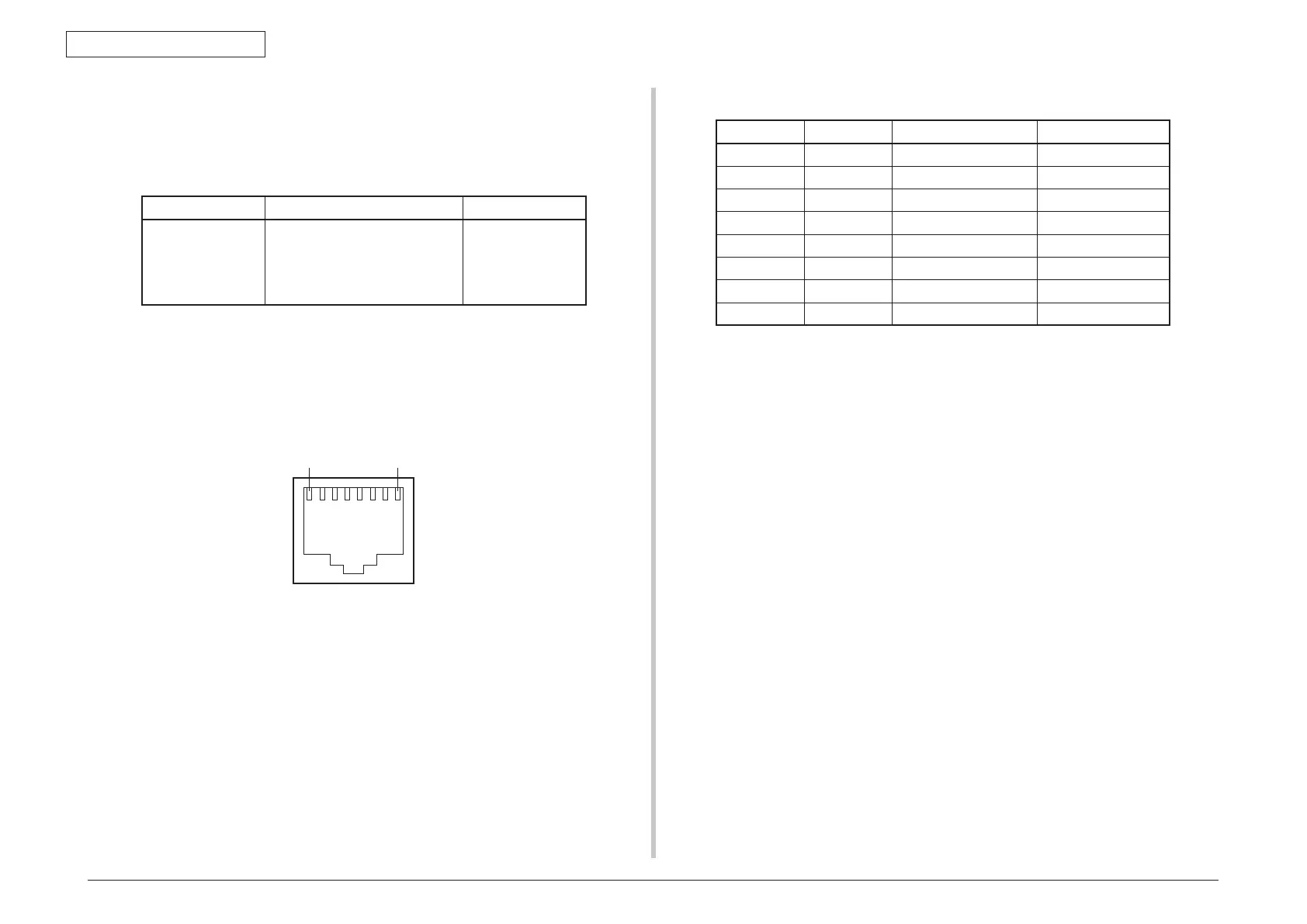

1.5.2 Network Interface Specification
1.5.2.1 Outline of Network Interface
Table 1.5.2 Basic Specification of Network Interface
Protocol Family Network Protocol Application
TCP/IP IPv4, IPv6, TCP, ICMP, UDP LPR, RAW
SNMPv1
DHCP/BOOTP
HTTP
1.5.2.2 Network Interface Connector and Cable
(1) Connector
100 BASE-TX/10 BASE-T (automatic switch, no simultaneous use)
18
1.5.2.3 Network Interface Signal
Pin No. Singles Single Direction Functions
1 TXD+ FROM PRINTER SendData+
2 TXD- FROM PRINTER Send Data -
3 RXD+ TO PRINTER ReceivedData+
4 - - Unassigned
5 - - Unassigned
6 RXD- TO PRINTER Received Data -
7 - - Unassigned
8 - - Unassigned
Connector pin arrangement
(2) Cable
Unshielded twist pair cable with RJ-45 connector (Category 5 is recommended.)
