44952001TH Rev.2

4-13

Oki Data CONFIDENTIAL

4.REPLACEMENT OF PARTS

4.2.7.2 ADF-unit

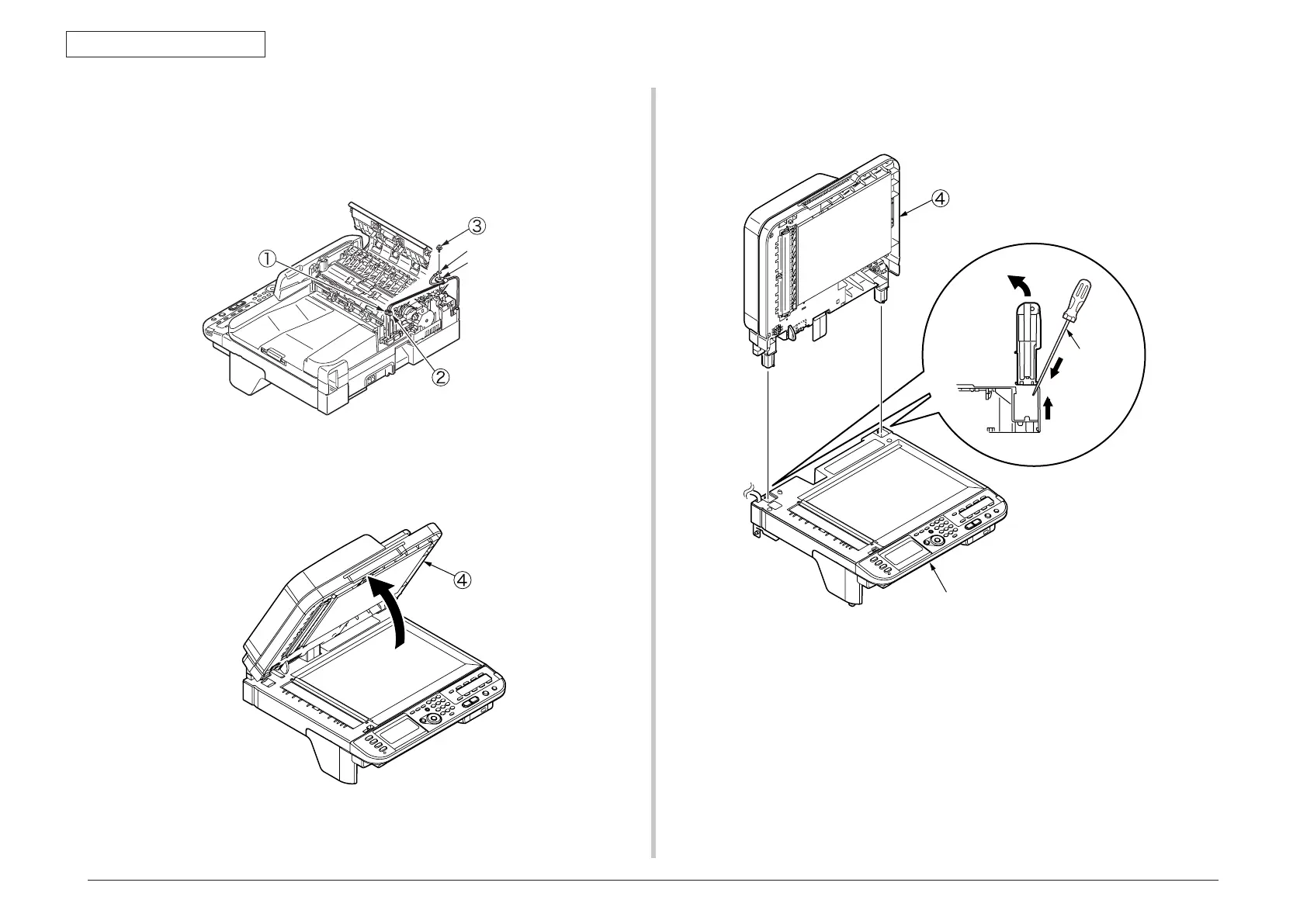

(1) Remove the cover-ADF-R-assy. (See 4.2.7.1)

(2) Detach a connector

①

and

②

from the ADF board, and remove the screw

③

remove the FG cable.

FG cable

Clamp cable

(3) Remove the clamp cable and pull the cables out of the hinge, and Open the ADF-

unit

④

(4) Remove the ADF-unit

④

by insert the screwdriver to gap between ADF-unit

④

and

ﬂatbed-unit.

Flatbed-unit

Screwdriver (-)
